30294000 - Ariens ZT 3400 Series Hydro-Gear Transmission 30294000 - ZT3400 Series Parts Diagram

ZT 3400 Series Hydro-Gear Transmission

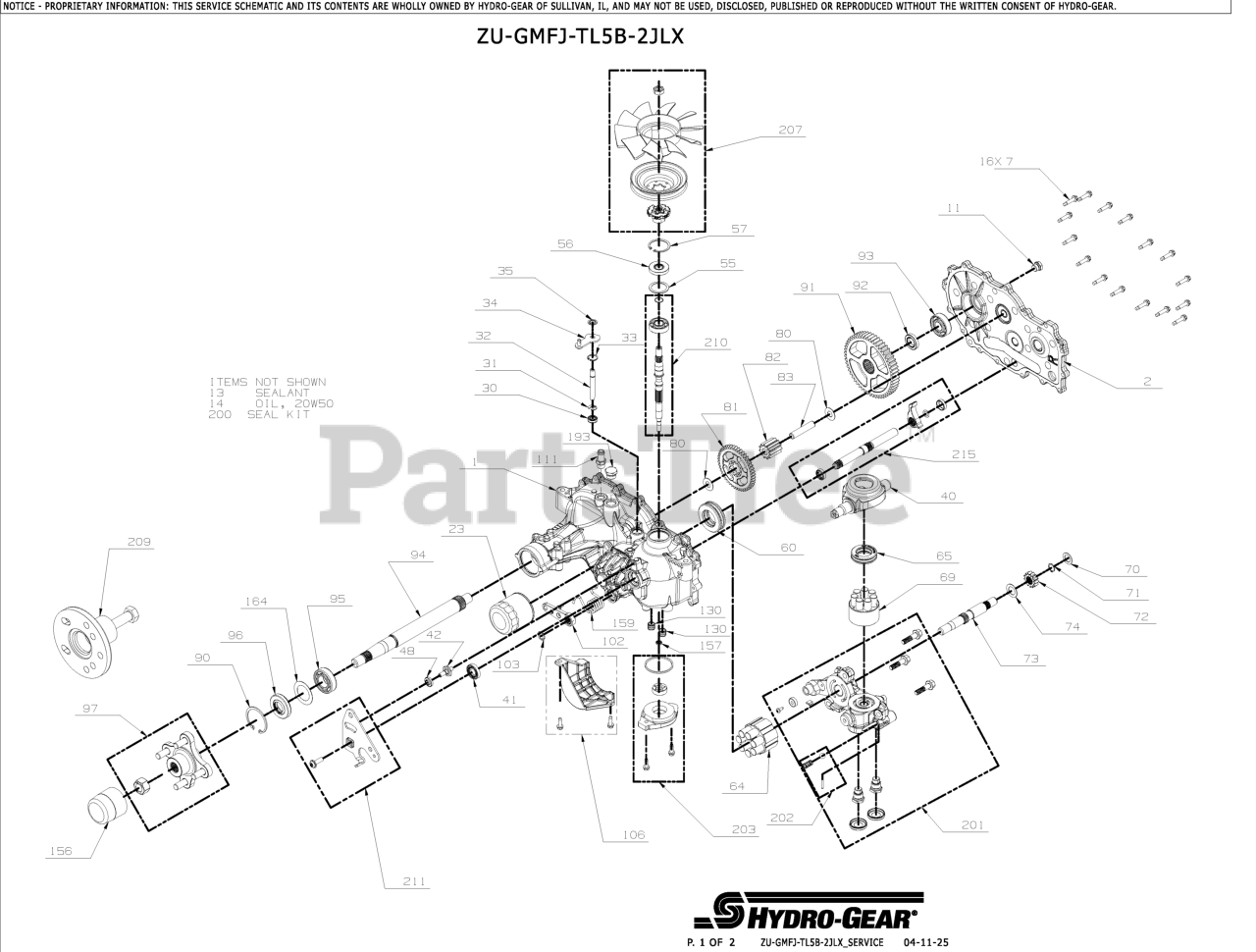

30294000 - ZT3400 Series Parts Diagram

  • Title

1

KIT MAIN HOUSING RH, CHARGE CONTROL

Note: HG 73244

$

$

Not available

2

KIT, COVER SIDE, RH

Note: HG 73583

$

$

Not available

7

Ariens 27105900

SCREW,HEX WASHER 1/4-20X1.125

$2.99

$

Usually ships in 4-12 days

0

11

Ariens 21500049

PLUG, EXTERNAL HEX VENT 9/16-18

$6.49

$

Usually ships in 4-12 days

0

13

Ariens 21543771

SEALANT TUBE 10.1OZ.

$171.99

$

In Stock, only 1 left!

0

14

Ariens 00057100

FLUID, HYDRO 15W50 QT

Note: Recommended Transmission Oil.<BR/> Approximately 72oz

$14.99

$

In Stock, Qty 20+

0

14

Ariens 00058100

FLUID, HYDRO 20W50 QT

Note: Optional <BR/> Transmission Oil. Approximately 72 oz

$14.99

$

Usually ships in 4-12 days

0

23

Ariens 21544900

FILTER, HYDRO-GEAR 2800 TRANS
(Superseded to 21545100)

$42.99

$

Usually ships in 4-12 days

0

30

Ariens 21500013

SEAL, LIP .375 X .75 X .25

$5.49

$

In Stock, only 1 left!

0

31

Ariens 08622500

RING. RETAINING

$4.49

$

In Stock, only 1 left!

0

32

ROD, BYPASS .375 x 2.88

Note: HG 52136

$

$

Not available

33

Ariens 21543846

RING, RET .750

$

$

Not available

34

Ariens 21544046

ARM, BYPASS

$16.99

$

Usually ships in 4-12 days

0

35

Ariens 21543848

RING, RTNG .

$4.49

$

Usually ships in 4-12 days

0

40

Ariens 21543783

TRUNNION, SWASHPLATE

$73.99

$

Usually ships in 4-12 days

0

41

Ariens 21543809

SEAL, LIP 18X32X7

$9.99

$

Usually ships in 4-12 days

0

42

Ariens 08611000

STUD. SHORT 5/16-24

$

$

Not available

48

SPACER

Note: HG 51846

$

$

Not available

55

Ariens 21543773

WASHER 1.23X1.56X.04

$6.49

$

In Stock, only 3 left!

0

56

SEAL, LIP 17 X 40 X 7 HNBR

Note: HG 55486

$

$

Not available

57

Ariens 21543741

RING, RET 1.56 INT

$7.49

$

Usually ships in 4-12 days

0

60

Ariens 21548902

HG THRUST BEARING (51462)

$32.99

$

Usually ships in 4-12 days

0

64

Ariens 21548904

HG 16CC CYLINDER BLOCK (71579)

$78.99

$

Usually ships in 4-12 days

0

65

Ariens 21548903

HG THRUST BLOCK (53502)

$

$

Not available

69

Ariens 21548905

HG SEVEN PISTON BLOCK (71971)

$87.99

$

Usually ships in 4-12 days

0

70

Ariens 21543708

WASHER .63X1.0X.05

$3.99

$

Usually ships in 4-12 days

0

71

Ariens 21543704

RING, RET 62 EXT

$1.99

$

Usually ships in 4-12 days

0

72

GEAR, 13T

Note: HG 52342

$

$

Not available

73

SHAFT, MOTOR

Note: HG 52150

$

$

Not available

74

Ariens 21543788

WASHER .71 X 1.16 X .04

$

$

Not available

80

Ariens 21543724

WASHER .5X1.0X.032

$

$

Not available

81

GEAR, 46T

Note: HG 52343

$

$

Not available

82

GEAR, 11T (STEEL)

Note: HG 52586

$

$

Not available

83

PIN, JACKSHAFT

Note: HG 55710

$

$

Not available

90

Ariens 08616500

RING, RETAINING

$9.99

$

Usually ships in 4-12 days

0

91

Ariens 21500035

GEAR, 54T

$70.99

$

Usually ships in 4-12 days

0

92

SPACER, .750 X 1.320 X .257

Note: HG 53336

$

$

Not available

93

KIT, BEARING

Note: HG 73594

$

$

Not available

94

Ariens 21500040

SHAFT AXLE

$128.99

$

Usually ships in 4-12 days

0

95

Ariens 08614000

BEARING, BALL 25.4 X 52 X 15

$25.99

$

In Stock, only 2 left!

0

96

Ariens 08614300

SEAL, LIP

$18.99

$

In Stock, only 2 left!

0

97

Ariens 21544061

KIT, HUB 4 BOLT

$96.99

$

Usually ships in 4-12 days

0

102

Ariens 21544037

BRAKE ARM HG 71957

$26.99

$

Usually ships in 4-12 days

0

103

Ariens 21544007

CLIP,BRAKE ARM HYDROGEAR 52027

$6.49

$

In Stock, only 2 left!

0

106

KIT, FILTER GUARD

Note: HG 73041

$

$

Not available

111

Ariens 21544058

KIT, FITTING 1/2 BEADED 9/16

$38.99

$

Usually ships in 4-12 days

0

130

TUBE, CHARGE TRIPLE O-RING

Note: HG 54501

$

$

Not available

156

Ariens 21500038

CAP, AXLE

$21.99

$

Usually ships in 4-12 days

0

157

KIT, GEROTOR SEAL

Note: HG 72291

$

$

Not available

159

Ariens 21544052

SPRING, TORSION CCW

$11.99

$

Usually ships in 4-12 days

0

164

WASHER, 1.355 x 2.035 x .021 FLAT

Note: HG 53514

$

$

Not available

193

PLUG, 3/4-16

Note: HG 54974

$

$

Not available

200

21544034

HG SEAL KIT (71976)

$

$

Not available

201

KIT, CENTER SECTION RH CHARGE

Note: HG 73579

$

$

Not available

202

KIT, CHARGE RELIEF

Note: HG 71436

$

$

Not available

203

21544071

KIT, CHARGE PUMP

Note:

$

$

Not available

207

21544079

KIT, FAN/PULLEY

$

$

Not available

209

Ariens 21544008

HUB PULLER 5 BLT HYDGEAR 72320

Note: Optional Service Tool

$461.99

$

Usually ships in 4-12 days

0

210

Ariens 21544039

INPUT SHAFT HG 71978

Note:

$

$

Not available

211

KIT, ARM, CONTROL

Note: HG 71634

$

$

Not available

215

KIT, OUTBOARD, RH ROT A / LH ROT B

Note: HG 73118

$

$

Not available
