30297 - Toro 52" ProLine Walk-Behind Mower, Hydro Drive, 17hp (SN: 210000001 - 210005000) (2001) CYLINDER/CRANKCASE KAWASAKI FH500V-AS30 Parts Diagram

52" ProLine Walk-Behind Mower, Hydro Drive, 17hp

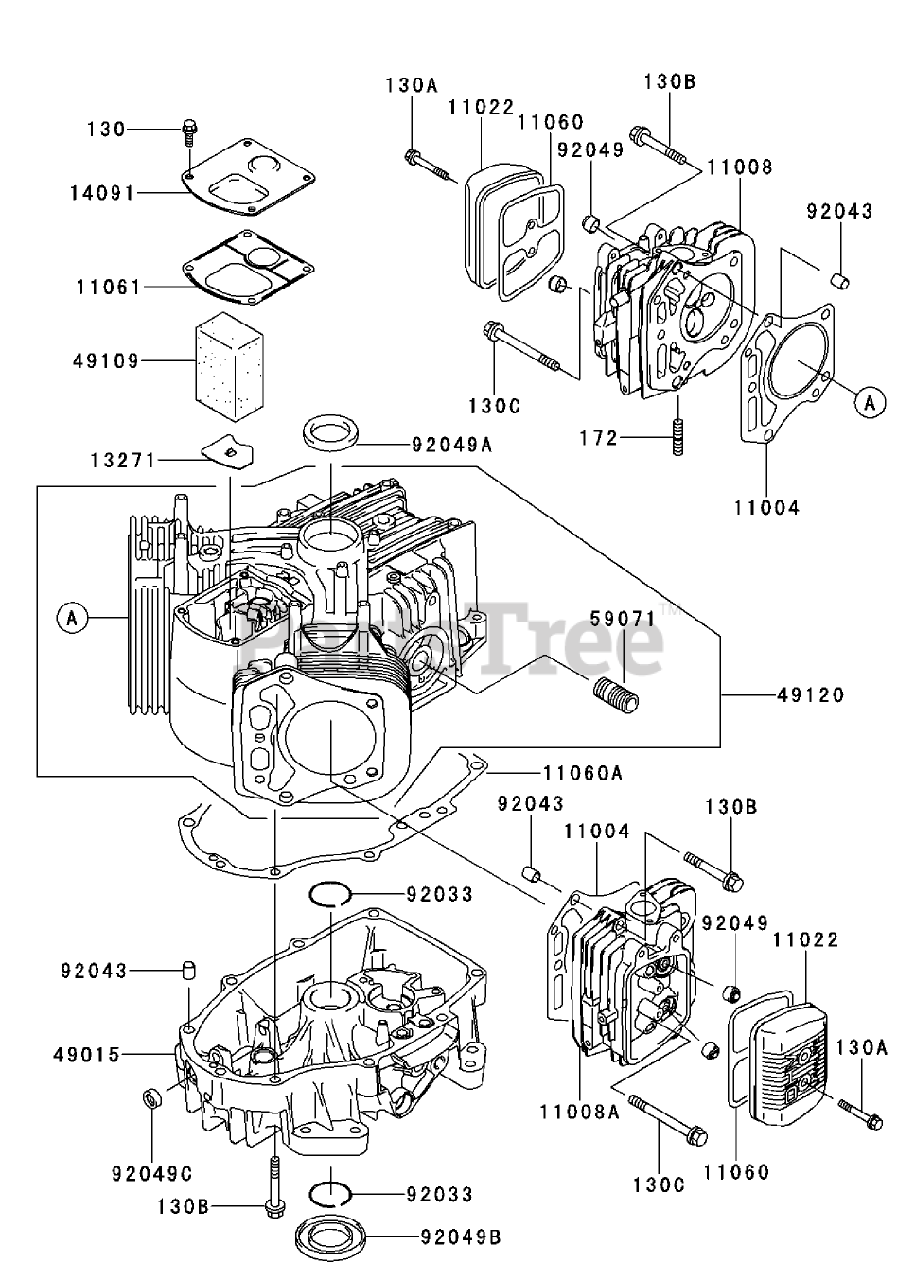

CYLINDER/CRANKCASE KAWASAKI FH500V-AS30 Parts Diagram

  • Title

11004

Kawasaki 11004-7005

Gasket-Head
(Superseded to 11004-7015)

$10.99

$

In Stock, Qty 20+

0

11008

Kawasaki 11008-6042

Head-Cylinder
(Superseded to 11008-6043)

$273.99

$

In Stock, only 2 left!

0

11008A

Kawasaki 11008-7009

Head-Cylinder
(Superseded to 11008-7020)

$273.99

$

In Stock, only 1 left!

0

11022

Toro 11022-7003

Case-Rocker

$

$

Currently unavailable

11060

Kawasaki 11060-7001

GASKET-CASE, ROCKER

$6.99

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-7008

GASKET-COVER, CRANKCASE
(Superseded to 11060-7007)

$6.99

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7001

GASKET-BREATHER
(Superseded to 99996-6104)

$18.99

$

In Stock, Qty 15

0

13271

Kawasaki 13271-7016

Plate

$2.49

$

In Stock, only 2 left!

0

14091

Toro 14091-7006

Cover

$

$

Currently unavailable

49015

Toro 49015-6215

Cover-Crankcase

$

$

Currently unavailable

49109

Toro 49109-7002

Element-Breather

$

$

Currently unavailable

49120

Toro 49120-6132

Crankcase-Comp

$

$

Currently unavailable

59071

Kawasaki 59071-2079

Joint

$6.49

$

In Stock, Qty 9

0

92033

Kawasaki 92033-7003

Ring-Snap

$0.99

$

In Stock, Qty 20+

0

92043

Kawasaki 92043-7001

Pin

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-7001

SEAL-OIL, R V C2 (6X11X10.2)

$8.49

$

In Stock, Qty 20+

0

92049A

Kawasaki 92049-7002

Seal-Oil
(Superseded to 92049-7010)

$3.49

$

In Stock, Qty 11

0

92049B

Kawasaki 92049-7004

Seal-Oil
(Superseded to 92049-7011)

$5.99

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7005

SEAL-OIL, S O (8X14X5 H S)
(Superseded to 920497019)

$2.49

$

In Stock, Qty 20+

0

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0640

Bolt-Flanged (6X40)
(Superseded to 130AA0640)

$0.99

$

In Stock, Qty 14

0

130B

Toro 130T0850

Bolt-Flanged (8X50)

$

$

Currently unavailable

130C

Kawasaki 130T0875

Bolt-Flanged (8X75)
(Superseded to 130CA0875)

$2.49

$

In Stock, Qty 11

0

172

Toro 172G0818

Bolt-Stud (8X18)

$

$

Currently unavailable
