30299 TE - Toro 112cm ProLine Walk-Behind Mower, T-Bar, Hydro Drive, 15hp (SN: 250000001 - 250999999) (2005) SPINDLE AND IDLER ASSEMBLY Parts Diagram

112cm ProLine Walk-Behind Mower, T-Bar, Hydro Drive, 15hp

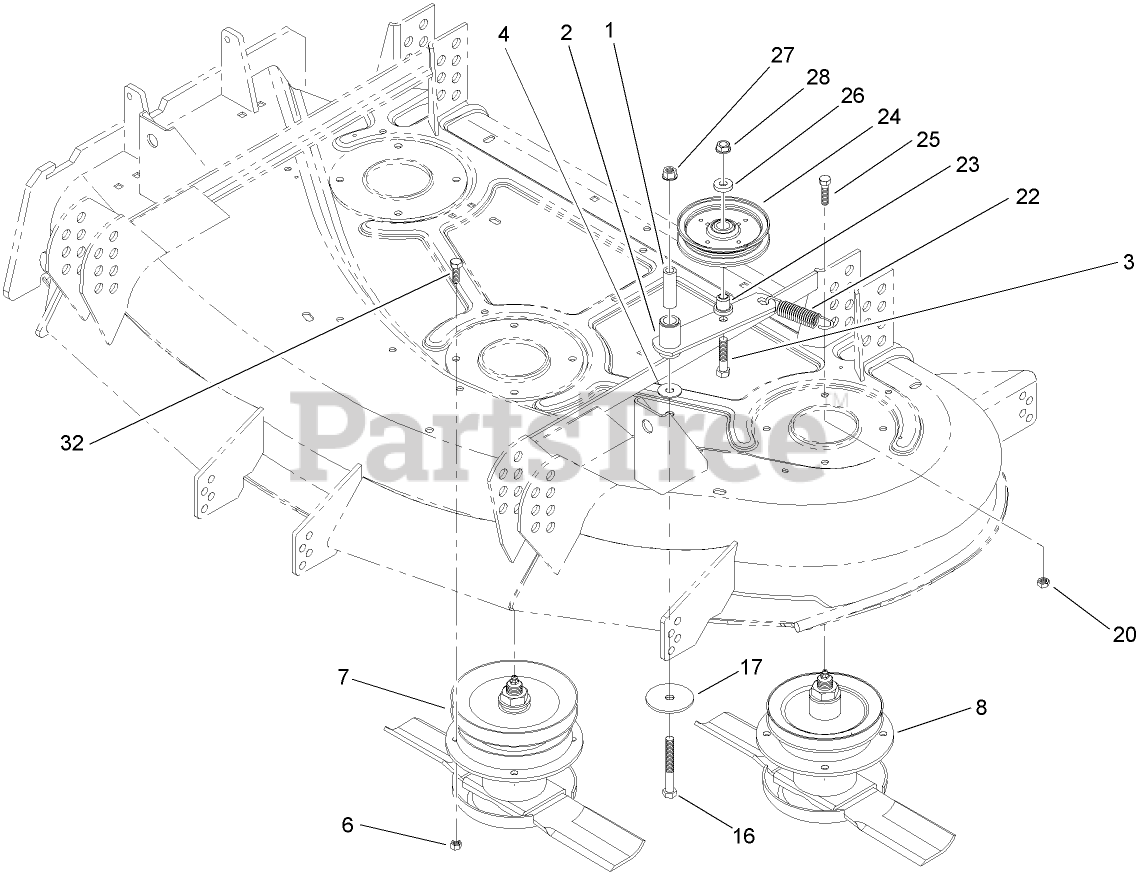

SPINDLE AND IDLER ASSEMBLY Parts Diagram

  • Title

1

Toro 79-2760

SPACER

$

$

Not available

2

Toro 92-1657

IDLER ARM ASM

$

$

Not available

3

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 7

0

4

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

6

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

7

Toro 67-7600

Spindle Housing ASM

$735.99

$

Usually ships in 3-6 days

0

8

Toro 67-7660

SPINDLE HOUSING ASM

$984.99

$

Usually ships in 3-6 days

0

16

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

17

Toro 20-9530

WASHER-END

$39.99

$

Usually ships in 3-6 days

0

20

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

22

Toro 54-2730

Spring-Extension

$23.99

$

In Stock, only 1 left!

0

23

Toro 65-5950

BUSHING-PULLEY

$5.99

$

In Stock, Qty 9

0

24

Toro 65-5940

PULLEY-IDLER

$40.99

$

In Stock, only 2 left!

0

25

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

26

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 8

0

27

Toro 32128-19

NUT-HF

$1.99

$

In Stock, Qty 20+

0

28

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

32

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
