30299 TE - Toro 112cm ProLine Walk-Behind Mower, T-Bar, Hydro Drive, 15hp (SN: 260000001 - 260999999) (2006) AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CV15S-41620 Parts Diagram

112cm ProLine Walk-Behind Mower, T-Bar, Hydro Drive, 15hp

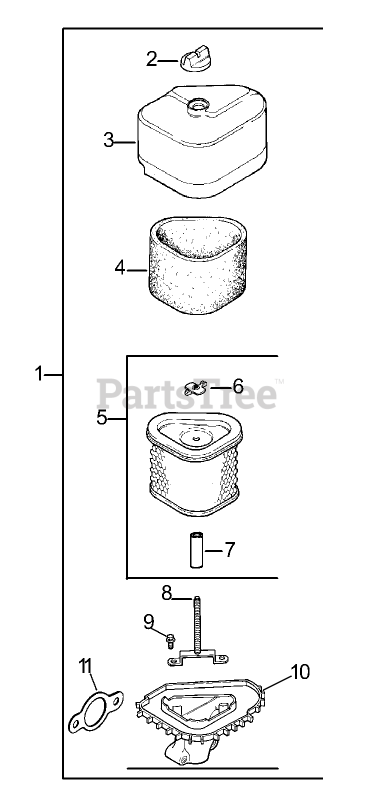

AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CV15S-41620 Parts Diagram

  • Title

1

Kohler 12 743 04-S

Kit, air cleaner (Incl. Ref. #2-11)

Note: Obtain from Kohler.

$

$

Not available

2

Kohler 25 341 03-S

Knob-Cover

Note: Obtain from Kohler.

$8.49

$

In Stock, Qty 5

0

3

Kohler 12 096 44-S

Cover-Cleaner, Air

Note: Obtain from Kohler.

$

$

Not available

4

Kohler 12 083 12-S

Element-Precleaner

Note: Obtain from Kohler.

$6.99

$

In Stock, Qty 10

0

5

Kohler 12 083 10-S

Element, air cleaner (Incl. Ref. #6)

Note: Obtain from Kohler.

$19.99

$

In Stock, only 3 left!

0

6

Kohler 12 100 01-S

NUT-WING

Note: Obtain from Kohler.

$3.99

$

In Stock, Qty 12

0

7

Kohler 12 032 11-S

Seal

Note: Obtain from Kohler.

$2.99

$

In Stock, only 1 left!

0

8

Kohler 12 072 04-S

Stud

Note: Obtain from Kohler.

$10.99

$

In Stock, Qty 5

0

9

Kohler 12 086 01-S

Screw

Note: Obtain from Kohler.

$4.49

$

In Stock, Qty 8

0

10

Kohler 12 094 14-S

Base-Cleaner, Air
(Superseded to 12 094 17-S)

Note: Obtain from Kohler.

$

$

Not available

11

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain from Kohler.

$2.49

$

In Stock, Qty 20+

0
