30299 TE - Toro 112cm ProLine Walk-Behind Mower, T-Bar, Hydro Drive, 15hp (SN: 260000001 - 260999999) (2006) BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CV15S-41620 Parts Diagram

112cm ProLine Walk-Behind Mower, T-Bar, Hydro Drive, 15hp

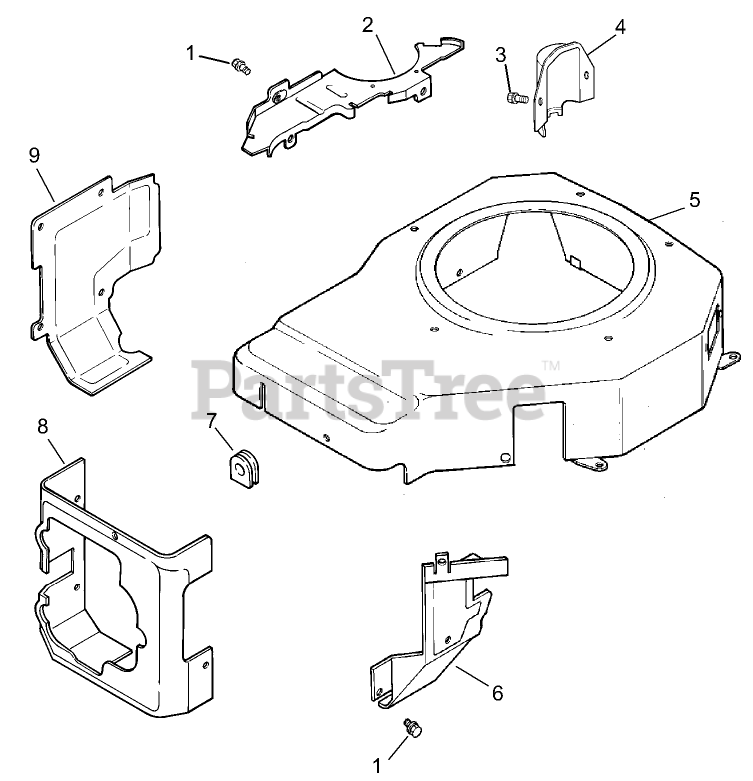

BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CV15S-41620 Parts Diagram

  • Title

1

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain from Kohler.

$4.49

$

In Stock, Qty 13

0

2

Kohler 12 146 07-S

Plate-Housing, Blower

Note: Obtain from Kohler.

$9.49

$

Usually ships in 2-5 days

0

3

Kohler M-550010-S

Screw-HF (M5x0.8x10)

Note: Obtain from Kohler.

$3.99

$

In Stock, only 3 left!

0

4

Kohler 24 096 05-S

Cover-Pinion

Note: Obtain from Kohler.

$12.99

$

Usually ships in 2-5 days

0

5

Kohler 12 027 55-S

Housing-Blower
(Superseded to 12 027 96-S)

Note: Obtain from Kohler.

$

$

Not available

6

Kohler 12 063 10-S

Baffle-Side, Intake

Note: Obtain from Kohler.

$45.99

$

Usually ships in 2-5 days

0

7

Kohler 12 313 03-S

Grommet-Spark Plug

Note: Obtain from Kohler.

$

$

Not available

8

Kohler 12 063 08-S

Baffle-Head, Cylinder

Note: Obtain from Kohler.

$48.99

$

Usually ships in 2-5 days

0

9

Kohler 12 063 19-S

Baffle-Cylinder

Note: Obtain from Kohler.

$

$

Not available
