30299 TE - Toro 112cm ProLine Walk-Behind Mower, T-Bar, Hydro Drive, 15hp (SN: 260000001 - 260999999) (2006) HEAD, VALVE AND BREATHER ASSEMBLY KOHLER CV15S-41620 Parts Diagram

112cm ProLine Walk-Behind Mower, T-Bar, Hydro Drive, 15hp

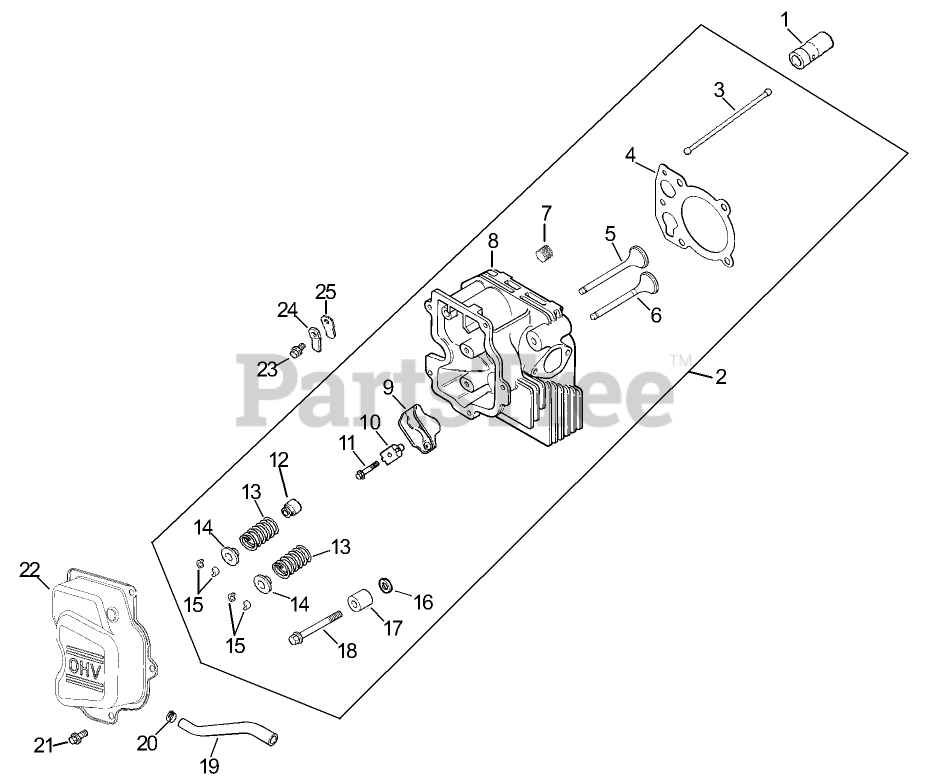

HEAD, VALVE AND BREATHER ASSEMBLY KOHLER CV15S-41620 Parts Diagram

  • Title

1

Kohler 25 351 01-S

Lifter-Valve
(Superseded to 25 351 11-S)

Note: Obtain from Kohler.

$32.99

$

In Stock, Qty 20+

0

2

Kohler 12 755 81-S

Kit, cylinder head (Incl. Ref. #3-18, carburetor gasket 12 041 01-S (2), air cleaner base gasket 12 041 02-S, & exhaust manifold gasket 12 041 03-S)

Note: Obtain from Kohler.

$487.99

$

Usually ships in 2-5 days

0

3

Kohler 12 411 04-S

Rod-Push

Note: Obtain from Kohler.

$6.49

$

In Stock, Qty 7

0

4

Kohler 12 041 10-S

Gasket-Head, Cylinder

Note: Obtain from Kohler.

$17.99

$

In Stock, Qty 5

0

5

Kohler 12 017 01-S

Valve-Intake (STD)

Note: Obtain from Kohler.

$41.99

$

In Stock, only 2 left!

0

6

Kohler 12 016 01-S

Valve-Exhaust (STD)

Note: Obtain from Kohler.

$70.99

$

Usually ships in 2-5 days

0

7

Kohler 25 139 60-S

PLUG-PIPE, COUNTERSUNK (1/8)

Note: Obtain from Kohler.

$3.49

$

In Stock, only 1 left!

0

8

Kohler 12 318 19-S

Head-Cylinder

Note: Obtain from Kohler.

$332.99

$

Usually ships in 2-5 days

0

9

Kohler 25 186 01-S

ARM-ROCKER

Note: Obtain from Kohler.

$12.99

$

In Stock, Qty 7

0

10

Kohler 12 599 03-S

Pivot-Arm, Rocker

Note: Obtain from Kohler.

$2.49

$

Usually ships in 2-5 days

0

11

Kohler M-640034-S

SCREW-FLANGE (M6X1.0X34)

Note: Obtain from Kohler.

$

$

Not available

12

Kohler 66 032 05-S

SEAL-STEM, VALVE
(Superseded to 25 032 14-S)

Note: Obtain from Kohler.

$11.99

$

In Stock, Qty 20+

0

13

Kohler 12 089 34-S

Spring-Valve

Note: Obtain from Kohler.

$10.99

$

In Stock, only 2 left!

0

14

Kohler 12 173 01-S

CAP-SPRING, VALVE
(Superseded to 25 173 28-S)

Note: Obtain from Kohler.

$8.49

$

In Stock, Qty 7

0

15

Kohler 12 755 03-S

RETAINER KIT

Note: Obtain from Kohler.

$5.99

$

In Stock, Qty 14

0

16

Kohler 12 468 05-S

Washer-Flat (1/2)

Note: Obtain from Kohler.

$2.99

$

In Stock, only 2 left!

0

17

Kohler 12 112 13-S

Spacer-Head Bolt (Exhaust Port)

Note: Obtain from Kohler.

$10.99

$

Usually ships in 2-5 days

0

18

Kohler 20 086 02-S

Screw-Flange, Hex (M10x1.5x37)

Note: Obtain from Kohler.

$3.99

$

In Stock, Qty 8

0

19

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain from Kohler.

$6.49

$

In Stock, Qty 16

0

20

Kohler 12 326 18-S

Hose-Breather
(Superseded to 12 326 30-S)

Note: Obtain from Kohler.

$29.99

$

In Stock, only 3 left!

0

21

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain from Kohler.

$4.99

$

In Stock, Qty 17

0

22

Kohler 12 096 47-S

Cover-Valve

Note: Obtain from Kohler.

$25.99

$

In Stock, only 2 left!

0

23

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain from Kohler.

$4.49

$

In Stock, Qty 5

0

24

Kohler 12 018 01-S

Retainer-Reed, Breather
(Superseded to 66 018 04-S)

Note: Obtain from Kohler.

$4.99

$

In Stock, Qty 17

0

25

Kohler 12 402 02-S

REED-BREATHER

Note: Obtain from Kohler.

$3.99

$

In Stock, only 2 left!

0

Kohler 12 017 02-S

Valve-Intake (.25)

Note: Obtain from Kohler.

$30.99

$

In Stock, only 1 left!

0

Kohler 12 017 02-S

Valve-Intake (.25)

Note: Not illustrated

$30.99

$

In Stock, only 1 left!

0

Kohler 12 016 02-S

Valve-Exhaust (.25)

Note: Not illustrated

$

$

Not available

Kohler 12 016 02-S

Valve-Exhaust (.25)

Note: Obtain from Kohler.

$

$

Not available

Kohler 12 041 01-S

Gasket-Carburetor

Note: Obtain from Kohler.

$2.49

$

In Stock, Qty 20+

0

Kohler 12 041 01-S

Gasket-Carburetor

Note: Not illustrated

$2.49

$

In Stock, Qty 20+

0

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Not illustrated

$2.99

$

In Stock, Qty 20+

0

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain from Kohler.

$2.99

$

In Stock, Qty 20+

0

Kohler 12 041 03-S

Gasket-Manifold, Exhaust

Note: Not illustrated

$7.49

$

In Stock, Qty 20+

0

Kohler 12 041 03-S

Gasket-Manifold, Exhaust

Note: Obtain from Kohler.

$7.49

$

In Stock, Qty 20+

0
