30299 TE - Toro 112cm ProLine Walk-Behind Mower, T-Bar, Hydro Drive, 15hp (SN: 260000001 - 260999999) (2006) STARTING SYSTEM ASSEMBLY KOHLER CV15S-41620 Parts Diagram

112cm ProLine Walk-Behind Mower, T-Bar, Hydro Drive, 15hp

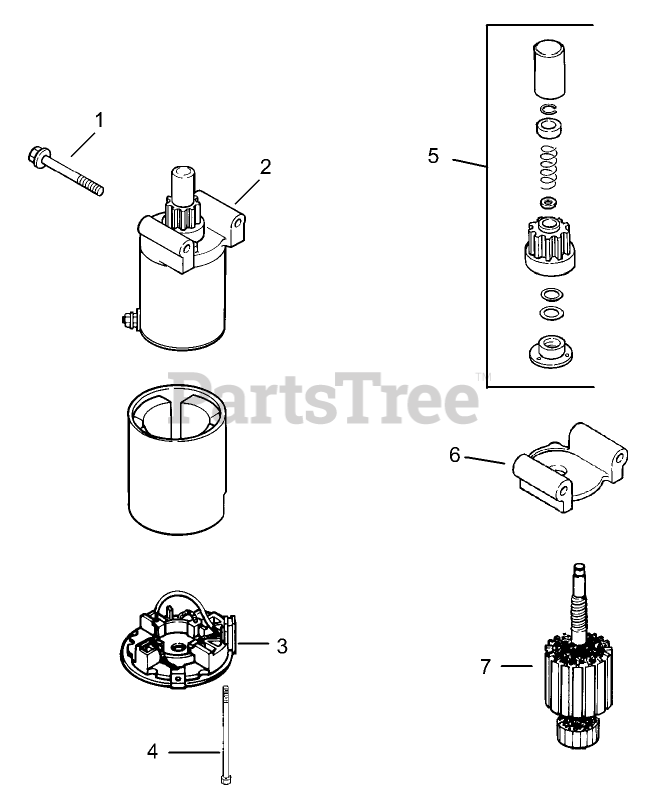

STARTING SYSTEM ASSEMBLY KOHLER CV15S-41620 Parts Diagram

  • Title

1

Kohler M-839070-S

Screw-HF (M8x1.25x70)

Note: Obtain from Kohler.

$10.99

$

Usually ships in 2-5 days

0

2

Kohler 12 098 21-S

Starter assembly (Incl. Ref. #3-8)

Note: Obtain from Kohler.

$389.99

$

Usually ships in 2-5 days

0

3

Kohler 12 227 14-S

Cap ASM

Note: Obtain from Kohler.

$

$

Not available

4

Kohler 12 211 01-S

Bolt

Note: Obtain from Kohler.

$

$

Not available

5

Kohler 12 755 53-S

Drive Kit

Note: Obtain from Kohler.

$215.99

$

Usually ships in 2-5 days

0

6

Kohler 12 227 19-S

Cap-End, Drive

Note: Obtain from Kohler.

$

$

Not available

7

Kohler 12 170 05-S

Armature

Note: Obtain from Kohler.

$

$

Not available
