303 (190-303-100) - Cub Cadet 40" Snow Thrower Attachment att Auger Gear Box Parts Diagram

40" Snow Thrower Attachment

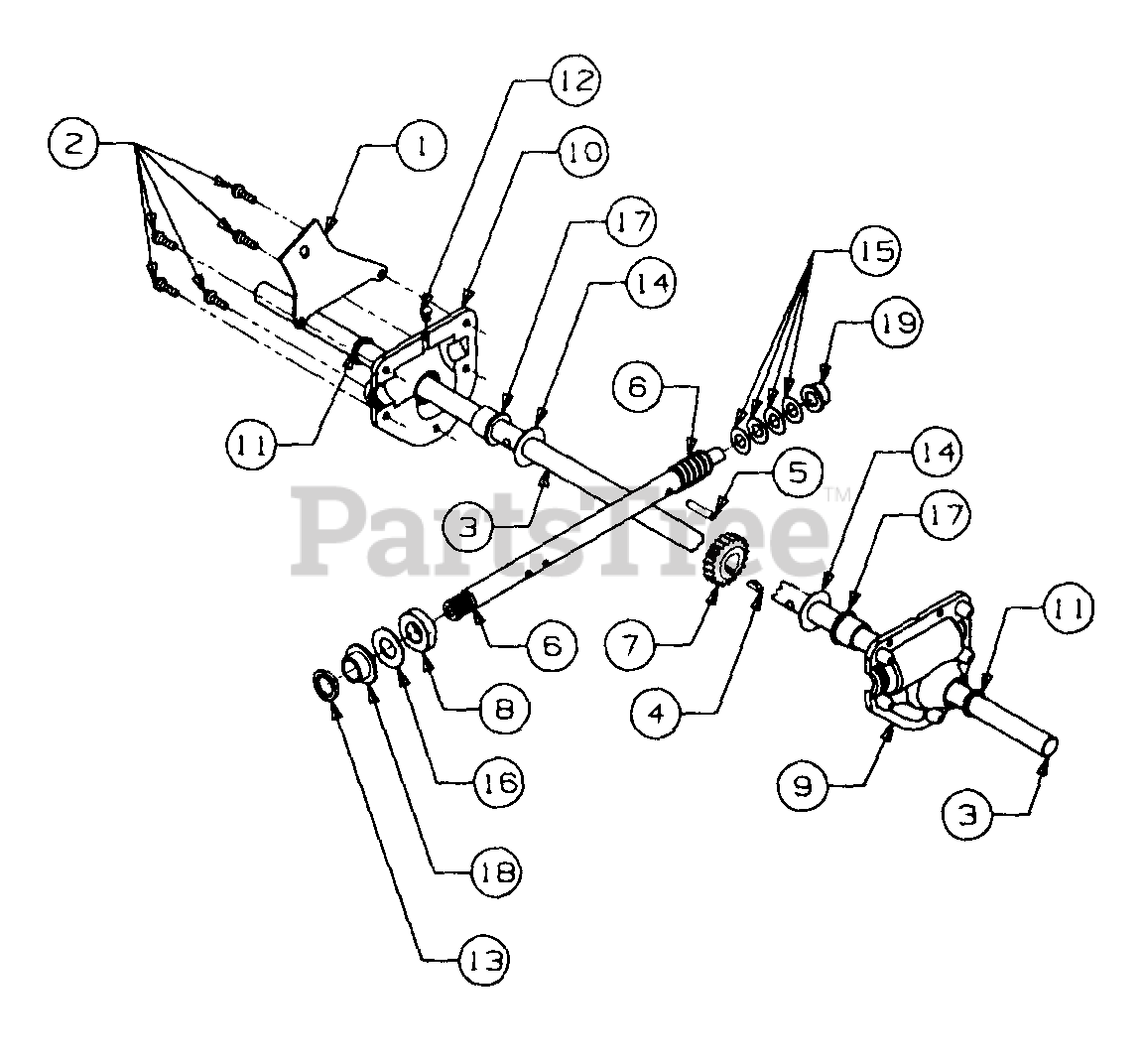

Auger Gear Box Parts Diagram

  • Title

Cub Cadet 618-0161

Auger Gear Assy, Complete
(Superseded to 918-0161A)

$

$

Not available

1

Cub Cadet 703-2733

Plate, Housing Brace
(Superseded to 703-2733A)

Variations

Cub Cadet 703-2733-0637

USE 703-2733A-0637 PLATE-HOUS - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2733-0716

USE 703-2733A-0716 PLATE-HOUS - CUB YELLOW-99 (0716)

$18.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2733-0498

HOUSING PLATE - OLD CUB YELLOW (0498)

$

$

Not available

$15.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0642

Screw, Hex Wash TT-Tap, 1/4-20 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 711-1033

Shaft, Auger
(Superseded to 911-1033)

$

$

Not available

4

Cub Cadet 714-0161

Key, Hi-Pro,3/16 X 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 12

0

5

Cub Cadet 715-0143

Pin, Spirol Spring, 1/4 Dia X 1.25 Lg

$4.49

$

In Stock, Qty 15

0

6

Cub Cadet 717-0526

Shaft,Impeller
(Superseded to 717P0526)

$101.99

$

In Stock, only 2 left!

0

7

Cub Cadet 717-0528

Gear, Worm
(Superseded to 917-04861)

$40.99

$

In Stock, Qty 20+

0

8

Cub Cadet 718-0186

Collar, Thrust

$7.99

$

In Stock, only 2 left!

0

9

Cub Cadet 719-0319

Housing, RH Auger Gear
(Superseded to 918-0123A)

$48.99

$

In Stock, Qty 14

0

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz tube

$70.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 719-0320

Housing, LH Auger Gear
(Superseded to 918-0124A)

$48.99

$

In Stock, Qty 16

0

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz tube

$70.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 721-0179

Seal, Oil

$7.99

$

In Stock, only 2 left!

0

12

Cub Cadet 721-0325

Plug

$4.49

$

In Stock, only 1 left!

0

13

Cub Cadet 721-0327

Seal, Oil .75 X 1.131 X .188 Thk

$6.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0351

Washer, Flat, .760 X 1.50 X .030 Thk

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0369

Washer, Flat, .580 X 1.00 X .020 Thk

$4.49

$

In Stock, Qty 6

0

16

Cub Cadet 736-0445

Washer, Flat, .760 X 1.50 X .060 Thk

$3.99

$

In Stock, only 3 left!

0

17

Cub Cadet 741-0339

Bearing, Flange, .754 ID X 1.00 OD X .925 Lg
(Superseded to 941-0339)

$11.99

$

In Stock, Qty 20+

0

18

Cub Cadet 741-0376

Bearing, Flange, .75 ID X 1.00 OD X .59 Lg
(Superseded to 941-0376)

$8.49

$

In Stock, Qty 11

0

19

Cub Cadet 748-0108

Bearing, Flange, .502 l D X .751 OD X .59 Lg
(Superseded to 948-0108)

$8.49

$

In Stock, Qty 11

0

Cub Cadet 737-0168

Grease, Shell Alvania
(Superseded to 737-0168A)

$28.99

$

In Stock, only 1 left!

0

$

$

Not available
