303 (190-303-100) - Cub Cadet 40" Snow Thrower Attachment att Mounting Hitch & Subframe Parts Diagram

40" Snow Thrower Attachment

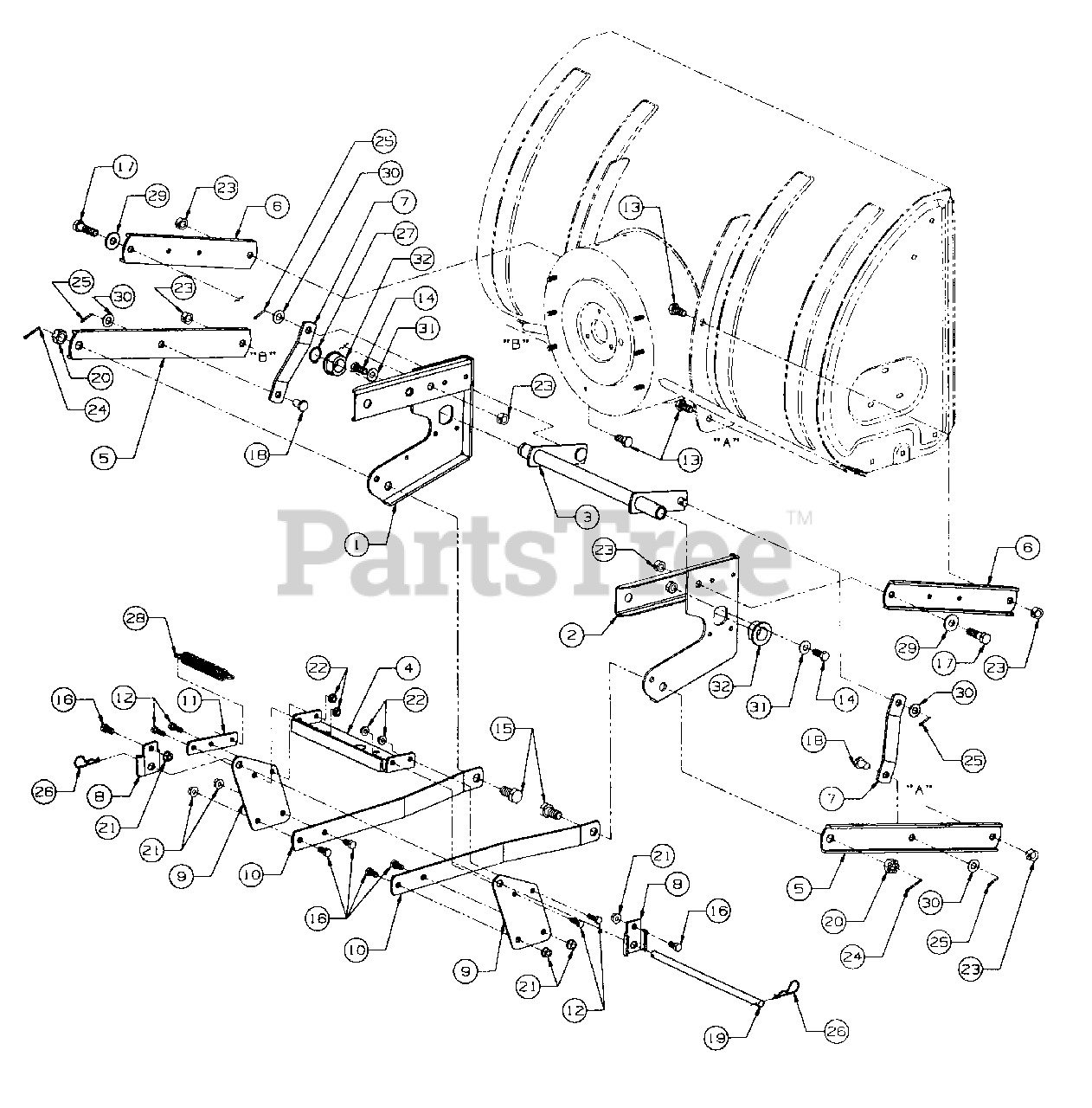

Mounting Hitch & Subframe Parts Diagram

  • Title

1

Cub Cadet 603-0268

Hitch, Blade

Variations

Cub Cadet 603-0268-0498

USE 603-0268-0716 HITCH-BLADE - OLD CUB YELLOW (0498)

$84.99

$

In Stock, only 1 left!

0

Cub Cadet 603-0268-0637

HITCH-BLADE - POWDER BLACK (0637)

$84.99

$

In Stock, only 1 left!

0

Cub Cadet 603-0268-0716

HITCH-BLADE - CUB YELLOW-99 (0716)

$84.99

$

In Stock, only 1 left!

0

Cub Cadet 603-0268-4021

USE 603-0268-0716 HITCH-BLADE - CUB YELLOW 2 (4021)

$84.99

$

Usually ships in 3-6 days

0

$77.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0269

Hitch, Blade

Variations

Cub Cadet 603-0269-0498

USE 603-0269-0716 HITCH-BLADE - OLD CUB YELLOW (0498)

$86.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0269-0716

HITCH-BLADE - CUB YELLOW-99 (0716)

$86.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0269-4021

HITCH-BLADE - CUB YELLOW 2 (4021)

$86.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0296

Rockshaft Assembly

Variations

Cub Cadet 603-0296-0498

SHAFT-ROCK (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 603-0299

Bracket, Pulley
(Superseded to 603-0299-0498)

Variations

Cub Cadet 603-0299-0498

BRACKET-PULLEY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0299-0637

USE 603-0299-0498 BRACKET-PUL - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 703-2709

Link, Lower Pivot
(Superseded to 703-2709-0716)

Variations

Cub Cadet 703-2709-0498

USE 703-2709-0716 LINK-LOWER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2709-0716

LINK-LOWER PIVOT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

6

Cub Cadet 703-2710

Link, Upper Pivot

Variations

Cub Cadet 703-2710-0498

USE 703-2710-0716 LINK-UPPER - OLD CUB YELLOW (0498)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2710-0716

LINK-UPPER PIVOT - CUB YELLOW-99 (0716)

$20.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-2726

Link, Snowthrower Lift

Variations

Cub Cadet 703-2726-0498

LIFT LINK - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2726-0499

LINK-LIFT (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 703-2726-0716

LINK-LIFT (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

8

Cub Cadet 703-2737

Bracket, Frame Mounting

Variations

Cub Cadet 703-2737-0498

Frame Mounting Bracket - OLD CUB YELLOW (0498)

$12.99

$

In Stock, only 1 left!

0

Cub Cadet 703-2737-0716

Frame Mounting Bracket - CUB YELLOW-99 (0716)

$12.99

$

In Stock, only 1 left!

0

Cub Cadet 703-2737-0499

Frame Mounting Bracket - CUB BEIGE (0499)

$12.99

$

In Stock, only 4 left!

0

Cub Cadet 703-2737-0637

Frame Mounting Bracket - POWDER BLACK (0637)

$12.99

$

In Stock, only 4 left!

0

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-2738

Plate, Subframe Mounting

Variations

Cub Cadet 703-2738-0498

PLATE-SUBFRAME MT (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

10

Cub Cadet 703-2739

Arm, Subframe

Variations

Cub Cadet 703-2739-0498

Subframe Arm - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2739-0716

Subframe Arm - CUB YELLOW-99 (0716)

$

$

Not available

$

$

11

Cub Cadet 703-2750

Strap, Extension Spring

Variations

Cub Cadet 703-2750-0498

STRAP-EXTENSION (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2750-0637

STRAP-EXTENSION (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

12

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 X 1.D Lg GR5

$3.99

$

In Stock, Qty 17

0

13

Cub Cadet 710-0493

Screw, Hex Cap, 1/2-13 X 1.0 Lg GR2
(Superseded to 710-3131)

$4.99

$

In Stock, only 1 left!

0

14

Cub Cadet 710-0505

Screw, Hex Cap, 7/16-14 X 1.0 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0964A

Screw, Hex Cap, 5/8-18 X 1.25 Lg GR5

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

17

Cub Cadet 710-3067

Screw, Hex Cap, 1/2-13 X 1.75 Lg GR5

$6.49

$

In Stock, only 2 left!

0

18

Cub Cadet 711-0332

Pin, Clevis
(Superseded to 911-0332)

$14.99

$

In Stock, Qty 20+

0

19

Cub Cadet 711-3401

Rod, .50 Dia X 12.50 Lg

$31.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 712-0386A

Nut, Hex Slotted, 5/8-18

$7.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-0431

Nut, Hex Flanged Lock
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3004A

Nut, Hex Flange Top Lock, 5/16-18 GR5

$3.49

$

In Stock, Qty 20+

0

23

Cub Cadet 712-3022

Nut, Hex Center Lock, 1/2-13 GR5

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 714-0470

Pin, Cotter, 1/8 Dia X 1.25 Lg

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 714-0474

Pin, Cotter, 1/8 Dia X .75 Lg

$4.49

$

In Stock, Qty 16

0

26

Cub Cadet 714-3020

Pin, Internal Cotter

$3.99

$

In Stock, Qty 9

0

27

Cub Cadet 716-0102

Ring, Snap, 1" Dia Shaft

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 732-0262

Spring, Extension
(Superseded to 932-0262)

$20.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-0179

Washer, Flat, .531 X 1.25 X .100 Thk

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0272

Washer, Flat, .510 X 1.00 X .060 Thk

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0407

Washer, Bell, .45 X 1.00 X .062 Thk

$3.99

$

In Stock, Qty 7

0

32

Cub Cadet 741-0170

Bearing, Flange
(Superseded to 941-0170)

$17.99

$

In Stock, only 2 left!

0
