303 (190-303-100) - Cub Cadet 40" Snow Thrower Attachment Augers & Auger Housing Parts Diagram

40" Snow Thrower Attachment

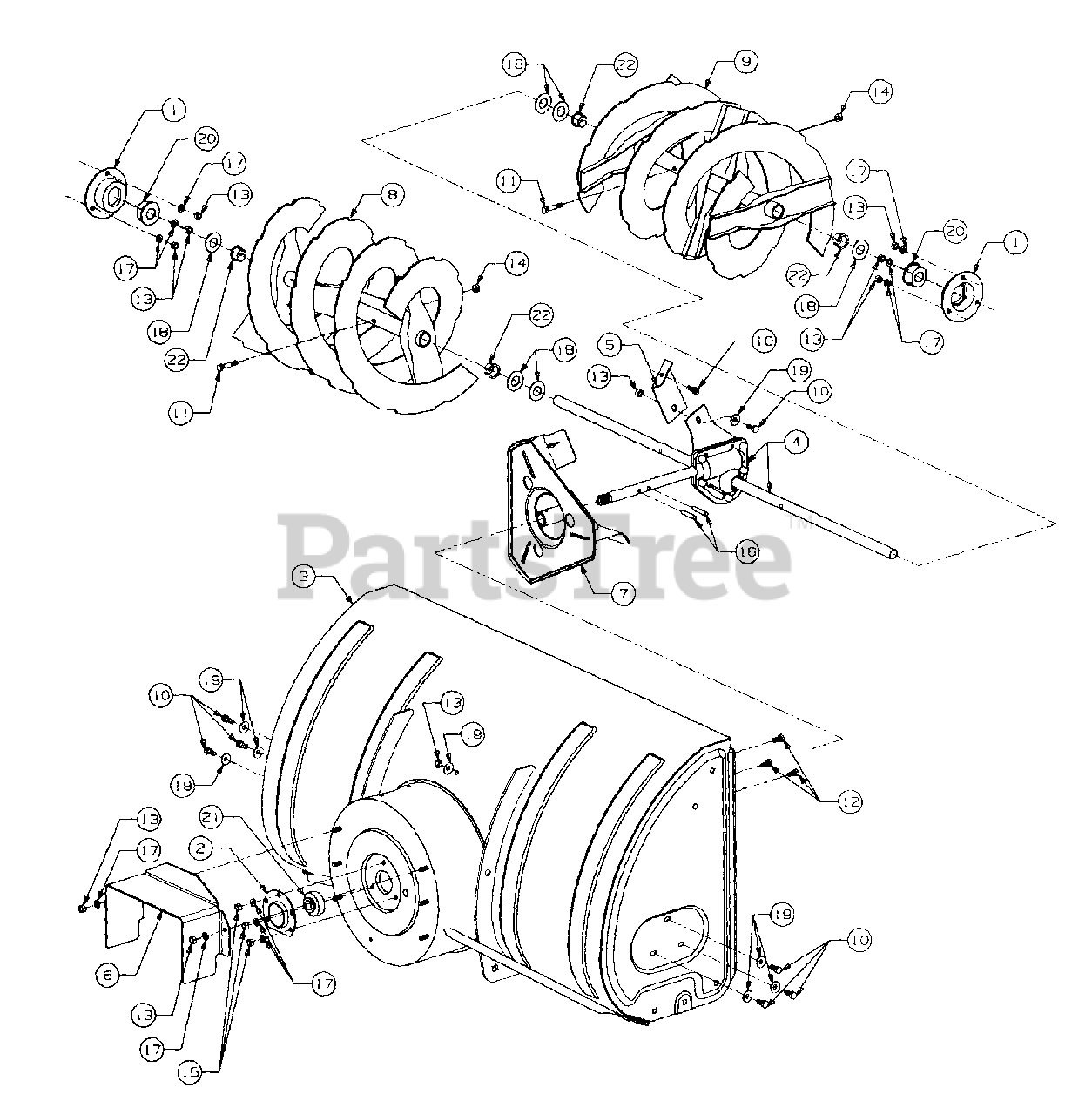

Augers & Auger Housing Parts Diagram

  • Title

1

Cub Cadet 05845A

Housing, Double D Bearing
(Superseded to 05845C-0637)

Variations

Cub Cadet 05845A-0637

Bearing Housing - POWDER BLACK (0637)

$25.99

$

In Stock, only 1 left!

0

$25.99

$

In Stock, only 1 left!

0

2

Cub Cadet 05931

Housing, Bearing
(Superseded to 05931A)

$11.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0281

Housing, Auger

Variations

Cub Cadet 603-0281-0498

AUGER HOUSING (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0281-0637

AUGER HOUSING POWDER BLK - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 777-0783

Graphic, Warning

$

$

Not available

Cub Cadet 777-2658

Graphic, Cub Cadet
(Superseded to 777D09506)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 777-9984

Graphic, Danger Cut Foot
(Superseded to 777S32066)

$

$

Not available

Cub Cadet 779-3538

Graphic, Weight Needed

$

$

Not available

4

Cub Cadet 618-0161

Gear Assy, Auger
(Superseded to 918-0161A)

Note: (Refer to "Auger Gearbox Assy" illustration & parts list for components)

$

$

Not available

5

Cub Cadet 703-2734

Bracket, Housing Brace

Variations

Cub Cadet 703-2734-0498

BRACKET-HOUSING BRACE - OLD CUB YELLOW (0498)

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2734-0637

BRACKET-HOUSING BR - POWDER BLACK (0637)

$11.99

$

In Stock, only 2 left!

0

Cub Cadet 703-2734-0716

BRACKET-HOUSING BRACE - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 2 left!

0

$11.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-2736

Cover, Belt

Variations

Cub Cadet 703-2736-0498

COVER-BELT - OLD CUB YELLOW (0498)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2736-0637

COVER-BELT - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 705-5187A

Impeller
(Superseded to 984-0065-0637)

Variations

Cub Cadet 705-5187A-0637

Impeller, 3-Blade 12" - POWDER BLACK (0637)

$95.99

$

In Stock, only 4 left!

0

$95.99

$

In Stock, only 4 left!

0

8

Cub Cadet 705-5269

Auger, Serrated - LH
(Superseded to 753-05285-0637)

Variations

Cub Cadet 705-5269-0498

USE 753-05285-0637 KIT:SPIRAL - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 705-5269-0637

USE 753-05285-0637 KIT:SPIRAL - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 705-5269-0716

USE 753-05285-0637 KIT:SPIRAL - CUB YELLOW-99 (0716)

$

$

Not available

$

$

9

Cub Cadet 705-5270

5270 Auger, Serrated - RH

Variations

Cub Cadet 705-5270-0498

SPIRAL ASSEMBLY (RH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 705-5270-0637

SPIRAL ASSEMBLY (RH) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 705-5270-0716

SPIRAL ASSEMBLY (RH) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

10

Cub Cadet 710-0157

Screw, Hex Cap, 5/16-24 X .75 Lg GR2

$4.49

$

In Stock, only 3 left!

0

11

Cub Cadet 710-0890

Bolt, Shear, 5/16-18 X 1.50 Lg
(Superseded to 710-0890A)

$1.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-1087

Screw, Hex Cap, 5/1 6-18 X .625 Lg GR2
(Superseded to 710-3038)

$5.49

$

In Stock, only 1 left!

0

13

Cub Cadet 712-0123

Nut, Hex, 5/16-24
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

14

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

15

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 715-0114A

Pin, Spiral Spring, 1/4 Dia X 1.50 Lg
(Superseded to 915-0114)

$9.99

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0188

Washer, Flat, .76 X 1.49 X .06 Thk

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .06 Thk

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 741-0300

Bearing, Plastic Flange
(Superseded to 941-0300)

$15.99

$

In Stock, Qty 11

0

21

Cub Cadet 741-0309

Bearing
(Superseded to 941-0309)

$79.99

$

In Stock, Qty 20+

0

22

Cub Cadet 741-0493A

Bushing, Flange
(Superseded to 741-0493C)

$4.99

$

In Stock, Qty 20+

0
