30314 TE - Toro 91cm ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp (SN: 250000001 - 250999999) (2005) SPINDLE, PULLEY AND BELT ASSEMBLY Parts Diagram

91cm ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp

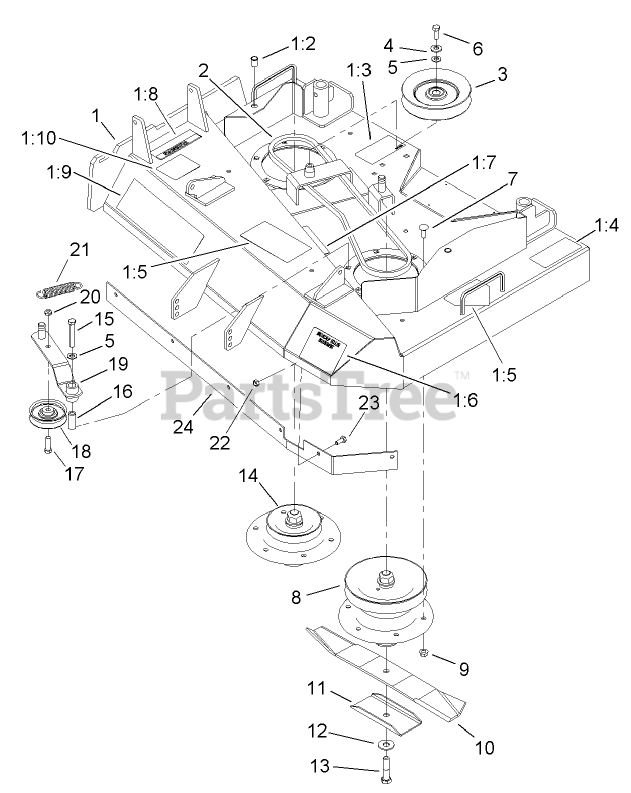

SPINDLE, PULLEY AND BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 106-0616

DECK ASM

$3084.99

$

Usually ships in 3-6 days

0

1:2

Toro 32148-9

INSERT-NUT

$3.49

$

In Stock, only 2 left!

0

1:3

Toro 104-8185

DECAL

$20.99

$

Usually ships in 3-6 days

0

1:4

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$13.99

$

Usually ships in 3-6 days

0

1:5

Toro 93-7010

DECAL-DANGER

$13.99

$

Usually ships in 3-6 days

0

1:6

Toro 106-5533

DECAL-ANTISCALP, CE

$

$

Not available

1:7

Toro 98-1977

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

1:8

Toro 93-7828

DECAL-WARNING, DEFLECTOR

$25.99

$

Usually ships in 3-6 days

0

1:9

Toro 106-5518

DECAL

$

$

Not available

1:10

Toro 105-2699

DECAL-NOISE

$35.99

$

Usually ships in 3-6 days

0

2

Toro 51-3530

V-BELT-DRIVE, DECK

$35.99

$

In Stock, only 4 left!

0

3

Toro 1-633166

PULLEY-IDLER

$60.99

$

In Stock, Qty 20+

0

4

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

7

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

8

Toro 106-0788

Spindle Housing ASM

$

$

Not available

9

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

10

Toro 56-2390

BLADE-SAIL, EXTRA HIGH
(Superseded to 56-2390-03)

$39.99

$

In Stock, Qty 10

0

11

Toro 92-9820

STIFFENER-BLADE

$65.99

$

Usually ships in 3-6 days

0

12

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 6

0

13

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, only 3 left!

0

14

Toro 106-0787

SPINDLE HOUSING ASM

$627.99

$

Usually ships in 3-6 days

0

15

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 51-3641

SLEEVE-PIVOT, IDLER

$21.99

$

In Stock, only 2 left!

0

17

Toro 3211-5

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

18

Toro 51-3660

PULLEY-IDLER

$42.99

$

In Stock, only 4 left!

0

19

Toro 105-0889

IDLER ARM ASM

$172.99

$

Usually ships in 3-6 days

0

20

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 19

0

21

Toro 105-2673

SPRING-EXTENSION

$29.99

$

Usually ships in 3-6 days

0

22

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

23

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 93-9479-01

BAFFLE-FRONT

$

$

Not available
