30317 - Toro 36" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 15hp (SN: 240000001 - 240002000) (2004) FUEL SYSTEM ASSEMBLY KOHLER MODEL CV15T-41604 Parts Diagram

36" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 15hp

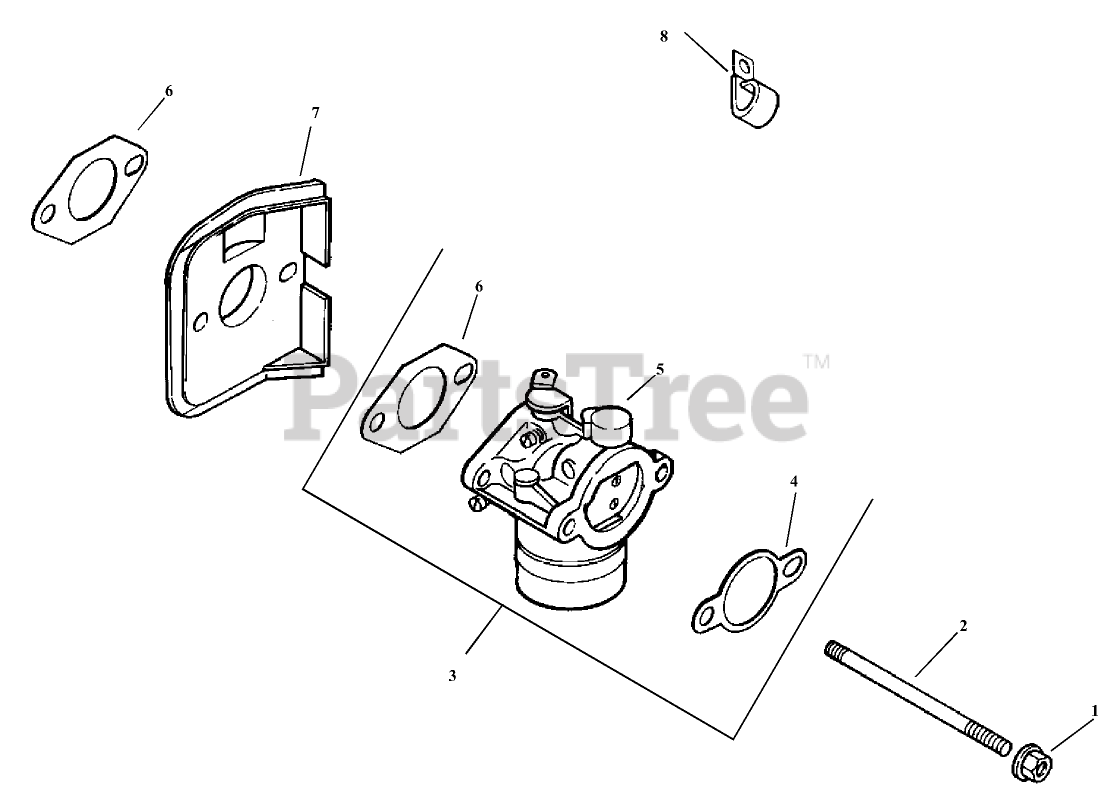

FUEL SYSTEM ASSEMBLY KOHLER MODEL CV15T-41604 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Order Parts from Kohler

$4.99

$

In Stock, Qty 6

0

2

Kohler M-629116-S

Stud (M6x1.0x116)

Note: Order Parts from Kohler

$

$

Not available

3

1285380-S

Kit-Carburetor w/Gaskets (Incl. 4-6)

Note: Order Parts from Kohler

$

$

Not available

4

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Order Parts from Kohler

$2.99

$

In Stock, Qty 12

0

5

1205380

Carburetor ASM

Note: Order Parts from Kohler

$

$

Not available

6

Kohler 12 041 01-S

Gasket-Carburetor

Note: Order Parts from Kohler

$2.49

$

In Stock, Qty 10

0

7

Kohler 12 265 04-S

Deflector-Heat
(Superseded to 12 265 08-S)

Note: Order Parts from Kohler

$9.49

$

In Stock, only 2 left!

0

8

Kohler 47 154 01-S

CLIP-CABLE

Note: Order Parts from Kohler

$5.49

$

In Stock, only 2 left!

0

Kohler 12 757 02-S

Float Repair Kit

Note: Order Parts from Kohler

$13.99

$

In Stock, only 2 left!

0

Kohler 12 757 02-S

Float Repair Kit

Note: Not illustrated

$13.99

$

In Stock, only 2 left!

0

Kohler 12 757 08-S

Choke Repair Kit

Note: Not illustrated

$47.99

$

In Stock, only 1 left!

0

Kohler 12 757 08-S

Choke Repair Kit

Note: Order Parts from Kohler

$47.99

$

In Stock, only 1 left!

0

Kohler 12 757 03-S

Carburetor Repair Kit

Note: Order Parts from Kohler

$45.99

$

In Stock, only 2 left!

0

Kohler 12 757 03-S

Carburetor Repair Kit

Note: Not illustrated

$45.99

$

In Stock, only 2 left!

0
