30318 - Toro 44" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 15hp (SN: 250000001 - 250999999) (2005) ENGINE CONTROL ASSEMBLY KOHLER CV15T-41629 Parts Diagram

44" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 15hp

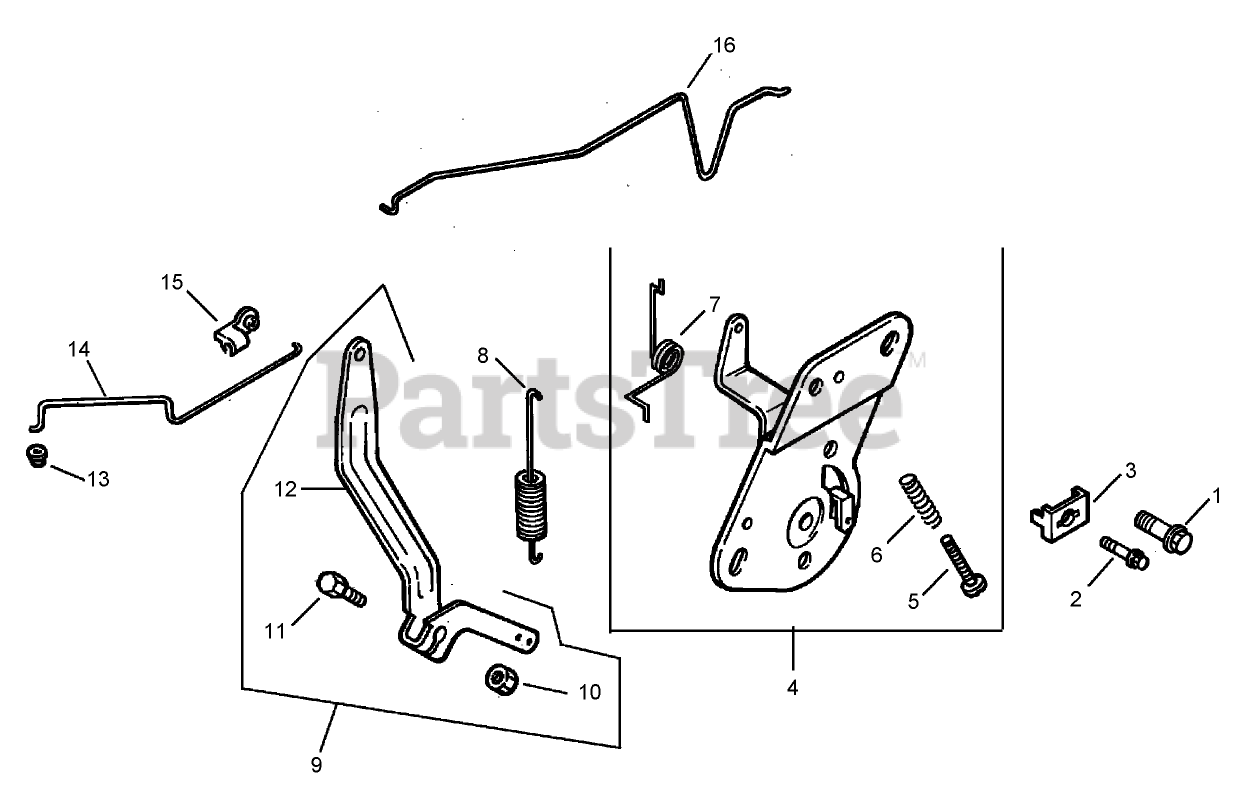

ENGINE CONTROL ASSEMBLY KOHLER CV15T-41629 Parts Diagram

  • Title

1

Kohler M-664020-S

Screw-Socket, 6 Lobed (Thread Forming, M6x1.0x20)
(Superseded to 25 086 403-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

2

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 13

0

3

Kohler 12 237 01-S

CLAMP-CABLE
(Superseded to 25 237 53-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 1 left!

0

4

Kohler 12 536 01-S

Speed Control ASM (Includes 5-7)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

5

Kohler 12 086 39-S

Screw-Pan Head (w/loctite)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 12 089 11-S

Spring-Control, Speed

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 11

0

7

Kohler 12 089 23-S

Spring-Return, Choke

Note: Obtain parts from www.kohlerplus.com

$10.99

$

Usually ships in 2-5 days

0

8

Kohler 12 089 19-S

Spring-Governor

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

9

Kohler 12 755 83-S

Governor Lever Kit (Includes 10-12)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

Usually ships in 2-5 days

0

10

Kohler 12 100 07-S

Nut-Flange, Hex (1/4-20)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

11

Kohler 52 211 04-S

Bolt-Square Neck, Round Head (1/4-20x1)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

12

Kohler 12 090 28-S

Lever-Governor

Note: Obtain parts from www.kohlerplus.com

$5.99

$

Usually ships in 2-5 days

0

13

Kohler 25 158 08-S

BUSHING-LINKAGE, THROTTLE

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 14

0

14

Kohler 12 079 01-S

Linkage-Throttle

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, only 2 left!

0

15

Kohler 25 158 11-S

BUSHING-RETAINING, LINKAGE

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 20+

0

16

Kohler 12 079 07-S

Linkage-Choke

Note: Obtain parts from www.kohlerplus.com

$7.49

$

In Stock, only 1 left!

0
