30335 - Toro 36" ProLine Walk-Behind Mower, Hydro Drive, 15hp (SN: 210000001 - 210999999) (2001) STARTER ASSEMBLY-KOHLER MODEL CV15T-41604 Parts Diagram

36" ProLine Walk-Behind Mower, Hydro Drive, 15hp

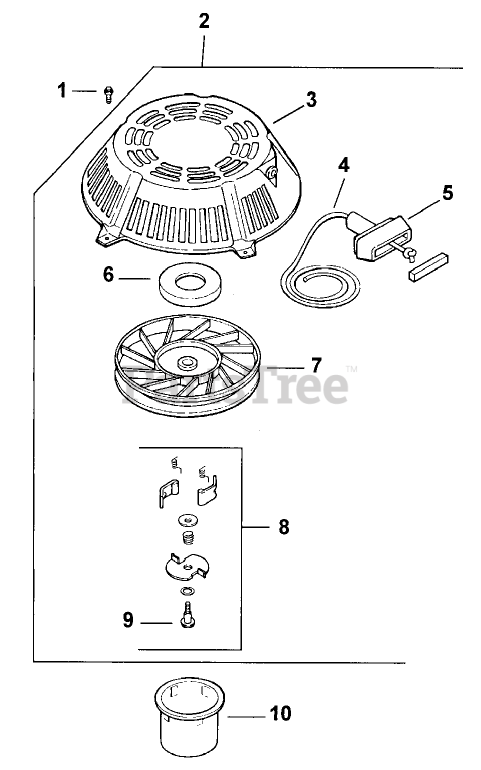

STARTER ASSEMBLY-KOHLER MODEL CV15T-41604 Parts Diagram

  • Title

1

Kohler M-550010-S

Screw-HF (M5x0.8x10)

$3.99

$

In Stock, only 3 left!

0

2

Kohler 12 165 01-S

Starter ASM Retractable (Incl. 3-9)
(Superseded to 24 165 02-S)

$97.99

$

In Stock, only 4 left!

0

3

Kohler 12 081 01-S

Housing-Starter

$

$

Not available

4

Kohler 12 160 01-S

Rope-Starter

$

$

Not available

5

Kohler 25 166 01-S

Handle-Start, Recoil

$19.99

$

In Stock, Qty 9

0

6

Kohler 12 089 06-S

Spring and Keeper

$

$

Not available

7

Kohler 12 093 01-S

Pulley

$

$

Not available

8

Kohler 12 757 06-S

Kit-Dog Repair (incl. 9)

$

$

Not available

9

Kohler 41 086 09-S

Screw-pozi driv

$

$

Not available

10

Kohler 15 109 01-S

Cup-Drive

$27.99

$

In Stock, only 1 left!

0

Kohler 12 113 07-S

Decal-Starting

Note: Not illustrated

$

$

Not available
