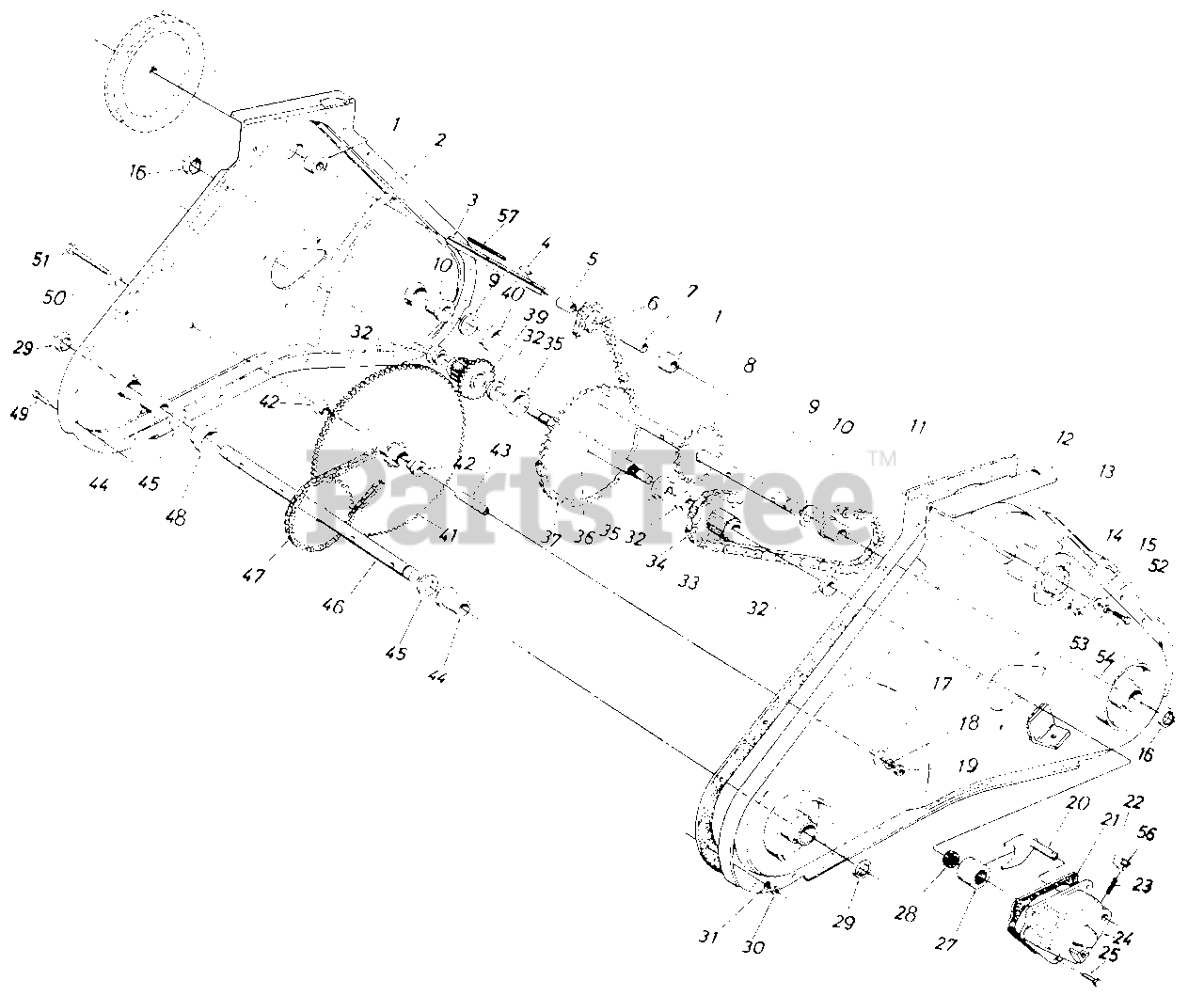

3034 - MTD Tiller (1986) (J.C. Penney) Chain Case Assembly Parts Diagram

Tiller

Chain Case Assembly Parts Diagram

  • Title
1

MTD Part# 741-0155

Ball Bearing .62" I.D. x 1.38" O.D. x .44
(Superseded to 941-0155)
Usually ships in 1 day

$

$17.54

0

2

MTD Part# 15384

Chain Case R.H. Half
Usually ships same day

Not available

$

$

3

MTD Part# 738-0379

Input Shaft .62" Dia.
Usually ships same day

Not available

$

$

4

MTD Part# 714-0122

Sq. Key 3/16" x 3/16" x .75" Lg.
(Superseded to 914-0122)
Usually ships in 5 to 10 days

$

$2.47

0

5

MTD Part# 750-0379

Spacer .637" I.D. x .781" O.D. x.85" Lg.
Usually ships same day

Not available

$

$

6

MTD Part# 717-0210

Sprocket 9 Tooth x .62" Shaft
Usually ships same day

Currently unavailable

$

$

7

MTD Part# 750-0378

Spacer .637" I.D. x .781" O.D. x 1.44" Lg.
Usually ships same day

Not available

$

$

8

MTD Part# 14889

Tine Shaft Ass'y.
Usually ships same day

Not available

$

$

9

MTD Part# 736-0350

Fl-Wash. 1.28" I.D. x 1.62" O.D.
(Superseded to 736-0246)
Usually ships same day

Not available

$

$

10

MTD Part# 741-0381

Flange Bearing 1.25" I.D.
Usually ships same day

Not available

$

$

11

MTD Part# 721-0163

Gasket-Housing
(Superseded to 921-0163)
Usually ships in 5 to 10 days

$

$46.50

0

12

MTD Part# 15383

Chain Case L.H. Half
Usually ships same day

Currently unavailable

$

$

13

MTD Part# 05034

Bearing Housing 1-3/8" O.D.
(Superseded to 05034A)
Usually ships same day

Not available

$

$

14

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

15

MTD Part# 712-0138

Hex Nut 1/4-28 Thd.
(Superseded to 912-0138)
Usually ships same day

Not available

$

$

16

MTD Part# 721-0192

Seal 1.25" I.D.
Usually ships same day

Not available

$

$

17

MTD Part# 736-0219

Belleville Wash.
(Superseded to 936-0219)
Usually ships in 1 day

$

$3.06

0

18

MTD Part# 736-0169

L-Wash. 3/8" I.D.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

19

MTD Part# 712-0214

Hex Cent. L-Nut 3/8-24 Thd.
(Superseded to 912-0214)
Usually ships same day

Not available

$

$

20

MTD Part# 04859

Shift Yoke Ass'y.-L.H.
Usually ships same day

Not available

$

$

MTD Part# 04858

Shift Yoke Ass'y.-R.H.

Note: (Not Shown)

Usually ships same day

Not available

$

$

21

MTD Part# 721-0162

Gasket-Shift Housing
Usually ships same day

Not available

$

$

22

MTD Part# 741-0862

Ball Detent .250 Dia.
Usually ships in 1 day

$

$3.11

0

23

MTD Part# 732-0863

Compression Spring
(Superseded to 932-0863)
Usually ships in 5 to 10 days

$

$2.94

0

24

MTD Part# 719-0237

Shift Housing-L.H.
Usually ships same day

Not available

$

$

MTD Part# 719-0238

Shift Housing-R.H.

Note: (Not Shown)

Usually ships same day

Not available

$

$

25

MTD Part# 710-0601

Hex Tap-Tite 5/16-18 x .75" Lg.
(Superseded to 710-1260A)
Usually ships in 1 day

$

$2.65

0

27

MTD Part# 717-0382

Clutch Dog
Usually ships same day

Currently unavailable

$

$

28

MTD Part# 717-0382

Clutch Dog Driver
Usually ships same day

Currently unavailable

$

$

29

MTD Part# 721-0102

Seal 1.0" I.D. x 1.38"0.D.
(Superseded to 921-0102)
Usually ships in 1 day

$

$15.19

0

30

MTD Part# 712-0138

Hex Nut 1/4-28 Thd.*
(Superseded to 912-0138)
Usually ships same day

Not available

$

$

31

MTD Part# 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

32

MTD Part# 741-0229

Flange Brg. 1.0O" I.D.
Usually ships same day

Not available

$

$

33

MTD Part# 14746

Sprocket Brg. Sleeve Ass'y.
Usually ships same day

Not available

$

$

34

MTD Part# 713-0313

#50 Chain-5/8" Pitch x 50 Links-Endless
(Superseded to 913-0313)
Usually ships same day

Not available

$

$

35

MTD Part# 750-0352

Stepped Spacer 1.0" l.p. x 1.75" O.D.
Usually ships same day

Not available

$

$

36

MTD Part# 04823

Clutch Shaft Ass'y.
Usually ships same day

Currently unavailable

$

$

37

MTD Part# 713-0250

#420 Chain 1/2" Pitch x 58 Links-Endless
(Superseded to 913-0250)
Usually ships same day

Not available

$

$

39

MTD Part# 717-0512

Gear Bearing-Sleeve Ass'y.
Usually ships same day

Not available

$

$

40

MTD Part# 750-0563

Spacer 1.25" I.D. x 2.0" O.D. x .68" Lg.
Usually ships same day

Not available

$

$

41

MTD Part# 717-0511

Sprocket and Gear Ass'y.
Usually ships same day

Not available

$

$

42

MTD Part# 748-0184

Flange Brg. .628" I.D. x 753n O.D.
Usually ships in 1 day

$

$6.09

0

43

MTD Part# 750-0374

Hub Sleeve 88" I.D. x .625" O.D.
Usually ships same day

Not available

$

$

44

MTD Part# 741-0189

Flange Brg. 1.00" I.D. x 1.188" O.D.
Usually ships same day

Currently unavailable

$

$

45

MTD Part# 736-0259

Fl-Wash. 10" I.D. x 1.62" O.D.
(Superseded to 936-0259)
Usually ships in 1 day

$

$5.82

0

46

MTD Part# 04835

Axle Shaft Ass'y.
Usually ships same day

Currently unavailable

$

$

47

MTD Part# 713-0312

#420 Chain 1/2" Pitch 46 Links-Endless
(Superseded to 913-0312)
Usually ships in 5 to 10 days

$

$35.10

0

48

MTD Part# 750-0314

Spacer 1.0" I.D. x 2. 0" O.D.
Usually ships same day

Not available

$

$

49

MTD Part# 710-0195

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)
Usually ships in 1 day

$

$2.53

0

50

MTD Part# 736-0219

Belleville Wash.
(Superseded to 936-0219)
Usually ships in 1 day

$

$3.06

0

51

MTD Part# 710-0629

Hex Bolt 3/8-24 x 2.75" Lg.*
Usually ships same day

Not available

$

$

52

MTD Part# 736-0159

Fl-Wash. 5/16" I.D.
(Superseded to 936-0159)
Usually ships same day

Not available

$

$

53

MTD Part# 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

54

MTD Part# 710-0627

Hex L-Bolt 5/16-24 x .75" Lg.
Usually ships in 1 day

$

$2.95

0

56

MTD Part# 721-0165

Cap Plug .250" Dia.
Usually ships same day

Currently unavailable

$

$

57

MTD Part# 714-0139

Sq. Key 8/16" x 2.0" Lg.
Usually ships in 1 day

$

$6.39

0
