30340 - Toro 44" ProLine Walk-Behind Mower, Hydro Drive, 17hp (SN: 210000001 - 210999999) (2001) LOWER CONTROL ASSEMBLY Parts Diagram

44" ProLine Walk-Behind Mower, Hydro Drive, 17hp

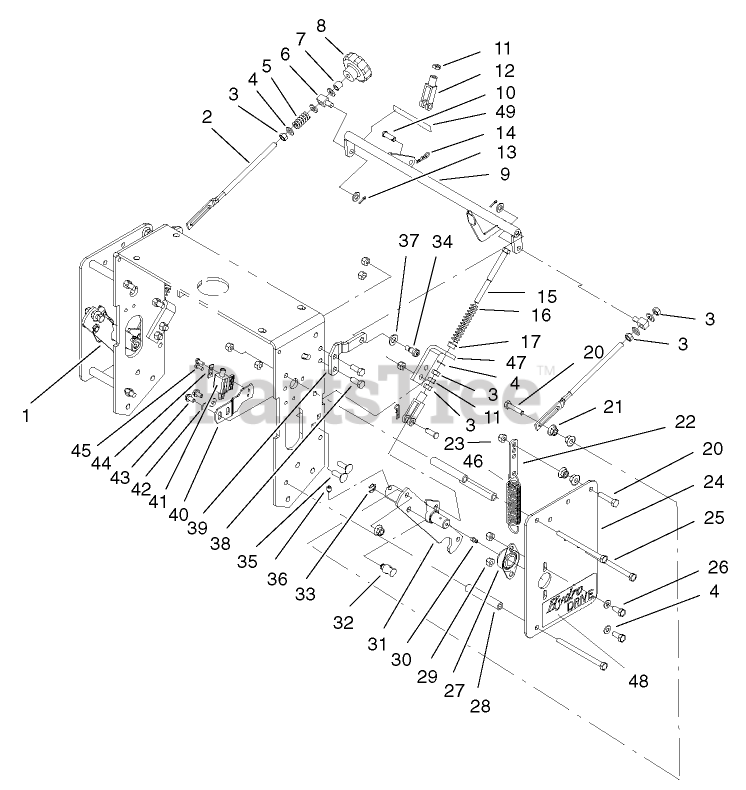

LOWER CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 104-9810

Shaft Control ASM-RH
(Superseded to 104-9810-01)

$267.99

$

Usually ships in 3-6 days

0

2

Toro 1-413350

LINK-CONTROL, SPEED

$15.99

$

In Stock, only 4 left!

0

3

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 14

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, Qty 7

0

6

Toro 1-603676

SWIVEL-ADJUSTABLE, SHORT
(Superseded to 126-8571)

$5.49

$

In Stock, Qty 7

0

7

Toro 1-603903

SPACER

$5.49

$

In Stock, Qty 5

0

8

Toro 1-413151

KNOB-TRACKING

$9.49

$

In Stock, Qty 17

0

9

Toro 104-9807-01

CRANK-SPEED CONTROL

$

$

Not available

10

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 16

0

11

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

12

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, Qty 6

0

13

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 8

0

14

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

16

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 18

0

17

Toro 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, Qty 7

0

20

Toro 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

21

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

22

Toro 1-613089

TAB-SPRING, EXTENSION

$10.99

$

In Stock, Qty 5

0

23

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 19

0

24

Toro 104-9817-01

PLATE-SIDE

$

$

Not available

25

Toro 322-38

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

26

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, Qty 9

0

28

Toro 104-9820

Spacer-Shield

$23.99

$

Usually ships in 3-6 days

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 11

0

31

Toro 104-9815

Shaft Control ASM-LH
(Superseded to 104-9815-01)

$

$

Not available

32

Toro 103-1235

SWIVEL-LEVER, DRIVE

$37.99

$

Usually ships in 3-6 days

0

33

Toro 32151-47

RING-RETAINING

$2.99

$

In Stock, Qty 11

0

34

Toro 1-809056

SCREW-HSH

$7.99

$

In Stock, only 1 left!

0

35

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 7

0

36

Toro 3246-3

SCREW-HSH

$12.99

$

Usually ships in 3-6 days

0

37

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Toro 104-9827-01

Crank Support ASM

$151.99

$

Usually ships in 3-6 days

0

40

Toro 104-9836-01

Bracket-Neutral

$

$

Not available

41

Toro 65-7410

SWITCH-POLE, SINGLE
(Superseded to 1-513051)

$18.99

$

In Stock, Qty 9

0

42

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

44

Toro 82-4570

PLATE-SWITCH

$14.99

$

Usually ships in 3-6 days

0

45

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

46

Toro 1-603693

SPRING-EXTENSION

$14.99

$

In Stock, Qty 9

0

47

Toro 104-9802-01

BRACKET-MOUNT, SPRING

$

$

Not available

48

Toro 82-4600

DECAL-HYDRO

$22.99

$

Usually ships in 3-6 days

0

49

Toro 105-4109

DECAL-TRACKING

$11.99

$

Usually ships in 3-6 days

0
