30340 - Toro 44" ProLine Walk-Behind Mower, Hydro Drive, 17hp (SN: 210000001 - 210999999) (2001) STARTER KAWASAKI FH500V-AS30 Parts Diagram

44" ProLine Walk-Behind Mower, Hydro Drive, 17hp

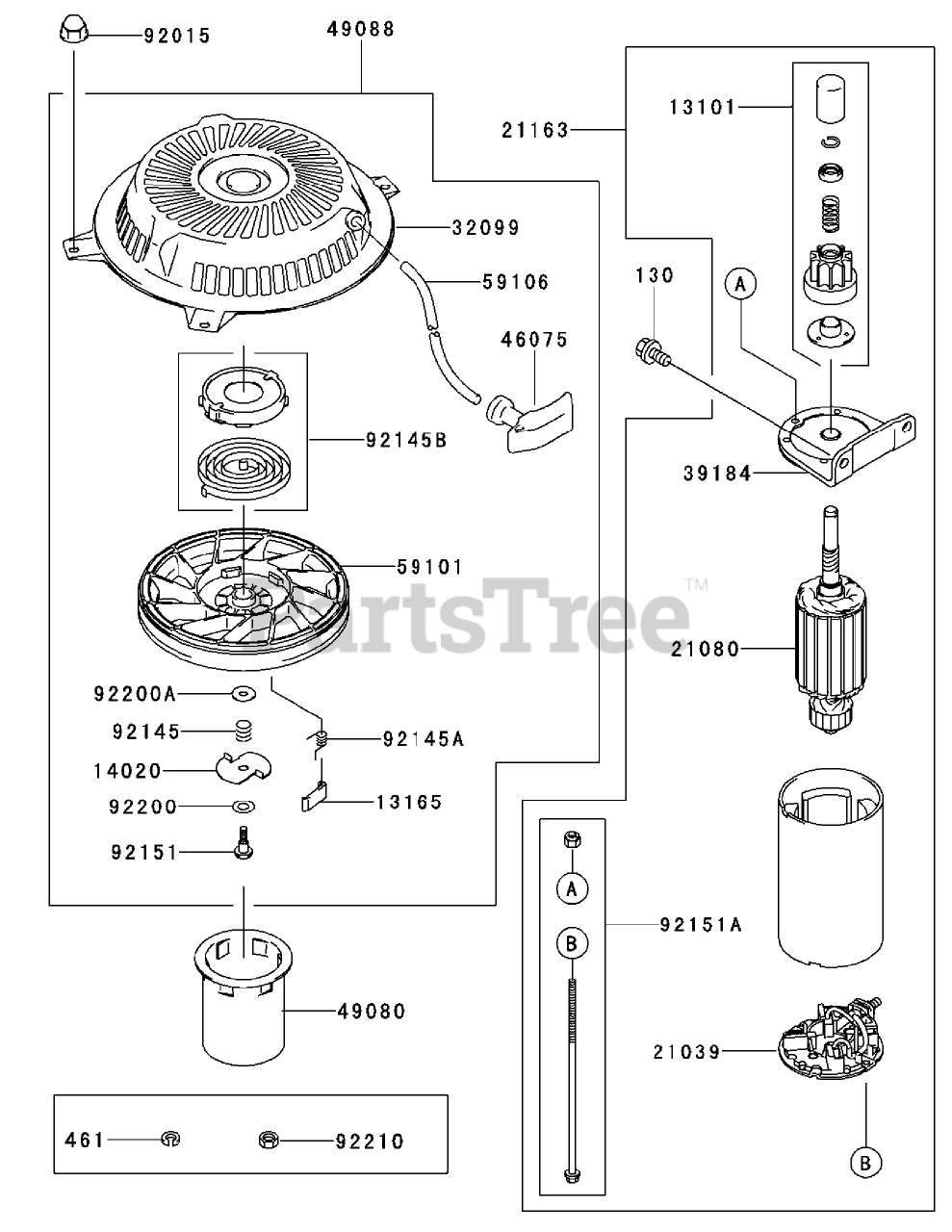

STARTER KAWASAKI FH500V-AS30 Parts Diagram

  • Title

13101

Kawasaki 13101-7001

Gear ASM
(Superseded to 13101-7003)

$118.99

$

In Stock, only 1 left!

0

13165

Kawasaki 13165-7001

PAWL-STARTER, RECOIL

$4.99

$

In Stock, only 2 left!

0

14020

Kawasaki 14020-7001

Retainer

$9.99

$

In Stock, Qty 5

0

21039

Kawasaki 21039-7001

Brush
(Superseded to 21039-7004)

$258.99

$

In Stock, Qty 7

0

21080

Kawasaki 21080-7001

Armature
(Superseded to 21080-7005)

$213.99

$

Usually ships in 2-5 days

0

21163

Toro 21163-7001

Starter-Electric

$

$

Currently unavailable

32099

Kawasaki 32099-7001

Case, Recoil Starter

$60.99

$

In Stock, only 1 left!

0

39184

Kawasaki 39184-7001

Bracket ASM
(Superseded to 39184-7004)

$29.99

$

Usually ships in 2-5 days

0

46075

Kawasaki 46075-7001

GRIP-STARTER, RECOIL

$5.49

$

In Stock, only 1 left!

0

49080

Kawasaki 49080-7001

Pulley-Starting
(Superseded to 49080-0006)

$14.99

$

In Stock, only 2 left!

0

49088

Toro 49088-7001

Starter-Recoil

$

$

Currently unavailable

59101

Kawasaki 59101-7001

REEL-STARTER, RECOIL

$26.99

$

In Stock, only 1 left!

0

59106

Kawasaki 59106-7001

Rope
(Superseded to 59106-7005)

$10.99

$

In Stock, only 3 left!

0

92015

Kawasaki 92015-1170

Nut
(Superseded to 92210-0003)

$0.99

$

In Stock, Qty 20+

0

92145

Kawasaki 92145-7006

Spring

$1.49

$

In Stock, only 2 left!

0

92145A

Kawasaki 92145-7007

Spring

$0.99

$

In Stock, Qty 20+

0

92145B

Kawasaki 92145-7008

Spring

$20.99

$

In Stock, only 3 left!

0

92151

Kawasaki 92151-7008

Bolt

$2.49

$

In Stock, Qty 8

0

92151A

Kawasaki 92151-7013

Bolt

$

$

Not available

92200

Kawasaki 92200-7004

Washer

$1.49

$

In Stock, Qty 15

0

92200A

Kawasaki 92200-7005

Washer

$1.99

$

In Stock, only 3 left!

0

92210

Kawasaki 92210-7013

Nut
(Superseded to 92210-7034)

$0.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0816

Bolt-Flanged (8X16)
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 9

0

461

Toro 461F0600

Washer

$

$

Currently unavailable
