30342 - Toro 52" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 17hp (SN: 240000001 - 240999999) (2004) DECK ASSEMBLY Parts Diagram

52" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 17hp

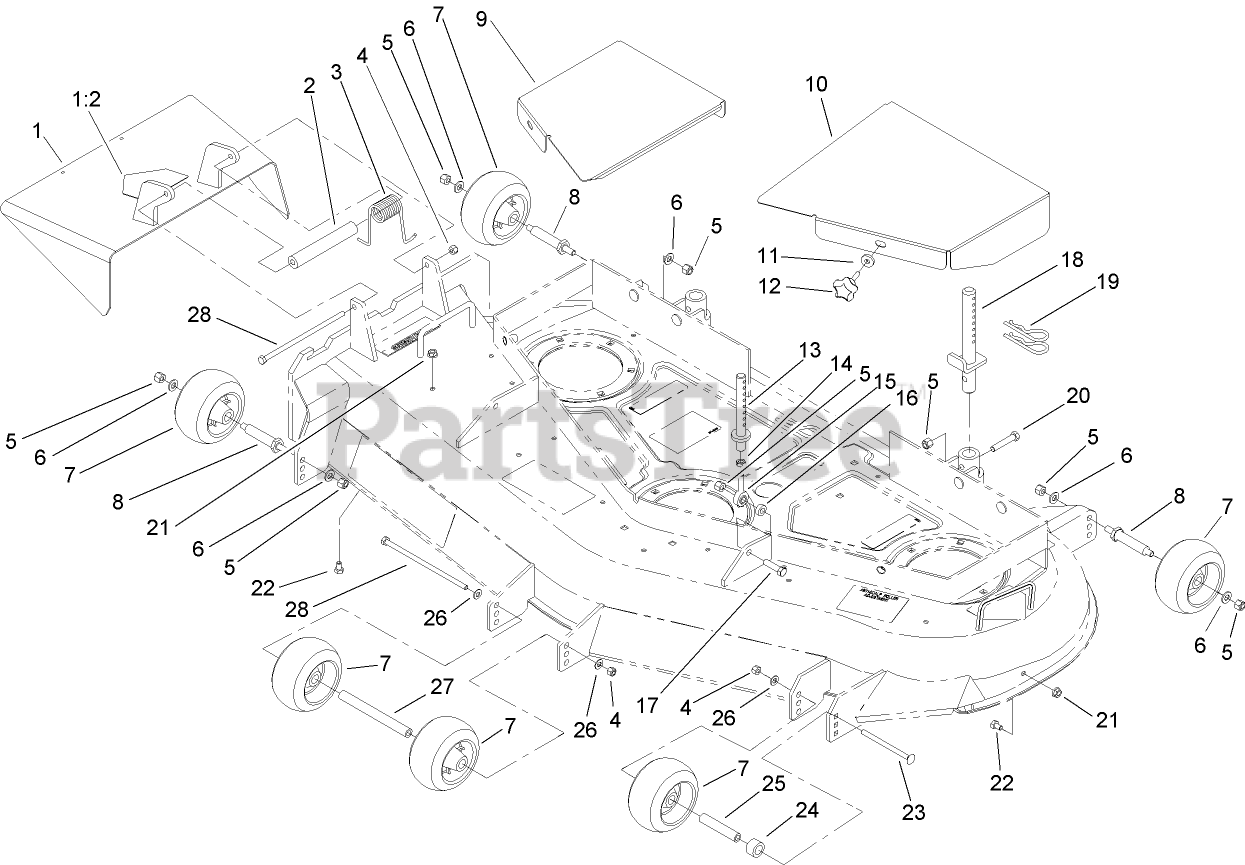

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 105-4623

Deflector ASM

$313.99

$

Usually ships in 3-6 days

0

1:2

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 16

0

2

Toro 105-4622

SPACER

$10.99

$

In Stock, only 4 left!

0

3

Toro 104-8554

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$22.99

$

In Stock, Qty 20+

0

8

Toro 99-2842

SPACER
(Superseded to 126-2928)

$26.99

$

In Stock, Qty 20+

0

9

Toro 106-3363-01

COVER-BELT, RH

$90.99

$

Usually ships in 3-6 days

0

10

Toro 106-3362-01

COVER-BELT, LH

$

$

Not available

11

Toro 106-0565

WASHER-RUBBER

$5.99

$

Usually ships in 3-6 days

0

12

Toro 106-0887

KNOB

$8.49

$

In Stock, Qty 5

0

13

Toro 106-0684

FRONT PIN ASM

$

$

Not available

14

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

15

Toro 1-613204

BALLJOINT

$31.99

$

In Stock, Qty 13

0

16

Toro 104-1156

SPACER

$7.49

$

In Stock, only 2 left!

0

17

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 106-3365

REAR PIN ASM

$

$

Not available

19

Toro 3290-256

PIN-HAIR

$8.49

$

In Stock, Qty 13

0

20

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

22

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0

23

Toro 3230-30

SCREW-CARR

$11.99

$

Usually ships in 3-6 days

0

24

Toro 106-0563

SPACER-WHEEL

$29.99

$

Usually ships in 3-6 days

0

25

Toro 106-0545

BUSHING-ROLLER

$27.99

$

Usually ships in 3-6 days

0

26

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

27

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

28

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 20+

0
