30342 - Toro 52" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 17hp (SN: 240000001 - 240999999) (2004) DECK DECAL ASSEMBLY 106-0619 Parts Diagram

52" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 17hp

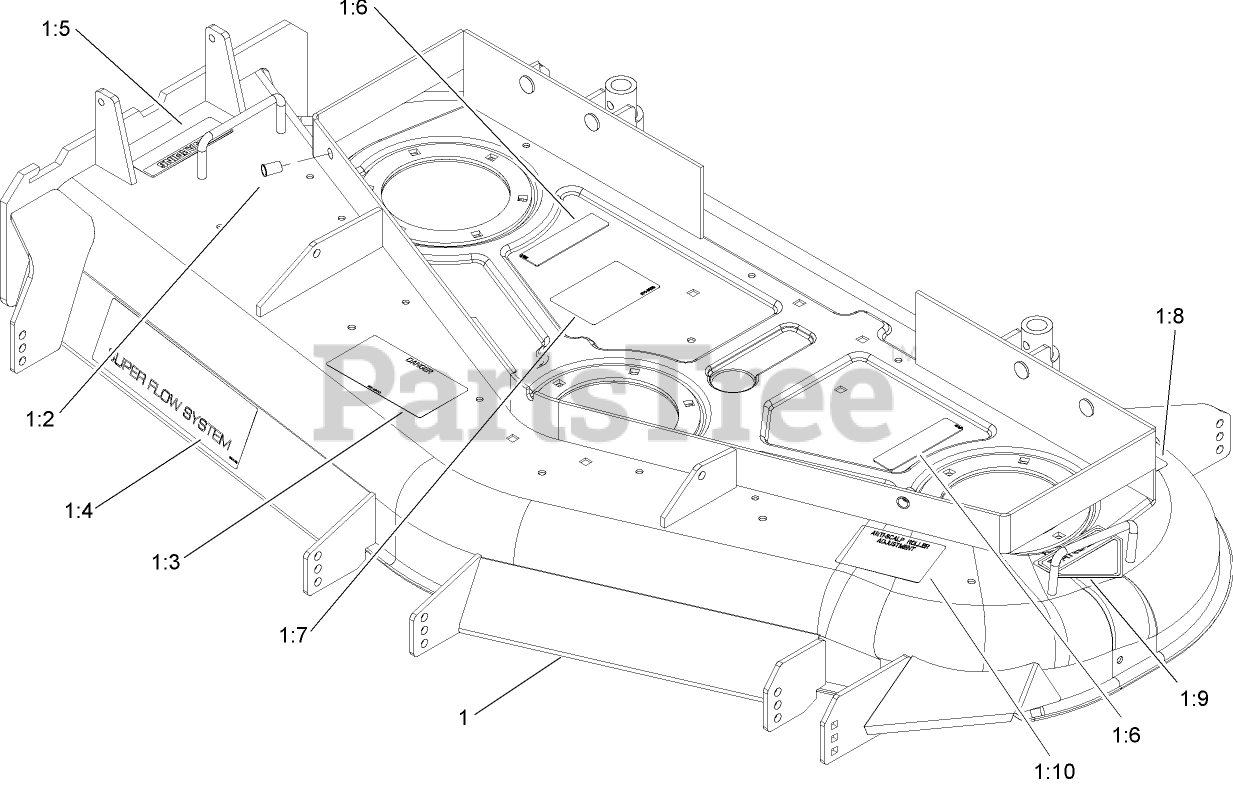

DECK DECAL ASSEMBLY 106-0619 Parts Diagram

  • Title

1

52IN DECK ASM

Note: Not serviced separately

$

$

Not available

1:2

Toro 32148-10

INSERT-NUT

$9.49

$

Usually ships in 3-6 days

0

1:3

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, only 4 left!

0

1:4

Toro 106-0705

DECAL

$

$

Not available

1:5

Toro 104-8569

DECAL-WARNING

$

$

Not available

1:6

Toro 67-5360

DECAL-DANGER

$17.99

$

In Stock, only 1 left!

0

1:7

Toro 104-8186

DECAL-ROUTING, BELT

$10.99

$

Usually ships in 3-6 days

0

1:8

Toro 68-8340

DECAL-TORQUE

$22.99

$

In Stock, only 2 left!

0

1:9

Toro 43-8480

DECAL-DANGER

$7.49

$

In Stock, only 4 left!

0

1:10

Toro 106-5532

DECAL-ANTI SCALP

$

$

Not available
