304 (190-304-100) - Cub Cadet 28" Rear Tiller Attachment att Drive Pulley, Tines & Tine Shaft Parts Diagram

28" Rear Tiller Attachment

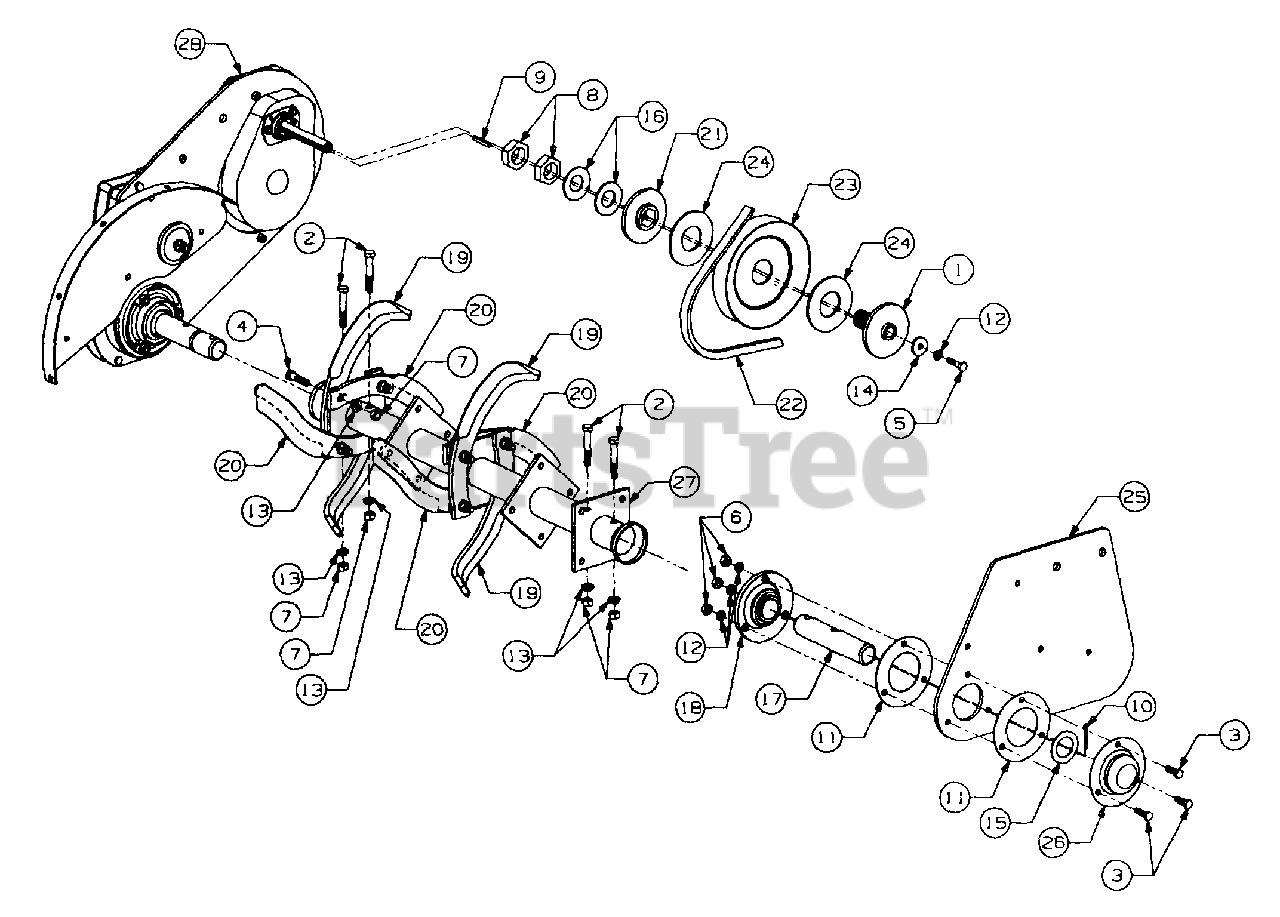

Drive Pulley, Tines & Tine Shaft Parts Diagram

  • Title

1

Cub Cadet 15727

Hub Assy, Friction Disc

$

$

Not available

2

Cub Cadet 710-0331

Screw, Hex Cap, 3/8-24 X 2.25 Lg

$7.49

$

In Stock, Qty 5

0

3

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 X 1.0 Lg

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0459

Screw, Hex Cap, 3/8-24 X 1.50 Lg GR5
(Superseded to 710-0459A)

$7.49

$

In Stock, Qty 11

0

5

Cub Cadet 710-0573

Screw, Hex Cap, 5/16-18 X 1.25 Lg GR5

$6.99

$

In Stock, only 4 left!

0

6

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

7

Cub Cadet 712-0241

Nut, Hex 3/8-24

$4.99

$

In Stock, Qty 12

0

8

Cub Cadet 712-0331

Nut, Hex Jam, 1-14

$

$

Not available

9

Cub Cadet 714-0133

Key, 3/16 Sq X 1.5 Lg

$5.49

$

In Stock, Qty 12

0

10

Cub Cadet 714-0470

Pin, Cotter, 1/8 Dia X 1.25 Lg

$4.49

$

In Stock, Qty 15

0

11

Cub Cadet 721-0133

Gasket, Bearing Hsg

$

$

Not available

12

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0217

Washer, Lock, 3/8 H.D.

$4.49

$

In Stock, only 3 left!

0

14

Cub Cadet 736-0231

Washer, Flat, .344 X 1.125 X .125 Thk

$4.99

$

In Stock, Qty 19

0

15

Cub Cadet 736-0246

Washer, Flat, 1.28 X 2.0 X .06 Thk

$

$

Not available

16

Cub Cadet 736-0352

Washer, Spring Bell, 1.0 X 2.0 X .084 Thk

$

$

Not available

17

Cub Cadet 738-0630

Shaft, RH Tine

$

$

Not available

18

Cub Cadet 741-0417

Housing, Bearing

Note: (Includes flange brg)

$

$

Not available

Cub Cadet 741-0381

Bearing, Flange

$

$

Not available

19

Cub Cadet 742-0243

Tine, LH

$

$

Not available

20

Cub Cadet 742-0244

Tine, RH
(Superseded to 742-0244-0637)

Variations

Cub Cadet 742-0244-0637

TINE-RH BLADE - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 748-0296

Hub, Floating

$

$

Not available

22

Cub Cadet 754-3074

Belt, B-Section X 191 Lg
(Superseded to 954-3074)

$198.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 756-3079

Pulley, Tiller Drive

$81.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 761-0189

Disc, Friction

$

$

Not available

25

Cub Cadet 784-0056

Plate, RH Tiller Housing

Variations

Cub Cadet 784-0056-0498

PLATE, RH TILLER HOUSING - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0056-0637

PLATE (RH) (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

26

Cub Cadet 784-0068

Cup, Grease

Variations

Cub Cadet 784-0068-0637

CUP (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0068-0638

CUP, GREASE - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0068-0648

CUP, GREASE - TECH GRAY (0648)

$

$

Not available

Cub Cadet 784-0068-0662

CUP, GREASE - OYSTER GRAY (0662)

$

$

Not available

$

$

27

Cub Cadet 784-0107

Shaft, Tiller Tine

Variations

Cub Cadet 784-0107-0637

ADAPTER-TINE ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

28

Cub Cadet 884-0061-5

Chain Case Assy, Tiller

$

$

Not available
