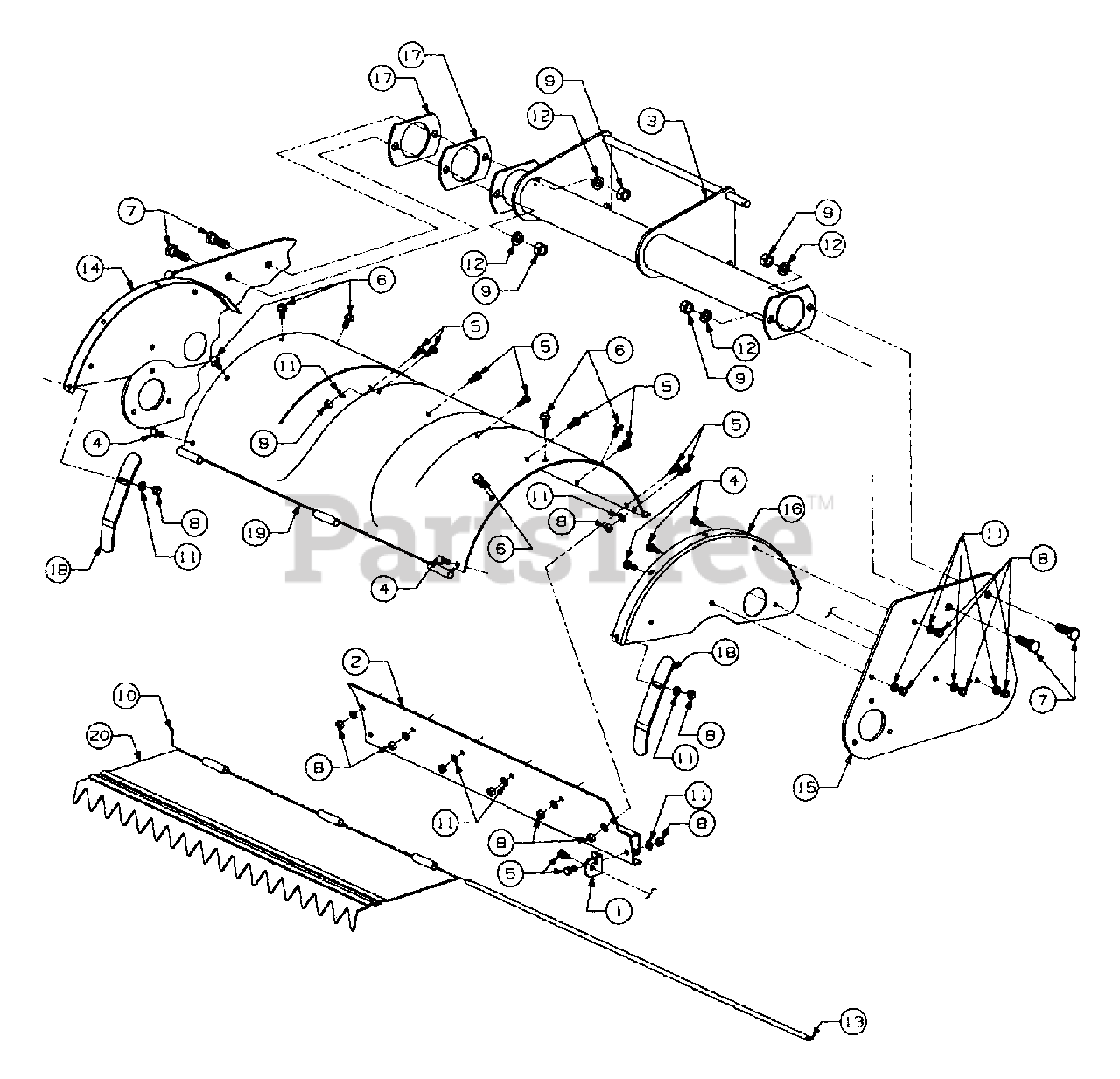

304 (190-304-100) - Cub Cadet 28" Rear Tiller Attachment att Tine Shields Parts Diagram

28" Rear Tiller Attachment

Tine Shields Parts Diagram

  • Title

1

Cub Cadet 12541

Bracket, Chute Pivot

$

$

Currently unavailable

2

Cub Cadet 603-0254

Bracket, Tine Shield Reinforcement

Variations

603-0254-0498

Cub Cadet 603-0254-0498

BRACKET-TINE SHIELD(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

3

Cub Cadet 603-0256

Bracket, Tube Pivot

Variations

603-0256-0498

Cub Cadet 603-0256-0498

BRACKET-TUBE PIVOT(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 710-0157

Screw, Hex Cap, 5/16-24 X .75 Lg GR5

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet 710-0237

Screw, Hex Cap, 5/16-24 X .62 Lg

$4.99

$

In Stock, only 2 left!

0

6

Cub Cadet 710-0604

Screw, Hex Wash TT-Tapp 5/16-18 X .62 Lg
(Superseded to 710-0604A)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3177

Screw, Hex Cap, 1/2-20 X 1.50 Lg GR5

$

$

Not available

8

Cub Cadet 712-0123

Nut, Hex, 5/16-24
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

9

Cub Cadet 712-0333

Nut, Hex, 1/2-20
(Superseded to 912-0333)

$

$

Not available

10

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia X 1.0 Lg

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.99

$

In Stock, Qty 9

0

13

Cub Cadet 747-0479

Rod, Tiller Flap, 1/4 Dia X 29.7 Lg

$

$

Not available

14

Cub Cadet 784-0055

Plate, LH Tiller Housing

Variations

784-0055-0498

Cub Cadet 784-0055-0498

PLATE, LH TILLER HOUSING - OLD CUB YELLOW (0498)

$

$

Not available

784-0055-0637

Cub Cadet 784-0055-0637

PLATE ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

15

Cub Cadet 784-0056

Plate, RH Tiller Housing

Variations

784-0056-0498

Cub Cadet 784-0056-0498

PLATE, RH TILLER HOUSING - OLD CUB YELLOW (0498)

$

$

Not available

784-0056-0637

Cub Cadet 784-0056-0637

PLATE (RH) (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

16

Cub Cadet 784-0058

Cover, RH Tine Shield End

Variations

784-0058-0498

Cub Cadet 784-0058-0498

COVER, RH TINE SHIELD END - OLD CUB YELLOW (0498)

$

$

Not available

784-0058-0637

Cub Cadet 784-0058-0637

COVER, RH TINE SHIELD END - POWDER BLACK (0637)

$

$

Not available

$

$

17

Cub Cadet 784-0066

Plate, Tubing Support

$

$

Not available

18

Cub Cadet 784-0069

Support, Tine Shield Hinge

Variations

784-0069-0637

Cub Cadet 784-0069-0637

SUPPORT-FLAP (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

19

Cub Cadet 784-0074

Shield, Tine, 30" Lg

Variations

784-0074-0498

Cub Cadet 784-0074-0498

TINE SHIELD (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

784-0074-0637

Cub Cadet 784-0074-0637

TINE SHIELD POWDER BLA - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 777-0108

Graphic, Cut Foot

$

$

Not available

Cub Cadet 777-0109

Graphic, Caution

$

$

Not available

Cub Cadet 777-0219

Graphic, Man & Nature

$

$

Currently unavailable

20

Cub Cadet 784-0076

Flap, Tine Shield Hinge

Variations

784-0076-0498

Cub Cadet 784-0076-0498

HINGE ASSEMBLY-FLAP (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

784-0076-0637

Cub Cadet 784-0076-0637

HINGE ASSY-FLAP - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 777-2086

Graphic, Rotating Tine

$

$

Not available

Cub Cadet 777-4455

Graphic, Caution

$

$

Currently unavailable
