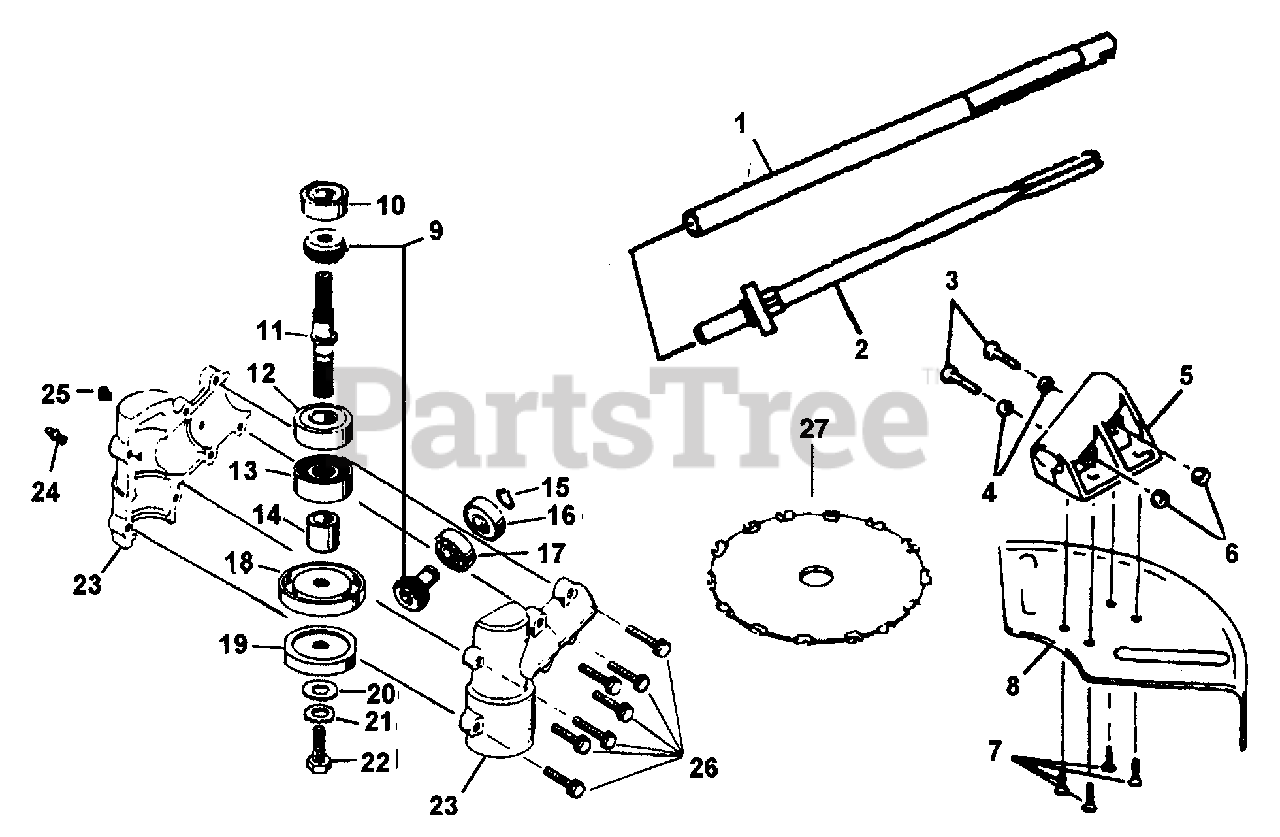

3041 (UT-26310) - Green Machine Brush Cutter Attachment (1996-01) Driveshaft - Guard - Gearshaft Attachment Parts Diagram

Brush Cutter Attachment

Driveshaft - Guard - Gearshaft Attachment Parts Diagram

  • Title

1

Homelite GM280331

TUBE ASSY.

$

$

Not available

2

Homelite GM357802

FLEX CABLE

$

$

Currently unavailable

Homelite GM24700

BLADE GUARD ASSY.
(Superseded to GM24700A)

$

$

Not available

3

Homelite GM011417

SCREW

Note: Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Not available

4

Homelite GM040002

WASHER

$

$

Not available

5

Homelite GM245201

BRACKET

$

$

Not available

6

Homelite GM051012

NUT

$

$

Currently unavailable

7

Homelite GM011423

SCREW, SELF TAPPING
(Superseded to UP06817)

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

8

Homelite GM247001

GUARD
(Superseded to GM24700A)

$

$

Not available

Homelite GM300352

GEARCASE ASSY.

$

$

Currently unavailable

9

Homelite GM300623

GEAR SET

$94.99

$

Usually ships in 3-7 days

0

10

Homelite GM070006

BEARING
(Superseded to UP06387)

$

$

Not available

11

Homelite GM300055

SHAFT, GEAR

$

$

Currently unavailable

12

Homelite GM070005

BEARING
(Superseded to 09146)

$

$

Not available

13

Homelite GM080003

SEAL

$

$

Currently unavailable

14

Homelite GM300065

COLLAR

$

$

Currently unavailable

15

Homelite GM060007

SNAP RING

$

$

Not available

16

Homelite GM070006

BEARING
(Superseded to UP06387)

$

$

Not available

17

Homelite GM070007

BEARING
(Superseded to UP06393)

$

$

Not available

18

Homelite GM300070

HOLDER A

$

$

Not available

19

Homelite GM300075

HOLDER B
(Superseded to UP06798)

$11.99

$

Usually ships in 3-7 days

0

20

Homelite GM041003

WASHER, FLAT

$

$

Not available

21

Homelite GM040007

WASHER, LOCKING
(Superseded to UP06519)

$

$

Not available

22

Homelite GM300080

BOLT, L.H. THREAD
(Superseded to UP08260)

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available

23

Homelite GM300610

HOUSING SET

$

$

Currently unavailable

24

Homelite GM286710

ZERK FITTING

$

$

Not available

25

Homelite 82459

SCREW, SELF TAPPING

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available

26

Homelite GM011309

SCREW, SELF TAPPING
(Superseded to UP07929)

$

$

Not available

27

Homelite DG07817

8" XRT BLADE

$

$

Currently unavailable

28

Homelite DG07797

6" HEAD ASSY

Note: (Optional); Not shown

$

$

Currently unavailable

29

Homelite DG07796

4" HEAD ASSY

Note: (Optional); Not shown; Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available
