30433 - Toro 36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 260000001 - 260999999) (2006) DECK, SPINDLE AND BLADE ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

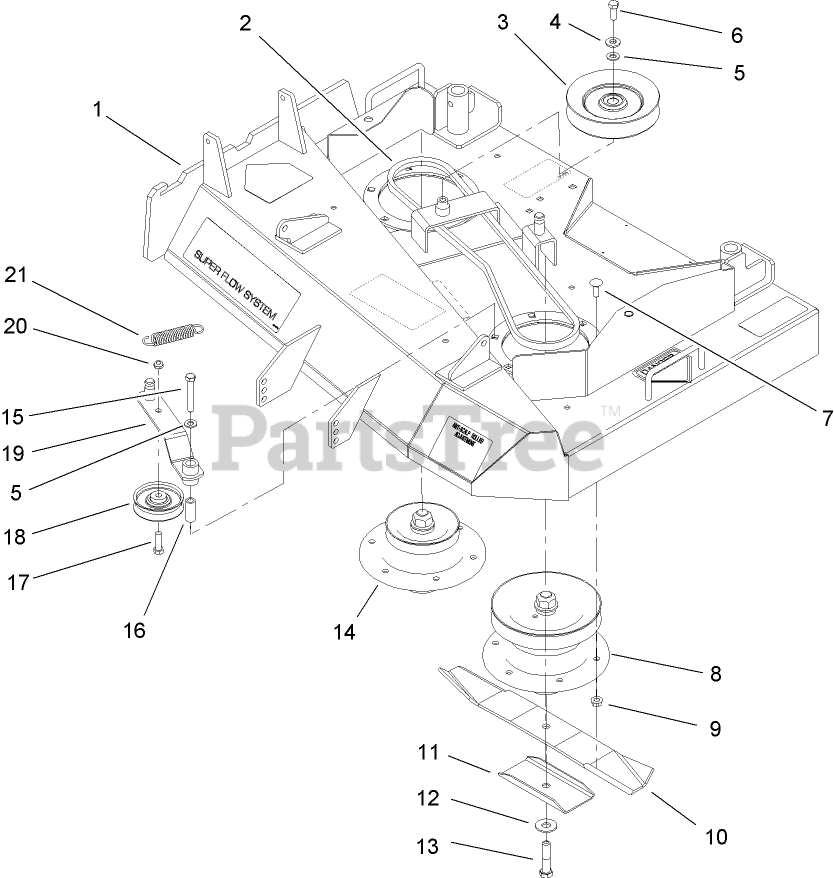

DECK, SPINDLE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 106-0615

36 INCH DECK ASM

$

$

Not available

2

Toro 51-3530

V-BELT-DRIVE, DECK

$35.99

$

In Stock, only 4 left!

0

3

Toro 1-633166

PULLEY-IDLER

$60.99

$

In Stock, Qty 20+

0

4

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

7

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

8

Toro 106-0785

SPINDLE HOUSING ASM

$

$

Not available

9

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

10

Toro 56-2390-03

BLADE-SAIL, EXTRA HIGH

$39.99

$

In Stock, Qty 10

0

11

Toro 92-9820

STIFFENER-BLADE

$65.99

$

Usually ships in 3-6 days

0

12

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 6

0

13

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, only 3 left!

0

14

Toro 106-0787

SPINDLE HOUSING ASM

$627.99

$

Usually ships in 3-6 days

0

15

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 51-3641

SLEEVE-PIVOT, IDLER

$21.99

$

In Stock, only 2 left!

0

17

Toro 3211-5

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

18

Toro 51-3660

PULLEY-IDLER

$42.99

$

In Stock, only 4 left!

0

19

Toro 105-0889

IDLER ARM ASM

$172.99

$

Usually ships in 3-6 days

0

20

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

21

Toro 105-2673

SPRING-EXTENSION

$29.99

$

Usually ships in 3-6 days

0
