304447-0323-E1 - Briggs & Stratton Horizontal Engine Electric Starter Parts Diagram

Horizontal Engine

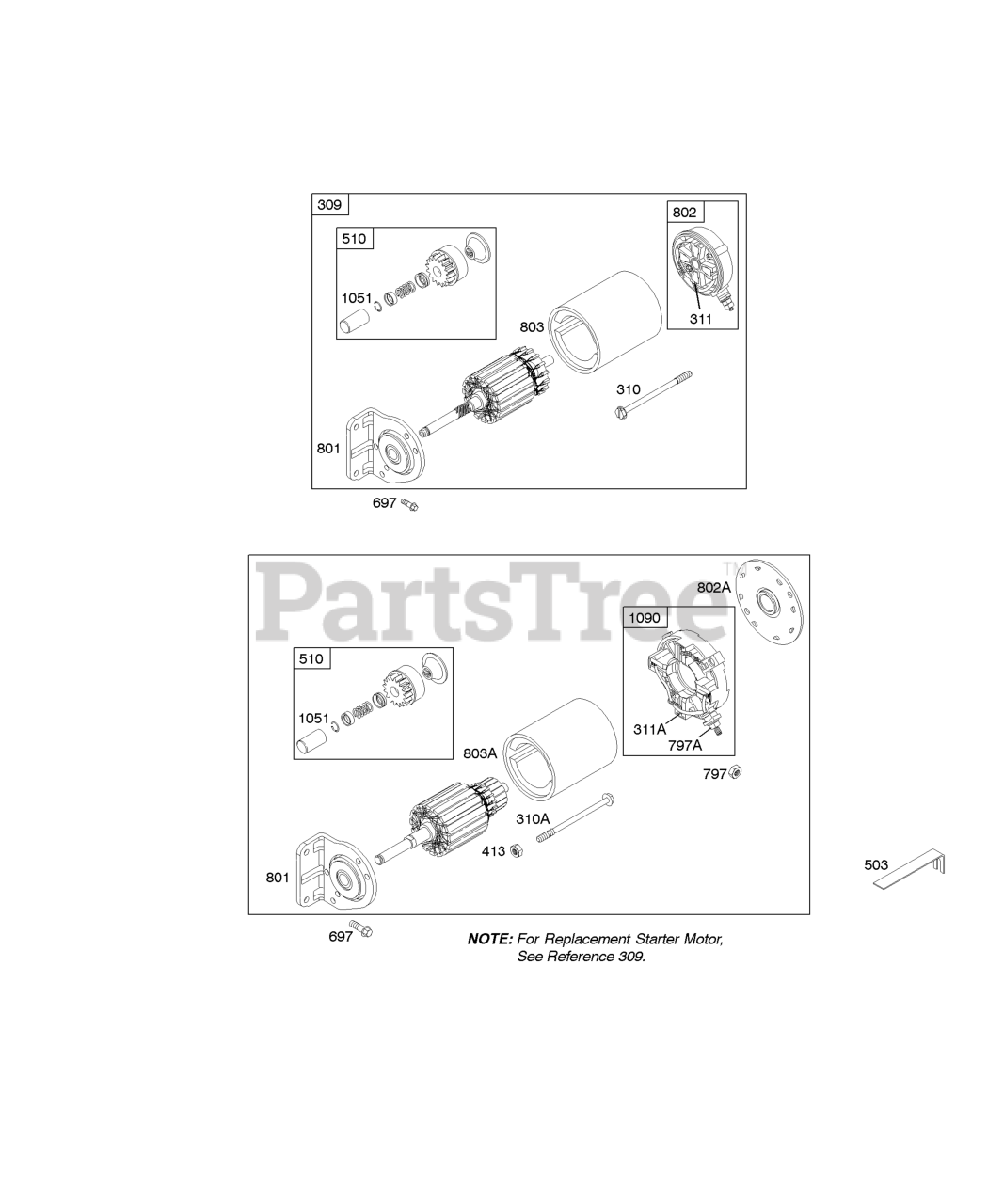

Electric Starter Parts Diagram

  • Title

309

Briggs & Stratton 691564

Motor-Starter

Note: (Steel Ring Gear Only)

$184.99

$

In Stock, only 1 left!

0

310

Briggs & Stratton 496880

Screw

Note: (Starter Motor)

$4.99

$

Usually ships in 2-12 days

0

310A

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 496887

Brush Set

$29.99

$

Usually ships in 2-12 days

0

311A

Briggs & Stratton 395538

Brush Set

$24.99

$

Usually ships in 2-12 days

0

413

Briggs & Stratton 693587

Nut

Note: (Starter Motor)

$4.99

$

Usually ships in 2-12 days

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 496881

Drive-Starter

$61.99

$

In Stock, only 1 left!

0

697

Briggs & Stratton 692062

Screw

Note: (Drive Cap)

$3.49

$

In Stock, only 3 left!

0

797

Briggs & Stratton 691029

NUT

Note: (Brush Retainer)

$5.49

$

Usually ships in 2-12 days

0

797A

Briggs & Stratton 693167

NUT

Note: (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 808778

Cap-Drive

$28.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 496813

Cap-End

$79.99

$

Usually ships in 2-12 days

0

802A

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 690854

Housing-Starter

$69.99

$

Usually ships in 2-12 days

0

803A

Briggs & Stratton 693547

Housing-Starter

$55.99

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691124

Ring-Retaining

$7.99

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, only 4 left!

0
