30488 - Toro 48" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive (SN: 315000001 - 315999999) (2015) CONTROL PANEL ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive

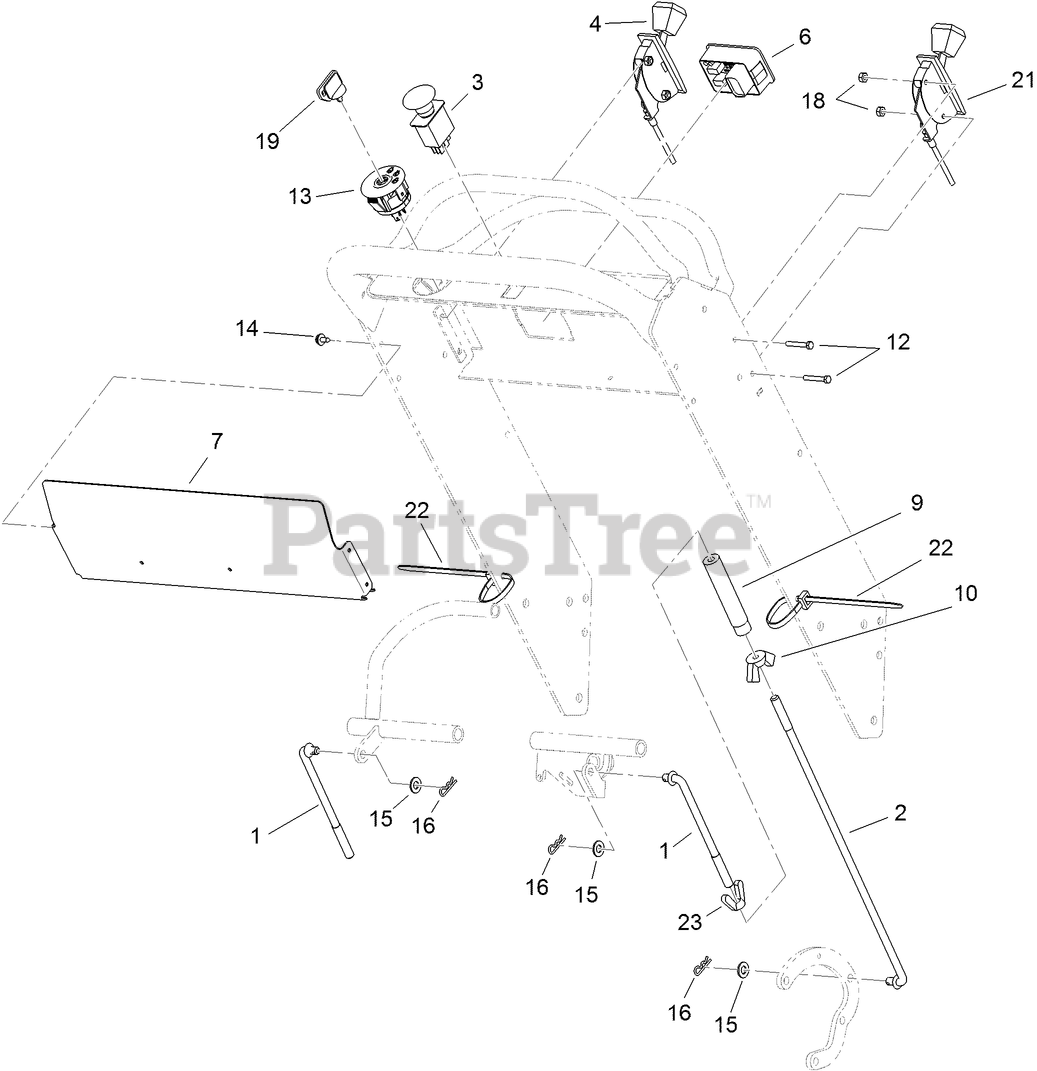

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 114-0275

ROD-CONTROL, UPPER

$39.99

$

Usually ships in 3-6 days

0

2

Toro 114-0276

ROD-CONTROL, LOWER

$49.99

$

Usually ships in 3-6 days

0

3

Toro 114-0279

SWITCH-PTO, ON-ON-(ON)

$62.99

$

In Stock, only 1 left!

0

4

Toro 119-6539

CABLE-THROTTLE

$87.99

$

In Stock, only 4 left!

0

6

Toro 117-3886

MODULE-HOUR METER

$227.99

$

Usually ships in 3-6 days

0

7

Toro 114-0270-03

COVER-PANEL, CONTROL

$129.99

$

Usually ships in 3-6 days

0

9

Toro 95-1504

TURNBUCKLE

$76.99

$

Usually ships in 3-6 days

0

10

Toro 32103-3

NUT-WING

$1.99

$

Usually ships in 3-6 days

0

12

Toro 3290-360

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

13

Toro 116-0050

SWITCH-IGNITION

$41.99

$

In Stock, only 3 left!

0

14

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, only 4 left!

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 14

0

16

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

18

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 17

0

19

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

21

Toro 110-4995

CABLE-CHOKE

$94.99

$

Usually ships in 3-6 days

0

22

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

23

Toro 114-0281

NUT-WING, LH

$12.99

$

Usually ships in 3-6 days

0
