30496 - Toro 40" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive (SN: 280001101 - 280999999) (2008) DECK ASSEMBLY Parts Diagram

40" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive

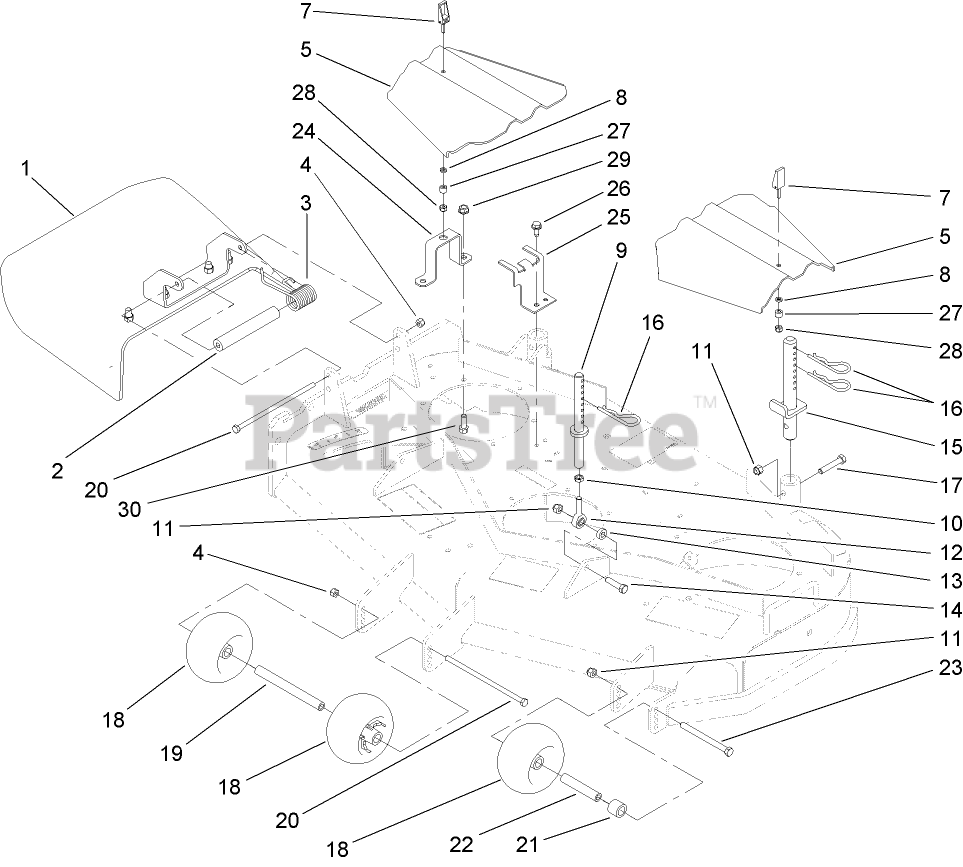

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 110-0790

DEFLECTOR ASM

$303.99

$

Usually ships in 3-6 days

0

2

Toro 105-4622

SPACER

$11.99

$

In Stock, only 4 left!

0

3

Toro 104-8554

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 110-6984

COVER-BELT

$

$

Not available

7

Toro 106-6777

HANDLE-LATCH, SWELL

$28.99

$

In Stock, Qty 16

0

8

Toro 99-3058

WASHER

$3.99

$

In Stock, Qty 20+

0

9

Toro 108-2674

FRONT PIN ASM

$103.99

$

Usually ships in 3-6 days

0

10

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 1-613204

BALLJOINT

$34.99

$

In Stock, Qty 20+

0

13

Toro 104-1156

SPACER

$7.99

$

In Stock, only 2 left!

0

14

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 110-2086

REAR PIN ASM

$82.99

$

Usually ships in 3-6 days

0

16

Toro 3290-256

PIN-HAIR

$8.99

$

In Stock, Qty 8

0

17

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

19

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

20

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 12

0

21

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

22

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

23

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

24

Toro 112-7053-01

BRACKET-COVER

$

$

Not available

25

Toro 112-7054-01

BRACKET-COVER

$

$

Not available

26

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

27

Toro 106-6778

BUSHING-LATCH, SWELL

$1.99

$

In Stock, Qty 20+

0

28

Toro 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

30

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0
