305 (190-305-100) - Cub Cadet Twin Rear Bagger att Discharge Chute Parts Diagram

Twin Rear Bagger

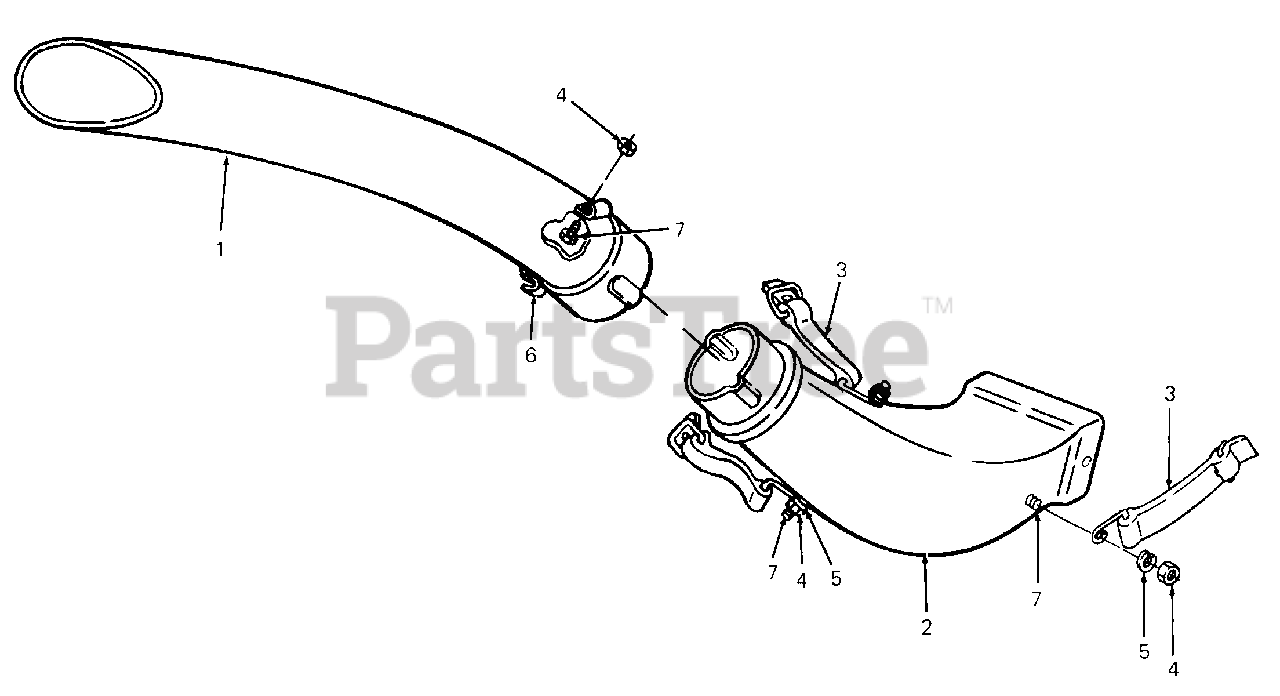

Discharge Chute Parts Diagram

  • Title
1

Cub Cadet 731-0899

Tube, Catcher
(Superseded to 731-0899E)

$103.99

$

In Stock, only 3 left!

0

2

Cub Cadet 731-3071

Chute, Discharge

Note: 731-0827B Discharge Chute will work in place of 731-3071 in this application.

$167.99

$

Usually ships in 3-6 days

0

Cub Cadet 731-0827B

Chute, Discharge
(Superseded to 731-0827D)

$133.99

$

In Stock, only 1 left!

0

3

Cub Cadet 723-0383

Strap Assy, Retainer
(Superseded to 923-0383)

$14.99

$

In Stock, Qty 17

0

Cub Cadet 732-0695

Hook, Wire Eyelet

$3.49

$

In Stock, only 2 left!

0

Cub Cadet 732-0696

Hook, Wire Rectangular

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0175

Washer, Spring, .265 ID x .562 OD
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

6

Cub Cadet 16606

Hook Bracket, Retainer
(Superseded to 96606)

$6.99

$

In Stock, Qty 15

0

7

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 x .62 Lg
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0
