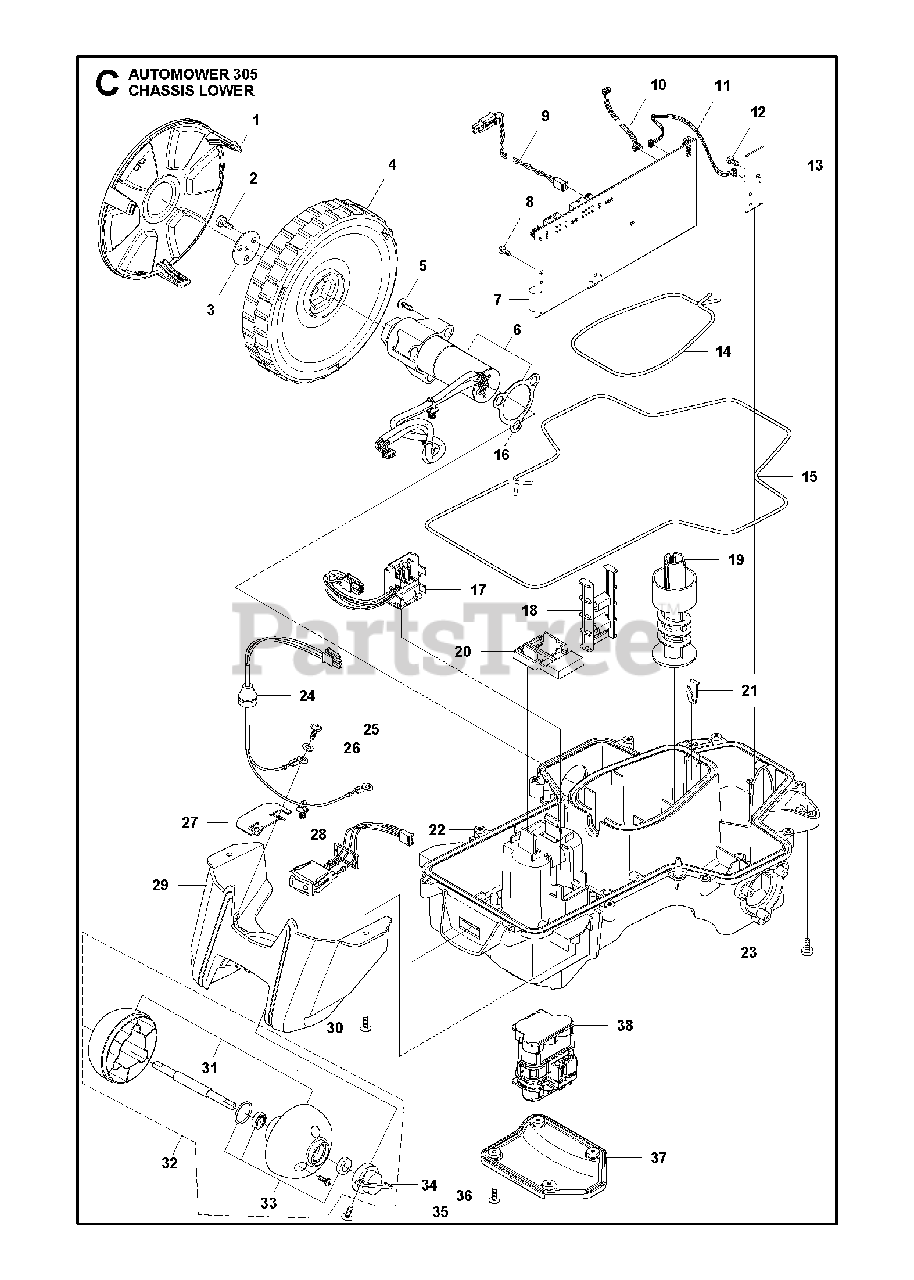

305 - Husqvarna Automower Robotic Lawn Mower (2013-01) CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower

CHASSIS LOWER Parts Diagram

  • Title

1

Husqvarna 577707901

$

$

Currently unavailable

2

Husqvarna 576213902

SCREW ITXPANM M5X12 8

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 577093201

WASHER DRIVE WHEEL

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna 574465101

$

$

Currently unavailable

5

Husqvarna 575543314

SCREW 14MM

Note: grey (14mm)

$3.49

$

In Stock, Qty 11

0

6

Husqvarna 577839902

$

$

Currently unavailable

7

Husqvarna 575640501

$

$

Currently unavailable

8

Husqvarna 535130310

SCREW

Note: (10mm)

$3.49

$

In Stock, only 4 left!

0

9

Husqvarna 576220201

LOOM BUZZER EXTENSION

$13.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574479201

$

$

Currently unavailable

11

Husqvarna 574479001

$

$

Currently unavailable

12

Husqvarna 535130310

SCREW

Note: (10mm)

$3.49

$

In Stock, only 4 left!

0

13

Husqvarna 575640901

$

$

Currently unavailable

14

Husqvarna 577753601

Note: (10 pcs)

$

$

Currently unavailable

14

Husqvarna 574874704

SEALING STRIP P1

$22.99

$

Usually ships in 3-10 days

0

15

Husqvarna 577843601

Note: (10 pcs)

$

$

Currently unavailable

15

Husqvarna 574874703

SEALING STRIP P1 CHAS

$34.99

$

Usually ships in 3-10 days

0

16

Husqvarna 574373701

GASKET MOTOR FLANGE

Note: . 6

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 574479801

LOOM BATTERY 18 V LLI

$26.99

$

Usually ships in 3-10 days

0

18

Husqvarna 574501901

GUIDE RAIL MOTOR BOWL

$9.49

$

Usually ships in 3-10 days

0

19

Husqvarna 574484601

SCREW HEIGHT ADJUSTME

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 575408201

LOCK BATTERY PLUG

$9.49

$

Usually ships in 3-10 days

0

21

Husqvarna 577103201

LOCKING SPRING

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 577846201

$

$

Currently unavailable

23

Husqvarna 576213901

SCREW ITXPANM M5X12 8
(Superseded to 590740201)

$2.49

$

Usually ships in 3-10 days

0

24

Husqvarna 574477702

$

$

Currently unavailable

25

Husqvarna 575543314

SCREW 14MM

Note: grey (14mm)

$3.49

$

In Stock, Qty 11

0

26

Husqvarna 535087401

FIBER WASHER

$

$

Not available

27

Husqvarna 574490001

$

$

Currently unavailable

28

Husqvarna 574479401

$

$

Currently unavailable

29

Husqvarna 574467201

$

$

Currently unavailable

30

Husqvarna 575543314

SCREW 14MM

Note: (14mm)

$3.49

$

In Stock, Qty 11

0

31

Husqvarna 583853901

Note: . 32

$

$

Currently unavailable

32

Husqvarna 578275101

$

$

Currently unavailable

33

Husqvarna 578275201

REAR WHEEL BEARING AN

Note: Bearing (x2) sealing (x2) O-ring (x1). 32

$45.99

$

Usually ships in 3-10 days

0

34

Husqvarna 577715001

BEARING HOUSING REAR

Note: . 32

$5.99

$

In Stock, only 3 left!

0

35

Husqvarna 575543314

SCREW 14MM

Note: grey (14mm)

$3.49

$

In Stock, Qty 11

0

36

Husqvarna 574450101

SCREW ITXPANT

$3.49

$

Usually ships in 3-10 days

0

37

Husqvarna 574467301

Battery Cover

$22.99

$

Usually ships in 3-10 days

0

38

Husqvarna 574476801

Note: 18V

$

$

Currently unavailable
