305 - Husqvarna Automower Robotic Lawn Mower (2020) CHASSIS UPPER Parts Diagram

Automower Robotic Lawn Mower

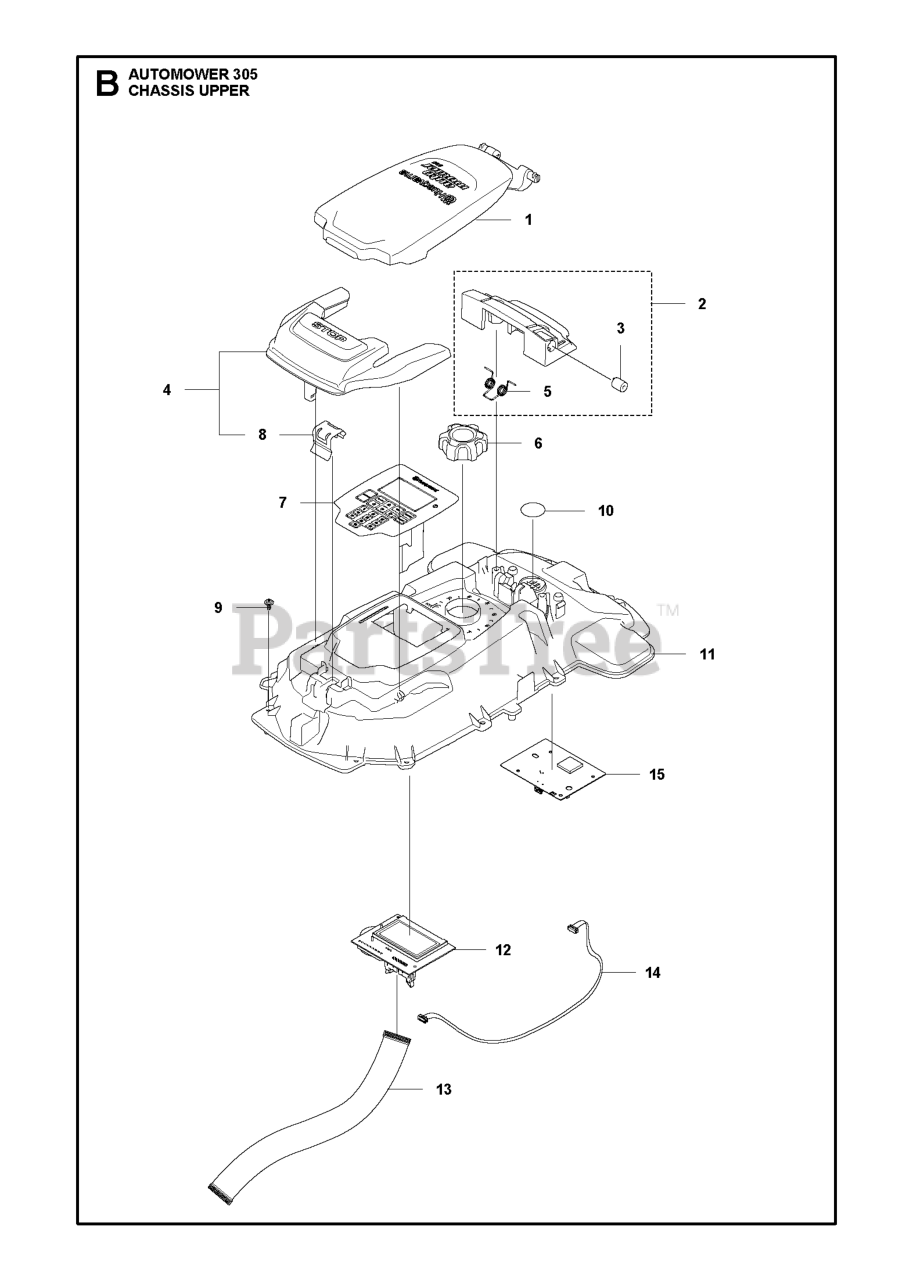

CHASSIS UPPER Parts Diagram

  • Title

12

Husqvarna 597233801

NEEDS DESCRIPTION

$

$

Currently unavailable

11

Husqvarna 596529401

NEEDS DESCRIPTION

Note: Upper

$

$

Currently unavailable

15

Husqvarna 586662309

NEEDS DESCRIPTION

Note: AM Connect, KIT, UK,IE,CH,IT,ES,PT,DE,FR,AT,NL,BE,LUX,SI,SE,NO,DK,FI

$

$

Currently unavailable

3

Husqvarna 580352302

DAMPER TORSION FA 1100

$

$

Not available

14

Husqvarna 593148901

Wires

Note: L=460mm

$22.99

$

Usually ships in 3-10 days

0

6

Husqvarna 585281401

KNOB HEIGHT ADJUSTMENT

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 586662307

GPS MODULE 2G + 3G

Note: AM Connect, KIT, CZ,PL,SK,HU,UA,RO,GR,HR,TR,BG,RU,LT,LV,EE,ZA,BR,CL,UY,PY,AR,CO,EC,PE,CR

$330.99

$

Usually ships in 3-10 days

0

13

Husqvarna 590110601

CABLE ASSY HMI CABLE L=185MM

Note: HMI Cable

$28.99

$

Usually ships in 3-10 days

0

9

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 577753701

KIT AIR FILTER KIT 305 - 10 PC

$68.99

$

Usually ships in 3-10 days

0

15

Husqvarna 586662308

NEEDS DESCRIPTION

Note: AM Connect, Kit AUS/NZ

$

$

Currently unavailable

8

Husqvarna 597349502

SPRING BUTTON STOP DELTA SEAL

Note: Stop Button

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 597769701

NEEDS DESCRIPTION

Note: Stop Button Assy

$

$

Currently unavailable

5

Husqvarna 585255401

TORSION SPRING DT=1,3MM

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 597274301

NEEDS DESCRIPTION

Note: AM 305

$

$

Currently unavailable

2

Husqvarna 597758101

SUPPORT FRONT ASSY

Note: Front Assy

$39.99

$

Usually ships in 3-10 days

0

15

Husqvarna 586662311

NEEDS DESCRIPTION

Note: AM Connect, Kit US/CAN

$340.99

$

Usually ships in 3-10 days

0

1

Husqvarna 597232401

NEEDS DESCRIPTION

Note: HMI Cover

$

$

Currently unavailable
