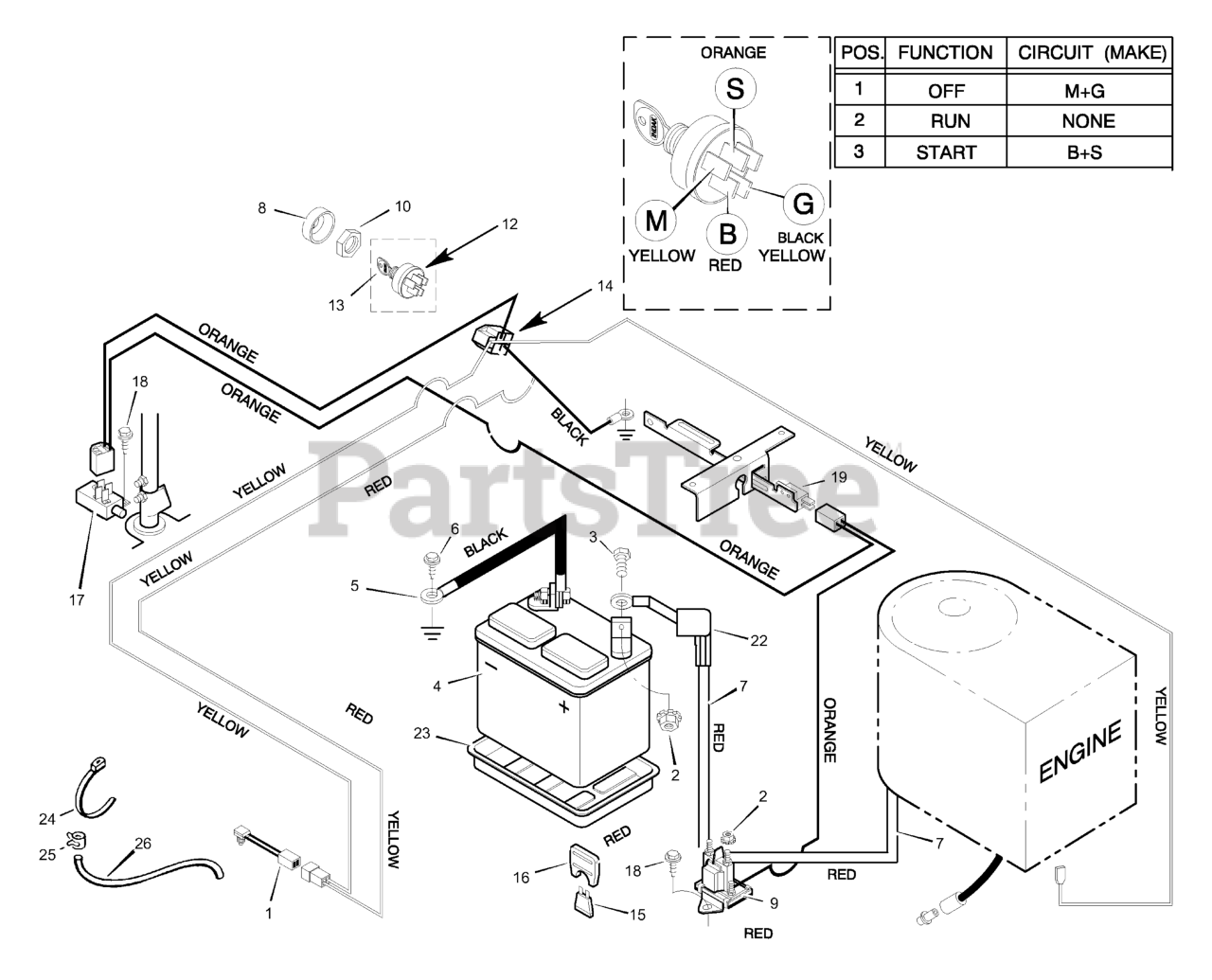

30503x11A - Murray 30" Rear-Engine Riding Mower (1999) Electrical System Parts Diagram

30" Rear-Engine Riding Mower

Electrical System Parts Diagram

  • Title
1

Murray MU91031

Switch, Seat Sensor

$

$

Currently unavailable

2

Murray MU15X66

Locknut

$

$

Currently unavailable

3

Murray MU1X38

BOLT, Hex

$

$

Currently unavailable

4

Battery

$

$

Not available

5

Murray MU24X3

CABLE, Battery Ground (Black)

$

$

Currently unavailable

6

$

$

Currently unavailable

7

Murray MU24X24

CABLE, Positive Battery (Red)

$

$

Currently unavailable

8

Murray MU91488

Cap, Ignition Switch

$

$

Currently unavailable

9

Murray MU94613

Solenoid

$

$

Currently unavailable

10

Murray MU91489

NUT, Ignition Switch

$

$

Currently unavailable

12

Murray MU21064

Switch, Ignition

$

$

Currently unavailable

13

Murray MU21079

Key, Ignition

$

$

Currently unavailable

14

Murray MU250X84

Harness, Wire

$

$

Currently unavailable

15

$

$

Currently unavailable

16

Murray MU407078

Holder, Fuse

$

$

Currently unavailable

17

Murray MU91032

Switch, Attachment Clutch

$

$

Currently unavailable

18

$

$

Currently unavailable

19

Murray MU24273

Switch, Limit

$

$

Currently unavailable

22

Murray MU54148

Cover, Terminal

$

$

Currently unavailable

23

Murray MU91896

Tray, Battery

$

$

Currently unavailable

24

Murray MU32618

Strap, Tie

$

$

Currently unavailable

25

$

$

Currently unavailable

26

Murray MU91584

Tube, Battery Drain

$

$

Currently unavailable
