30523 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp (SN: 230000001 - 230005000) (2003) DECK ASSEMBLY Parts Diagram

48" ProLine Walk-Behind Mower, Pistol Grip, Gear Drive, 15hp

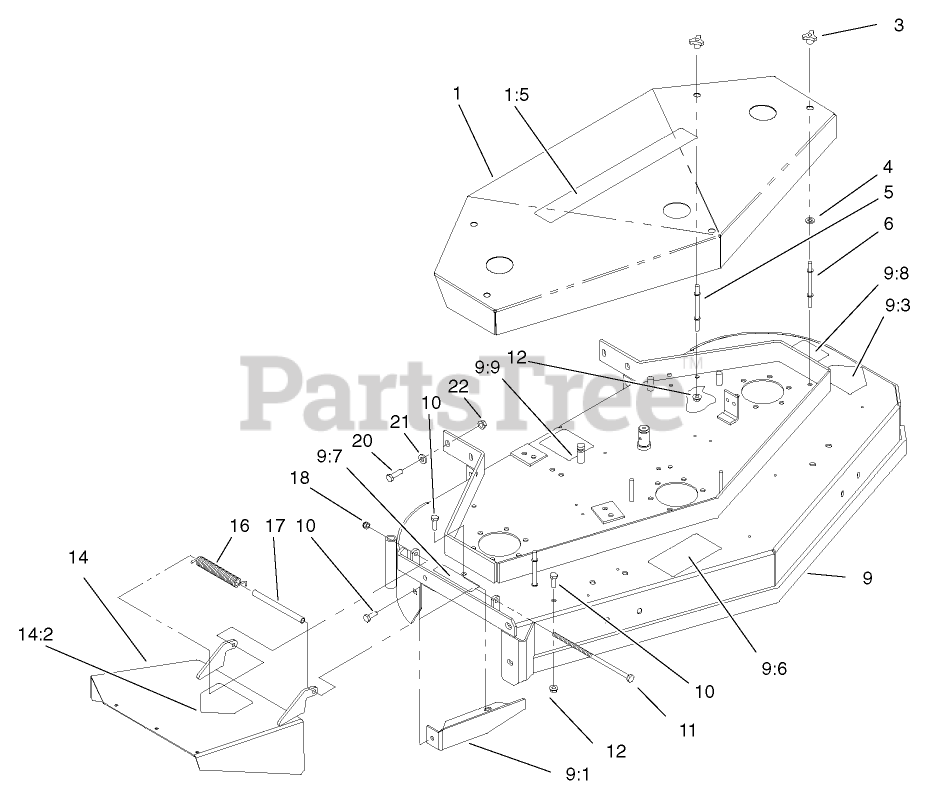

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 1-404246

SHIELD-BELT

$

$

Not available

1:5

Toro 95-5512

Decal-Proline 48

$35.99

$

Usually ships in 3-6 days

0

3

Toro 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

4

Toro 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

5

Toro 1-303536

STUD-SHIELD, BELT (LONG)

$7.99

$

In Stock, Qty 20+

0

6

Toro 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

9

Toro 1-404270

DECK

$

$

Not available

9:1

Toro 1-402107-01

BAFFLE-DOGLEG

$

$

Not available

9:3

Toro 1-403005

DECAL-DANGER

$5.49

$

In Stock, Qty 20+

0

9:6

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

9:7

Toro 98-5954

DECAL-COVER, MISSING

$8.49

$

In Stock, Qty 10

0

9:8

Toro 98-5130

DECAL-TORQUE, BOLT

$30.99

$

Usually ships in 3-6 days

0

9:9

Toro 99-3943

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 3 left!

0

10

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 1-800291

SCREW-HH

$33.99

$

Usually ships in 3-6 days

0

12

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 1-404245

CHUTE

$276.99

$

Usually ships in 3-6 days

0

14:2

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

16

Toro 98-3280

SPRING-DEFLECTOR

$27.99

$

Usually ships in 3-6 days

0

17

Toro 1-323636

SPACER-SPRING

$42.99

$

Usually ships in 3-6 days

0

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0
