30524 - Toro 36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 230000001 - 230999999) (2003) LINKAGE ASSEMBLY Parts Diagram

36" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

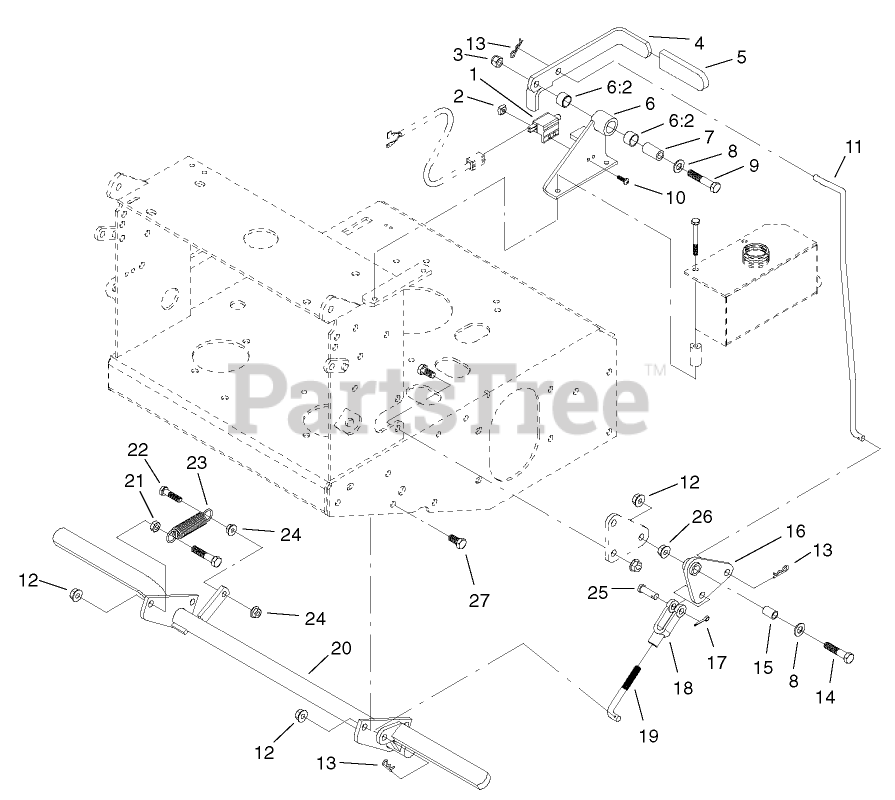

LINKAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 1-513051

SWITCH-OPEN, NORMALLY

$18.99

$

In Stock, Qty 9

0

2

Toro 1-804002

Nut-SQH

$

$

Not available

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 1-412501-03

Lever-Parkbrake
(Superseded to 116-1725-03)

$25.99

$

Usually ships in 3-6 days

0

5

Toro 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 8

0

6

Toro 1-414504

Bracket ASM

$87.99

$

Usually ships in 3-6 days

0

6:2

Toro 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 20+

0

7

Toro 1-413344

Bushing-Pivot

$19.99

$

In Stock, only 3 left!

0

8

Toro 1-805259

Washer-Flat

$

$

Not available

9

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 1-803028

XREF 3290-500
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

11

Toro 1-413496

Linkage-Upper

$58.99

$

Usually ships in 3-6 days

0

12

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

13

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

14

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-303548

Bushing-Plastic

$5.49

$

In Stock, only 3 left!

0

16

Toro 1-414508

Bellcrank ASM

$60.99

$

Usually ships in 3-6 days

0

17

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

18

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, only 1 left!

0

19

Toro 1-413489

Linkage-Lower

$22.99

$

In Stock, only 1 left!

0

20

Toro 103-2085-03

BRAKE ASM
(Superseded to 126-1599)

$169.99

$

Usually ships in 3-6 days

0

21

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

22

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

23

Toro 1-323161

SPRING-IDLER

$11.99

$

In Stock, Qty 6

0

24

Toro 1-809001

Nut-Whizlock

$

$

Not available

25

Toro 1-808285

PIN-CLEVIS

$3.49

$

In Stock, only 4 left!

0

26

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

27

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0
