30528 - Toro 48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp (SN: 230000001 - 230999999) (2003) ELECTRICAL ASSEMBLY Parts Diagram

48" ProLine Walk-Behind Mower, Pistol Grip, Hydro Drive, 15hp

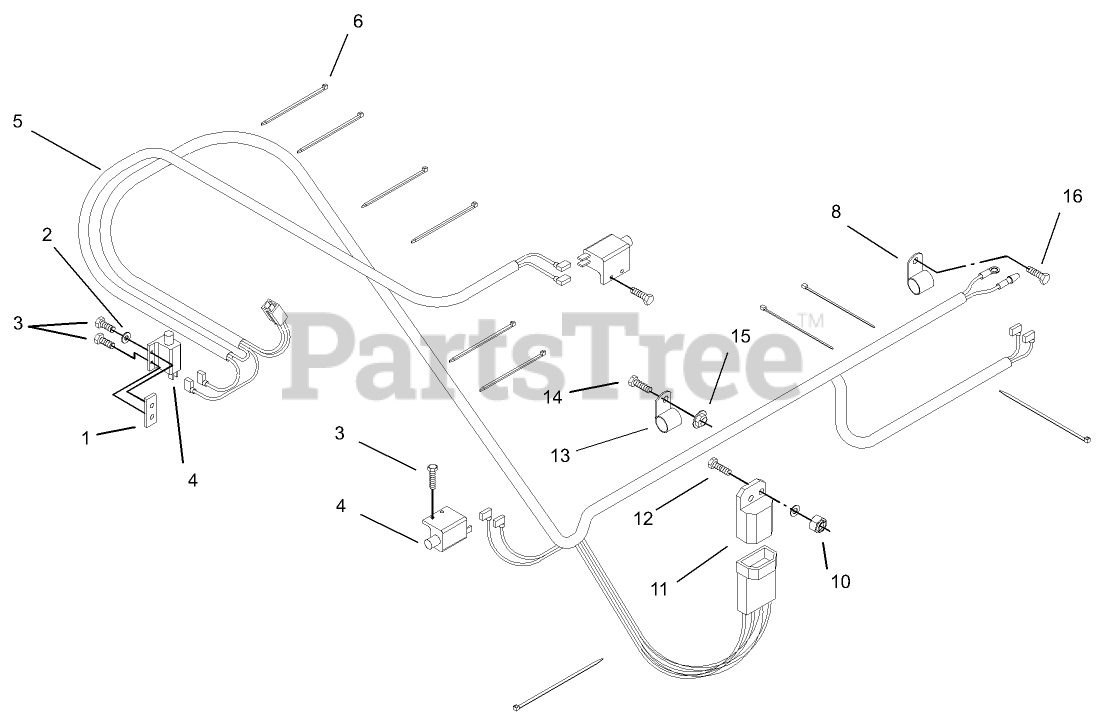

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 14

0

2

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

4

Toro 1-513051

SWITCH-OPEN, NORMALLY

$18.99

$

In Stock, only 4 left!

0

5

Toro 103-2286

Harness-Wire

$113.99

$

Usually ships in 3-6 days

0

6

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

8

Toro 1-413510

Clip-Loom

$2.99

$

In Stock, Qty 17

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 1-323430

MODULE-INTERLOCK

$135.99

$

In Stock, only 2 left!

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 8

0

15

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

16

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 8

0
