30540x20G - Murray 30" Lawn Tractor (1998) Mower Housing Parts Diagram

30" Lawn Tractor

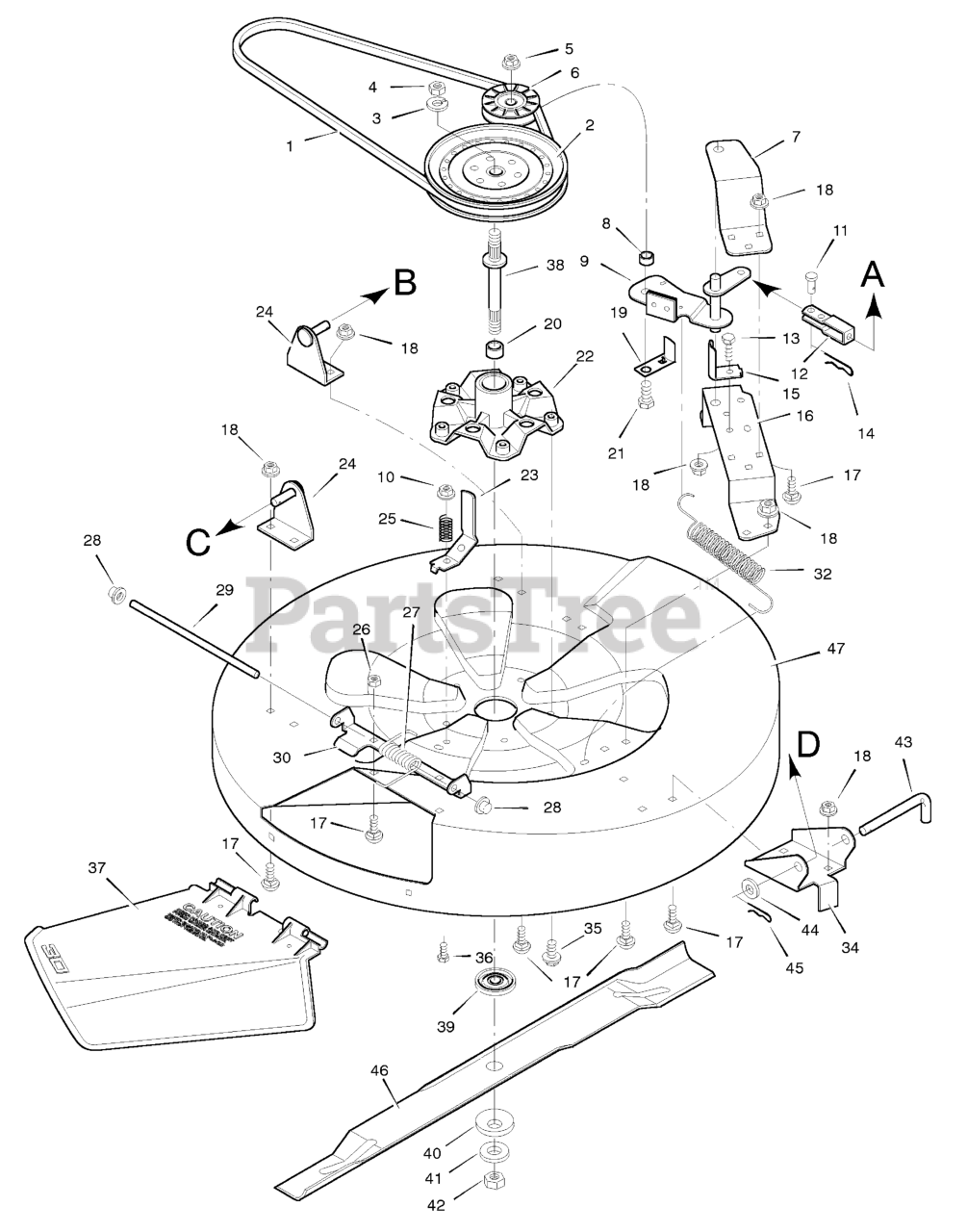

Mower Housing Parts Diagram

  • Title

1

Murray 037X57MA

Belt, Mower Drive

$35.99

$

Usually ships in 2-12 days

0

2

Murray 091951

Pulley, Splined

$

$

Currently unavailable

3

Murray 018X33MA

Lockwasher

$4.49

$

Usually ships in 2-12 days

0

4

Murray 15X100MA

Locknut, Hex

$3.99

$

In Stock, Qty 17

0

5

Murray 015X41MA

Nut, Hex

$5.49

$

Usually ships in 2-12 days

0

6

Murray 091178

Pulley, Idler

$18.99

$

In Stock, Qty 9

0

7

Murray 055921E700

Bracket, Upper Idler

$

$

Currently unavailable

8

Murray 055895MA

Spacer

$3.99

$

Usually ships in 2-12 days

0

9

Murray 055979MA

Assembly, Blade Idler

$77.99

$

Usually ships in 2-12 days

0

10

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

11

Murray 029X99MA

Pin, Clevis

$3.99

$

In Stock, only 1 left!

0

12

Murray 024471 Z

Clevis

$

$

Currently unavailable

13

Murray 001X45MA

Bolt, Hex
(Superseded to 703822)

$4.49

$

Usually ships in 2-12 days

0

14

Murray 0031X6MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

15

Murray 55977E700

Guide, Belt

$

$

Currently unavailable

16

Murray 55920E700

Bracket, Lower Idler

$

$

Currently unavailable

17

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

18

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

19

Murray 55894E700

Guide, Belt

$

$

Currently unavailable

20

Murray 091925MA

Spacer

$13.99

$

In Stock, only 2 left!

0

21

Murray 01X127MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

22

Murray 055962

Housing, Mandrel

$81.99

$

In Stock, only 2 left!

0

23

Murray 055956 Z

Guide, Belt

$

$

Currently unavailable

24

Murray 055974E700

Bracket, Hanger

$

$

Currently unavailable

25

Murray 0164X1MA

Spring, Compression

$

$

Not available

26

Murray 015X88MA

Nut, Hex
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

27

Murray 0166X4MA

Spring - Torsional

$6.99

$

In Stock, Qty 10

0

28

Murray 028X23MA

Push On Cap
(Superseded to 703948)

$4.49

$

In Stock, Qty 19

0

29

Murray 021197 Z

Rod

$

$

Currently unavailable

30

Murray 56213E700

Hinge, Chute Deflector

$

$

Not available

32

Murray 165X68MA

Spring, Extension

$24.99

$

Usually ships in 2-12 days

0

34

Murray 055916E700

Bracket, Front

$

$

Currently unavailable

35

Murray 26X216MA

Screw

$6.99

$

In Stock, only 1 left!

0

36

Murray 001X75MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

37

Murray 055971MA

Deflector, Chute

$

$

Not available

38

Murray 091921

Mandrel

$21.99

$

In Stock, only 3 left!

0

39

Murray 092466MA

Adapter, Blade

$10.99

$

In Stock, Qty 6

0

40

Murray 17X166MA

Washer, Belleville

$13.99

$

In Stock, only 3 left!

0

41

Murray 17X165MA

Washer, Hardened

$16.99

$

In Stock, only 2 left!

0

42

Murray 15X100MA

Nut, Hex

$3.99

$

In Stock, Qty 17

0

43

Murray 090828 Z

Pin, Pull

$

$

Currently unavailable

44

Murray 017X67 Z

Washer

$

$

Currently unavailable

45

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

46

Murray 055793E701MA

Blade, Standard

$

$

Not available

47

UNKNOWN

$

$

Not available

--

Murray 403330

Mower Housing, Complete

Note: (Includes Ref. No's. 1-47)

$

$

Not available
