30544 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 005000001 - 005999999) (1985) Cutting Unit Model No. 30544 (continued) Parts Diagram

44" Mower Deck for Groundsmaster 120

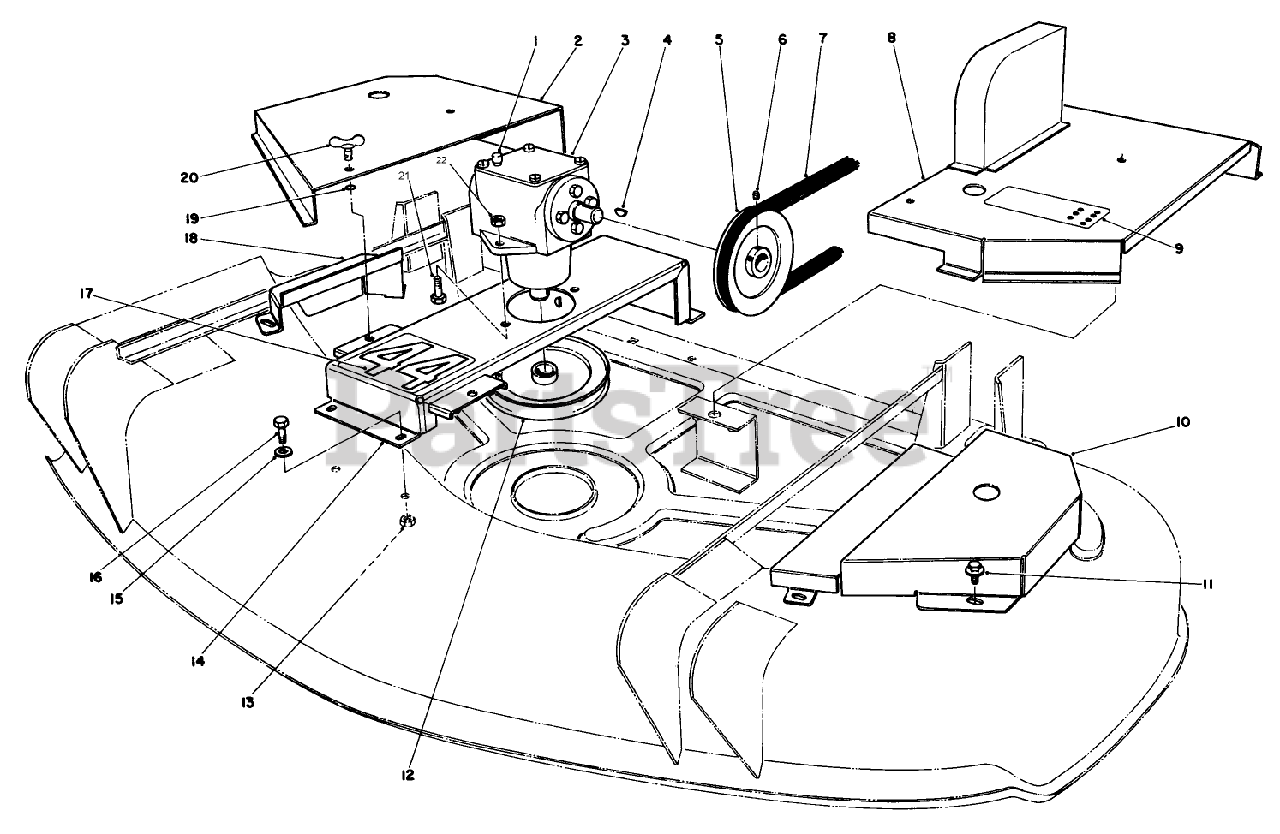

Cutting Unit Model No. 30544 (continued) Parts Diagram

  • Title

1

Toro 302-14

VENT

$10.99

$

Usually ships in 3-6 days

0

2

Toro 54-2240

See Supercession: 54-2240-01
(Superseded to 54-2240-01)

$183.99

$

Usually ships in 3-6 days

0

3

Toro 54-2320

DISCONTINUED

$

$

Not available

4

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

5

Toro 54-2360

DISCONTINUED

$

$

Not available

6

Toro 3245-7

SCREW-SET

$

$

Currently unavailable

7

Toro 54-1360

V-BELT-DRIVE, DECK

$42.99

$

Usually ships in 3-6 days

0

8

Toro 55-7040

See Supercession: 55-7040-01
(Superseded to 55-7040-01)

$297.99

$

Usually ships in 3-6 days

0

9

Toro 42-6860

DISCONTINUED

$

$

Not available

10

Toro 54-2220

See Supercession: 54-2220-01
(Superseded to 54-2220-01)

$

$

Not available

11

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

12

Toro 54-2350

DISCONTINUED

$

$

Not available

13

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 5

0

14

Toro 55-7030

See Supercession: 105-4605-01
(Superseded to 105-4605-01)

$

$

Not available

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 54-2760

DECAL-44 INCH

$

$

Not available

18

Toro 54-2250

See Supercession: 54-2250-01
(Superseded to 54-2250-01)

$

$

Not available

19

Toro 249-35

RING-RETAINING

$

$

Not available

20

Toro 249-36

STUD-HEAD, WING

$42.99

$

Usually ships in 3-6 days

0

21

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, only 3 left!

0
