30544 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 006000001 - 006999999) (1986) Baffles Shroud-Engine Kohler Model No. Kt17qs Type No. 24324 Parts Diagram

44" Mower Deck for Groundsmaster 120

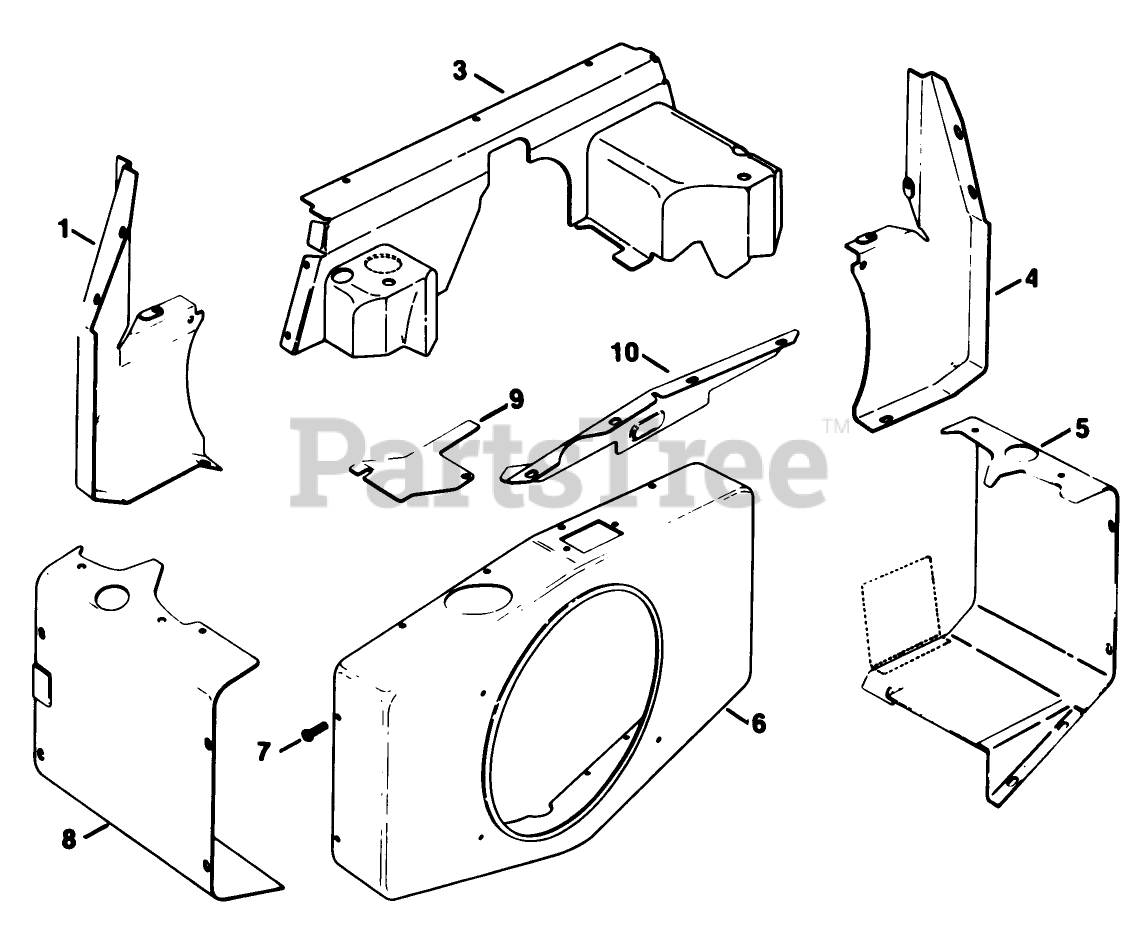

Baffles Shroud-Engine Kohler Model No. Kt17qs Type No. 24324 Parts Diagram

  • Title
1

Toro 52_281_09

Duct-#2 Side Air

$

$

Currently unavailable

3

Toro 52_282_01

Cover-Air Duct

$

$

Currently unavailable

4

Toro 5228114

#1 Side-Air Duct

$

$

Currently unavailable

5

Toro 52_063_12

Baffle-#1 Cylinder Head

$

$

Currently unavailable

6

Toro 5202709

Housing Blower

$

$

Currently unavailable

7

Toro X-67-83

Screw

$

$

Currently unavailable

8

Toro 52_124_30

Baffle-#2 Cylinder Head w/Rear Cylinder Baffle

$

$

Currently unavailable

9

Toro 52_063_01

Baffle-Cylinder Head

$

$

Currently unavailable

10

Toro 52_217_01

Support-Upper Housing

$

$

Currently unavailable
