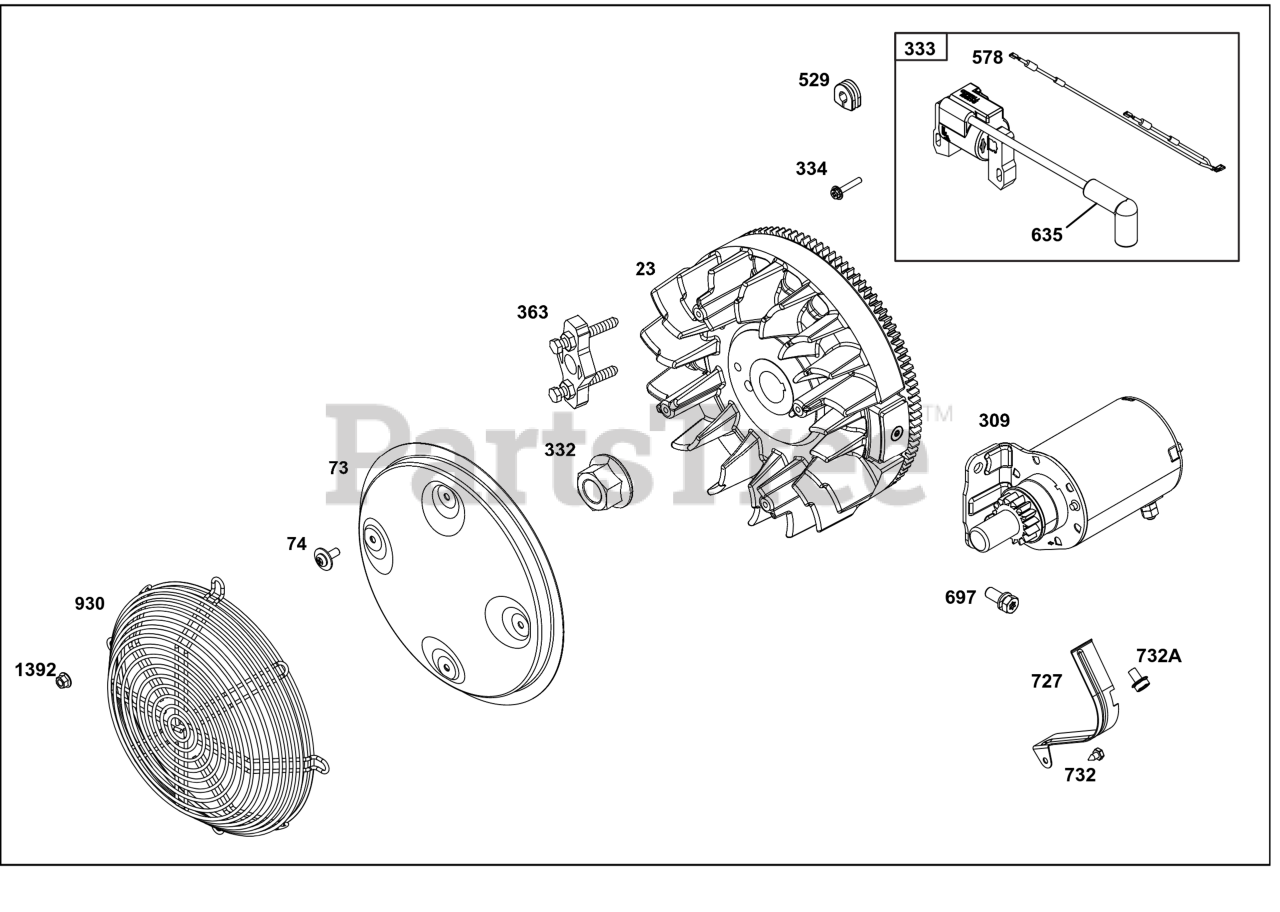

305447-0151-B5 - Briggs & Stratton Horizontal Engine Flywheel, Ignition, and Starter Group Parts Diagram

Horizontal Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 841825

FLYWHEEL
(Superseded to 842514)

$339.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 841441

SCREW
(Superseded to 84007750)

Note: (Rotating Screen)

$3.99

$

In Stock, Qty 14

0

73

Briggs & Stratton 841440

SCREEN, Rotating

$41.99

$

In Stock, only 4 left!

0

309

Briggs & Stratton 844717

MOTOR, Starter

$94.99

$

In Stock, Qty 12

0

332

Briggs & Stratton 690887

NUT

Note: (Flywheel)

$5.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 845606

ARMATURE, Magneto
(Superseded to 84003819)

$75.99

$

In Stock, Qty 8

0

334

Briggs & Stratton 692066

SCREW

Note: (Magneto Armature)

$3.99

$

In Stock, Qty 5

0

363

Briggs & Stratton 19203

PULLER, Flywheel

Note: (71.5mm (2.81in.))

$28.99

$

In Stock, only 2 left!

0

529

Briggs & Stratton 690744

GROMMET

$7.99

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 691902

SCREW

Note: (Starter Motor) (Drive Cap) (M8x20mm)

$3.99

$

In Stock, Qty 15

0

727

Briggs & Stratton 841313

COVER, Starter Drive

$16.99

$

Usually ships in 2-12 days

0

732

Briggs & Stratton 690688

SCREW

Note: (Starter Drive Cover)

$3.99

$

Usually ships in 2-12 days

0

732A

Briggs & Stratton 841233

SCREW

Note: (Starter Drive Cover) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

930

Briggs & Stratton 846284

GUARD, Rewind

$53.99

$

Usually ships in 2-12 days

0

1392

Briggs & Stratton 690939

NUT

Note: (Rewind Guard)

$3.49

$

In Stock, only 2 left!

0
