305447-0615-F1 - Briggs & Stratton Horizontal Engine Carburetor and Fuel Supply Group Parts Diagram

Horizontal Engine

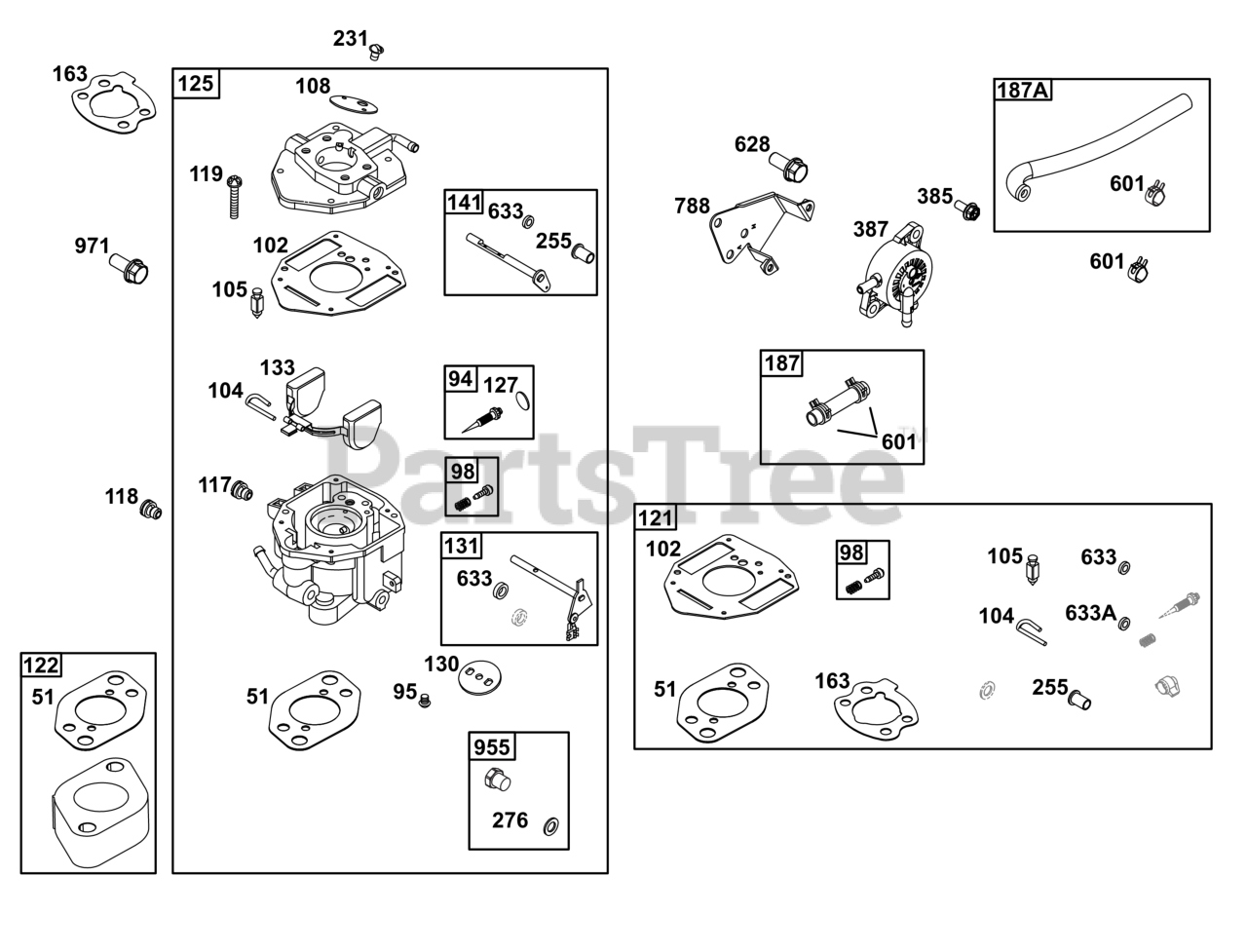

Carburetor and Fuel Supply Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

94

Briggs & Stratton 847026

KIT, Idle Mixture

$18.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 808177

KIT, Idle Speed

$14.99

$

In Stock, only 1 left!

0

102

Briggs & Stratton 692077

GASKET, Carburetor Body

$25.99

$

In Stock, Qty 5

0

104

Briggs & Stratton 690723

PIN, Float Hinge

$10.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 805620

VALVE, Float Needle

$46.99

$

In Stock, only 2 left!

0

108

Briggs & Stratton 844989

VALVE, Choke

$9.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 690881

JET, Main

Note: (Standard)

$16.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 844990

JET, Main

Note: (High Altitude)

$21.99

$

In Stock, only 1 left!

0

119

Briggs & Stratton 690720

SCREW

Note: (Upper Carburetor Body To Lower Carburetor Body)

$3.99

$

In Stock, only 1 left!

0

121

Briggs & Stratton 84002693

KIT, Carburetor Overhaul

Note: (Service Kits can include parts not for this engine.)

$212.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 690691

SPACER, Carburetor

$14.99

$

In Stock, Qty 6

0

125

Briggs & Stratton 845906

CARBURETOR

$337.99

$

In Stock, only 1 left!

0

127

Briggs & Stratton 847028

PLUG, Welch

$6.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 690726

VALVE, Throttle

$20.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 809007

KIT, Throttle Shaft

$47.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 844546

FLOAT, Carburetor

$32.99

$

In Stock, Qty 5

0

141

Briggs & Stratton 808398

KIT, Choke Shaft

$47.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 844931

GASKET, Air Cleaner

$5.99

$

In Stock, only 1 left!

0

187

Briggs & Stratton 791766

LINE, Fuel

$8.49

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 846585

LINE, Fuel

$24.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 690711

SCREW

Note: (Choke Valve)

$7.49

$

Usually ships in 2-12 days

0

255

Briggs & Stratton 690721

BUSHING, Choke Shaft

$8.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 690724

WASHER, Sealing

$8.49

$

In Stock, Qty 8

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump)

$3.99

$

In Stock, only 3 left!

0

387

Briggs & Stratton 597338

PUMP, Fuel

$30.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

628

Briggs & Stratton 692062

SCREW

Note: (Fuel Pump Bracket)

$3.99

$

In Stock, Qty 8

0

633

Briggs & Stratton 806131

SEAL, Choke/Throttle Shaft

$6.49

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

$16.99

$

In Stock, only 4 left!

0

788

Briggs & Stratton 691559

BRACKET, Fuel Pump

$25.99

$

In Stock, only 1 left!

0

955

Briggs & Stratton 807723

PLUG, Carburetor

$6.99

$

In Stock, Qty 11

0

971

SCREW

Note: (Part information located in Air Cleaner Group.)

$

$

Not available
