30545 - Toro 52" Walk-Behind Mower (SN: 030000001 - 039999999) (1983) CUTTING UNIT ASSEMBLY Parts Diagram

52" Walk-Behind Mower

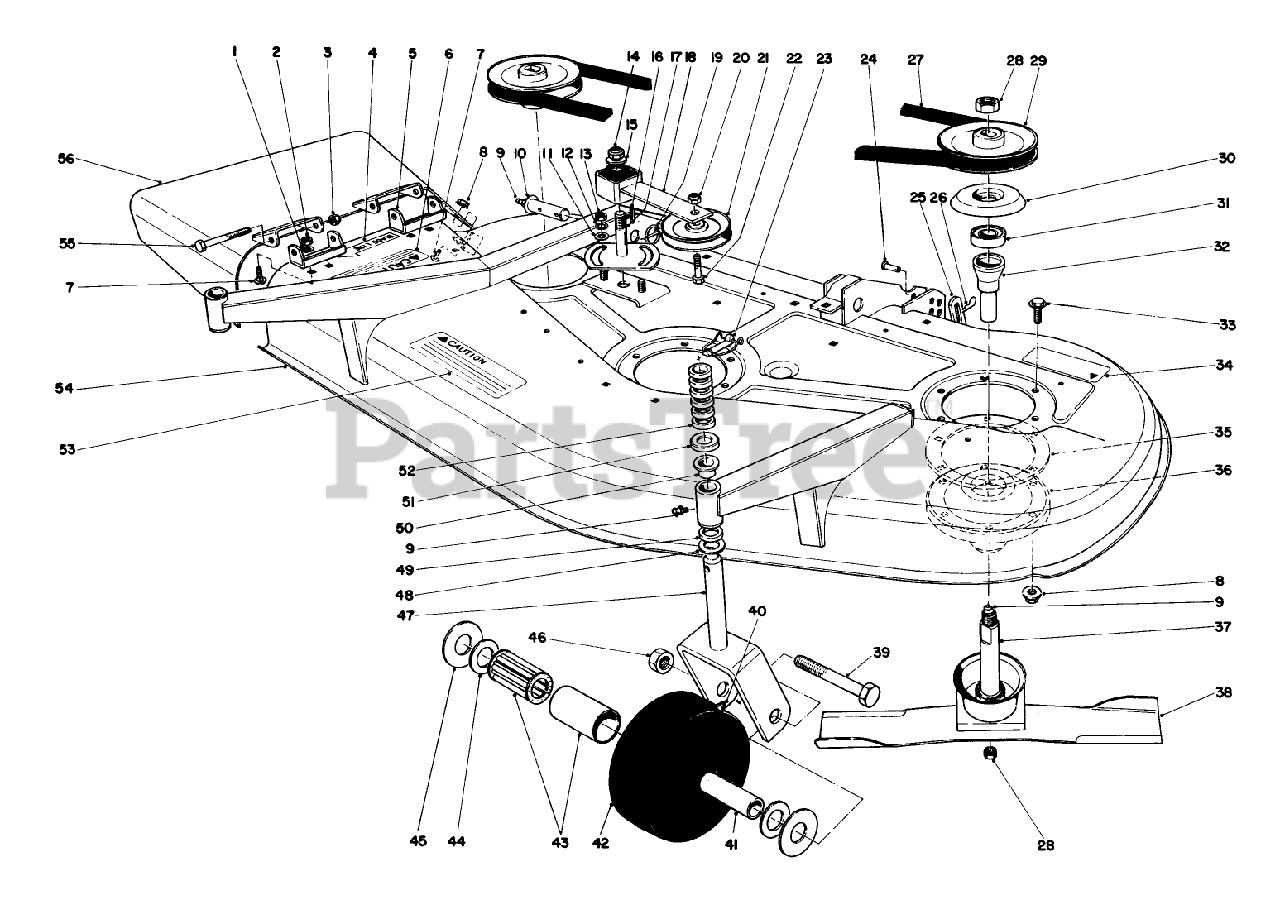

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

2

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

3

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

4

Toro 26-7120

DECAL - BLADE LINE

$

$

Not available

5

Toro 29-5590

Bracket-Pivot
(Superseded to 29-5590-03)

$

$

Not available

6

Toro 26-7980

DECAL-CAUTION, DEFLECTOR

$

$

Not available

7

Toro 3230-20

SCREW-CARR
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

8

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

10

Toro 27-0730

PIVOT PIN WA RO

$56.99

$

Usually ships in 3-6 days

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

13

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 14

0

14

Toro 3296-33

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

15

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

16

Toro 5-1077

KEY-SQUARE

$7.49

$

In Stock, Qty 8

0

17

Toro 28-9060

PLATE-IDLER

$189.99

$

Usually ships in 3-6 days

0

18

Toro 27-8580

IDLER ARM ASM
(Superseded to 99-1297)

$149.99

$

In Stock, only 4 left!

0

19

Toro 3290-243

PIN-LYNCH
(Superseded to 107-3039)

$11.99

$

In Stock, only 2 left!

0

20

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

21

Toro 27-1080

Idler Pulley

$

$

Not available

22

Toro 3211-6

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

23

Toro 3290-384

PIN-LYNCH

$23.99

$

Usually ships in 3-6 days

0

24

Toro 283-8

PIN-CLEVIS
(Superseded to HY4486)

$1.49

$

In Stock, Qty 5

0

25

Toro 27-0750

LIFT BRKT LINKAGE R

$

$

Not available

26

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0

27

Toro 27-1160

V-BELT

$59.99

$

In Stock, Qty 8

0

28

Toro 32146-19

Locknut
(Superseded to 3296-41)

$6.99

$

In Stock, Qty 9

0

29

Toro 42-6280

Pulley
(Superseded to 51-3520)

$

$

Not available

30

Toro 39-7690

COVER-DUST

$

$

Not available

31

Toro 40-6340

BEARING

$123.99

$

In Stock, only 2 left!

0

32

Toro 40-6320

SPACER-GREASE SHIELD

$32.61

$

In Stock, only 2 left!

0

33

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

34

Toro 26-7970

DECAL-CAUTION, BLADE

$

$

Not available

35

Toro 27-7680

SUPPORT-DECK, RING
(Superseded to 27-7680-03)

$91.99

$

Usually ships in 3-6 days

0

36

Toro 40-6330

Housing Assembly
(Superseded to 99-5885)

$

$

Not available

37

Toro 40-6310

SHAFT and SADDLE ASM

$

$

Not available

38

Toro 40-3760

Blade
(Superseded to 40-3760-03)

$32.99

$

Usually ships in 3-6 days

0

39

Toro 328-9

SCREW-HH

$22.99

$

In Stock, only 1 left!

0

40

Toro 30249

Fitting-Grease

$

$

Not available

41

Toro 27-1200

SPANNER BUSHING

$15.99

$

In Stock, only 1 left!

0

42

Toro 27-1190

WHEEL

$96.99

$

Usually ships in 3-6 days

0

43

Toro 27-1210

ROLLER BEARING

$

$

Not available

44

Toro 27-1180

BEARING RETAINER

$

$

Not available

45

Toro 27-1170

THRUST WASHER

$5.49

$

Usually ships in 3-6 days

0

46

Toro 32153-6

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

47

Toro 27-1010

Castor Fork
(Superseded to 27-1010-01)

$

$

Not available

48

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

49

Toro 27-1040

SPACER

$14.99

$

In Stock, Qty 10

0

50

Toro 28-9290

Bushing
(Superseded to 94-1291)

$12.99

$

In Stock, Qty 19

0

51

Toro 3-6782

CASTOR SLINGER

$

$

Not available

52

Toro 26-1580

SPACER 1/2 IN

$

$

Not available

53

Toro 42-6430

CAUTION DECAL

$

$

Not available

54

Toro 27-0560

Housing (Incl. Ref. #50)

$3890.99

$

Usually ships in 3-6 days

0

55

Toro 3211-15

SCREW-HH

$9.99

$

Usually ships in 3-6 days

0

56

Toro 27-1090

DEFLECTOR WA R

$

$

Not available
