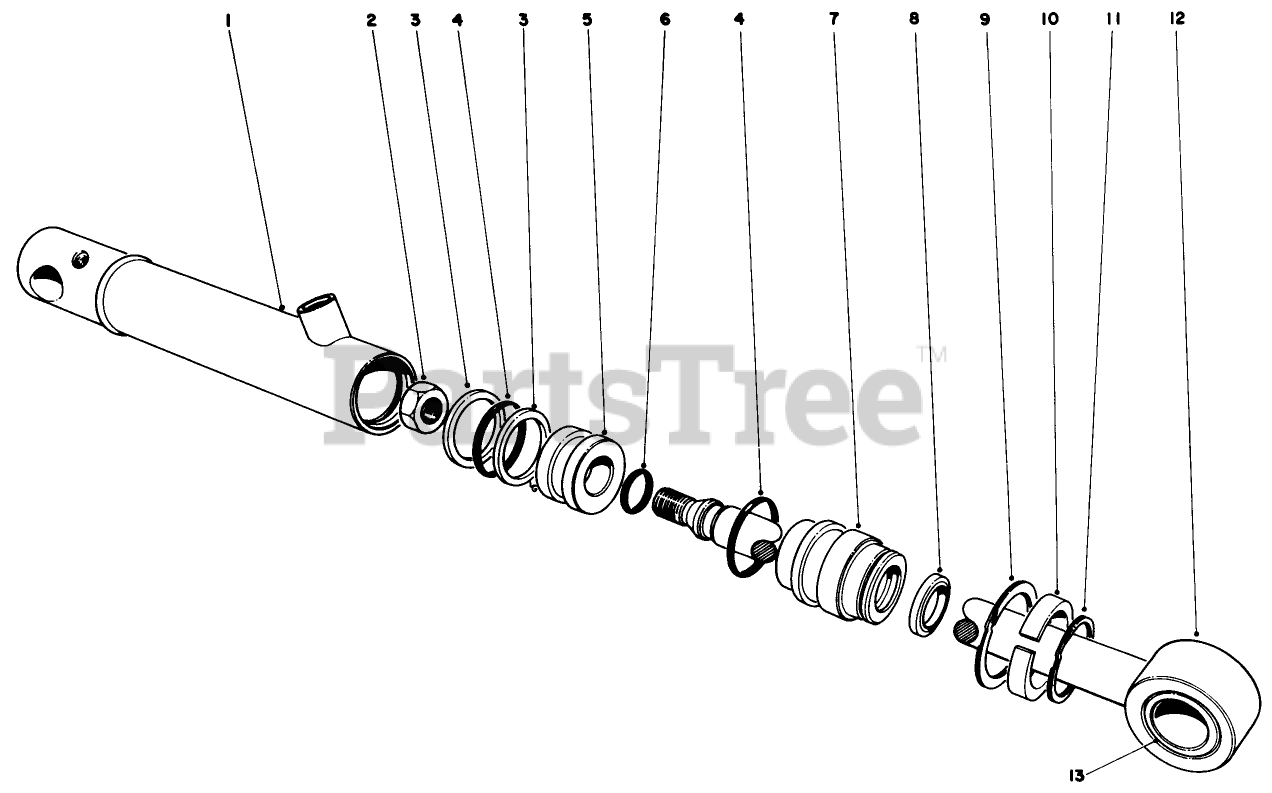

30545 - Toro 52" Walk-Behind Mower (SN: 070000001 - 079999999) (1977) HYDRAULIC CYLINDER 27-2510 Parts Diagram

52" Walk-Behind Mower

HYDRAULIC CYLINDER 27-2510 Parts Diagram

  • Title

1

Toro 353-568

Tube Assembly
(Superseded to 114-0626)

$555.99

$

Usually ships in 3-6 days

0

2

Jam Nut

Note: Items included in seal repair kit.

$

$

Not available

3

Back Up Washer

Note: Items included in seal repair kit.

$

$

Not available

4

O-Ring Piston

Note: Items included in seal repair kit.

$

$

Not available

5

Toro 353-457

CYL PISTON

$

$

Currently unavailable

6

Seal Rod

Note: Items included in seal repair kit.

$

$

Not available

7

Toro 353-470

Head Assembly

$

$

Currently unavailable

8

Rod Wiper

Note: Items included in seal repair kit.

$

$

Not available

9

Lock Ring Head

$

$

Not available

10

Toro 353-454

SPACER

$

$

Not available

11

Toro 353-455

OUTER LOCK RING

$

$

Not available

12

Toro 353-456

CYL PISTON ROD

$

$

Currently unavailable

13

Toro 353-439

Seal Repair Kit (Incl. Ref.#2-4,6&8-9)

Note: Items included in seal repair kit.

$184.99

$

Usually ships in 3-6 days

0
