30545 - Toro 52" Walk-Behind Mower (SN: 070000001 - 079999999) (1977) INSTRUMENT PANEL AND STEERING POST ASSEMBLY Parts Diagram

52" Walk-Behind Mower

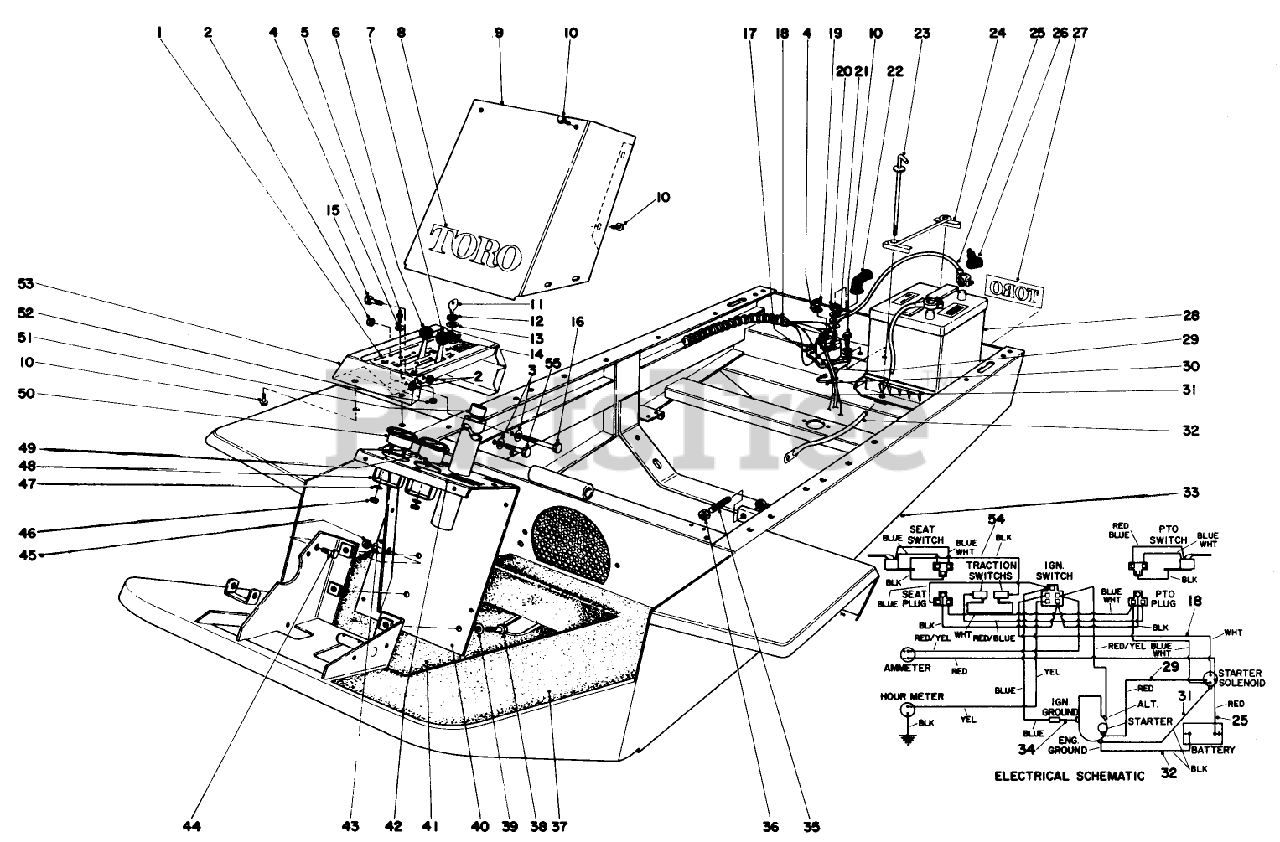

INSTRUMENT PANEL AND STEERING POST ASSEMBLY Parts Diagram

  • Title

1

Toro 27-4450

Decal-Instrument Panel
(Superseded to 68-7350)

$

$

Not available

2

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

3

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

5

Toro 3251-3

10-24 X 5/8 PAN HD MS

$0.99

$

In Stock, only 2 left!

0

6

Toro 27-4430

CHOKE CONTROL

$

$

Not available

7

Toro 27-4440

Throttle Control
(Superseded to 44-2490)

$

$

Not available

8

Toro 27-4600

DECAL

$

$

Not available

9

Toro 27-3510

Cover-Tower

$

$

Not available

10

Toro 32104-116

SCREW-THD FRM,HWH

$0.99

$

Usually ships in 3-6 days

0

11

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 12

0

12

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 17

0

13

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 11

0

14

Toro 23-0660

SWITCH-STARTER

$22.99

$

In Stock, only 1 left!

0

15

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 321-34

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

17

Toro 28-5650

SOLENOID

$175.99

$

Usually ships in 3-6 days

0

18

Toro 27-5060

Wire Harness

$

$

Not available

19

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

20

Toro 3218-13

NUT-JAM, BRASS

$1.49

$

Usually ships in 3-6 days

0

21

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

22

Toro 218-331

BATTERY BOOT

$

$

Currently unavailable

23

Toro 27-8100

BATTERY BOLT WA B

$

$

Not available

24

Toro 27-5380

BATTERY HOLD DOWN WA

$85.99

$

Usually ships in 3-6 days

0

25

Toro 27-5100

Wire Positive Batter to Solenoid
(Superseded to 39-8860)

$

$

Not available

26

Toro 28-1280

BOOT-CABLE, BATTERY

$

$

Not available

27

Toro 27-4610

DECAL

$

$

Currently unavailable

28

Toro 27-5180

Battery
(Superseded to 55-7420)

$

$

Not available

29

Toro 27-5110

SOLENOID TO START WIR

$

$

Not available

30

Toro 3290-381

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

31

Toro 27-5120

Wire Engine Ground

$

$

Not available

32

Toro 27-5090

BATTERY GROUND WIRE

$49.99

$

Usually ships in 3-6 days

0

33

Toro 27-1300

Frame

$

$

Currently unavailable

34

Toro 27-9590

ENGINE GROUND WIRE

$

$

Not available

35

Toro 27-6940

STOP PIN PP

$

$

Not available

36

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

37

Toro 27-3250

NON SKID (TUNNEL)

$

$

Not available

38

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

39

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

40

Toro 27-3320

Steering Post Bracket (Incl. Ref. #51)

$

$

Not available

41

Toro 27-3260

NON-SKID-FLOOR

$

$

Not available

42

Toro 27-4590

Decal Instruction

$

$

Not available

43

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

44

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

45

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 13

0

46

Toro 26-2360

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

47

Toro 26-2370

Lockwasher
(Superseded to 325-32)

$7.49

$

Usually ships in 3-6 days

0

48

Toro 26-2350

CLAMP ASM

$

$

Currently unavailable

49

Toro 12-9990

HOUR METER
(Superseded to 66-2950)

$

$

Not available

50

Toro 7-6130

Ammeter
(Superseded to 33-0990)

$

$

Not available

51

Toro 256-254

Bushing

$13.99

$

Usually ships in 3-6 days

0

52

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 4 left!

0

53

Toro 27-4400

Instrument Panel
(Superseded to 46-3350-01)

$143.99

$

Usually ships in 3-6 days

0

54

Toro 28-5710

Wire Traction Switch Ground

$

$

Not available

55

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0
