30545 - Toro 52" Walk-Behind Mower (SN: 080000001 - 089999999) (1978) POWER TAKE OFF ASSEMBLY Parts Diagram

52" Walk-Behind Mower

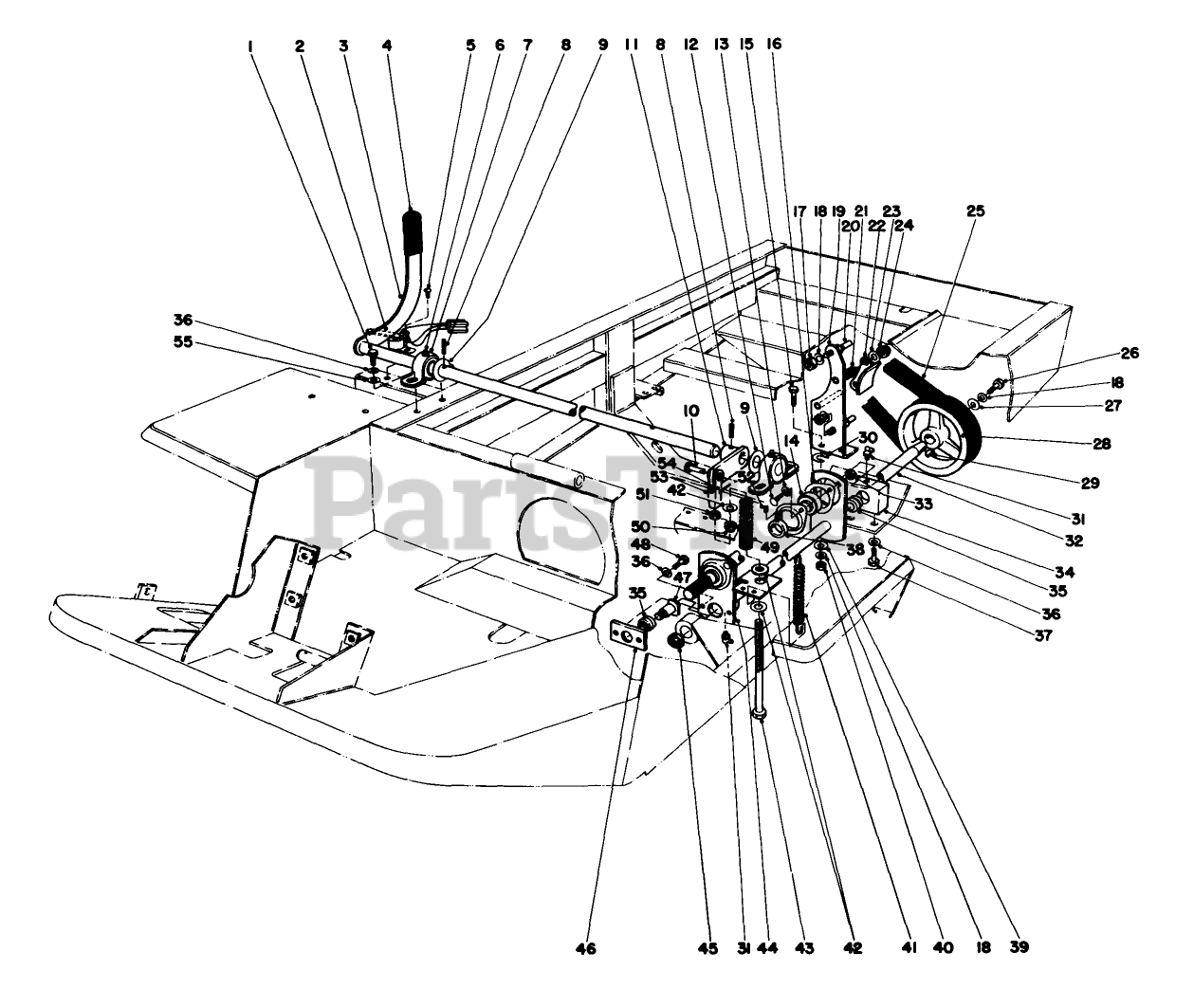

POWER TAKE OFF ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-95

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

2

Toro 33-0300

PTO SWITCH

$

$

Not available

3

Toro 27-4910

P.T.0. Lever
(Superseded to 27-4910-01)

$

$

Not available

4

Toro 21-1880

GRIP-HANDLE

$13.99

$

Usually ships in 3-6 days

0

5

Toro 32104-116

SCREW-THD FRM,HWH

$0.99

$

Usually ships in 3-6 days

0

6

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

7

Toro 251-269

BEARING

$

$

Not available

8

Toro 32121-31

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

9

Toro 3-6514

THRUST WASHER

$2.49

$

Usually ships in 3-6 days

0

10

Toro 283-42

PIN-CLEVIS

$46.99

$

Usually ships in 3-6 days

0

11

Toro 27-4940

ENGAGE ARM WA

$238.99

$

Usually ships in 3-6 days

0

12

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

13

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 251-253

Bearing w/collar (Incl. Ref. #38 & 52)

$24.99

$

Usually ships in 3-6 days

0

15

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 251-255

FLANGE

$17.99

$

Usually ships in 3-6 days

0

17

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

18

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

19

Toro 27-8410

PTO BRAKE BRKT WA BO

$233.99

$

Usually ships in 3-6 days

0

20

Toro 27-8450

PTO BELT GUIDE

$

$

Not available

21

Toro 27-9220

COMP SPRING O

$28.99

$

Usually ships in 3-6 days

0

22

Toro 33-0890

PTO BRAKE SHOE/LINING

$

$

Not available

23

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 10

0

25

Toro 27-4630

V-Belt A-Section
(Superseded to 41-9150)

$43.99

$

In Stock, only 1 left!

0

26

Toro 323-18

SCREW-HH

$4.49

$

In Stock, only 1 left!

0

27

Toro 29-4730

WASHER-FLAT

$16.99

$

Usually ships in 3-6 days

0

28

Toro 27-4530

PULLEY-PTO, MACH.

$

$

Not available

29

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 20+

0

30

Toro 28-5640

SPECIAL WASHER

$

$

Not available

31

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

32

Toro 27-4980

PTO SHAFT

$

$

Not available

33

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

34

Toro 28-9050

BEARING HUB PP

$

$

Not available

35

Toro 251-268

BEARING

$99.99

$

Usually ships in 3-6 days

0

36

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

37

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 251-77

COLLAR-LOCK, BEARING

$11.99

$

Usually ships in 3-6 days

0

39

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 13

0

41

Toro 28-8950

TENSION PTO SPRING R

$

$

Not available

42

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

43

Toro 27-7900

SCREW-ADJUSTING

$25.99

$

Usually ships in 3-6 days

0

44

Toro 27-4850

Engagement Arm
(Superseded to 44-9350)

$

$

Not available

45

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

46

Toro 27-6650

BRG RETAINER

$

$

Not available

47

Toro 27-6970

BEARING STUD

$31.99

$

Usually ships in 3-6 days

0

48

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

49

Toro 21-0400

SPRING-COMPRESSION
(Superseded to 21-0400-01)

$21.99

$

Usually ships in 3-6 days

0

50

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

51

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

52

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, Qty 5

0

53

Toro 282-1

Yoke
(Superseded to 282-1-01)

$

$

Not available

54

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 8

0

55

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
