30545 - Toro 52" Walk-Behind Mower (SN: 090000001 - 099999999) (1979) Cutting Unit Assembly Parts Diagram

52" Walk-Behind Mower

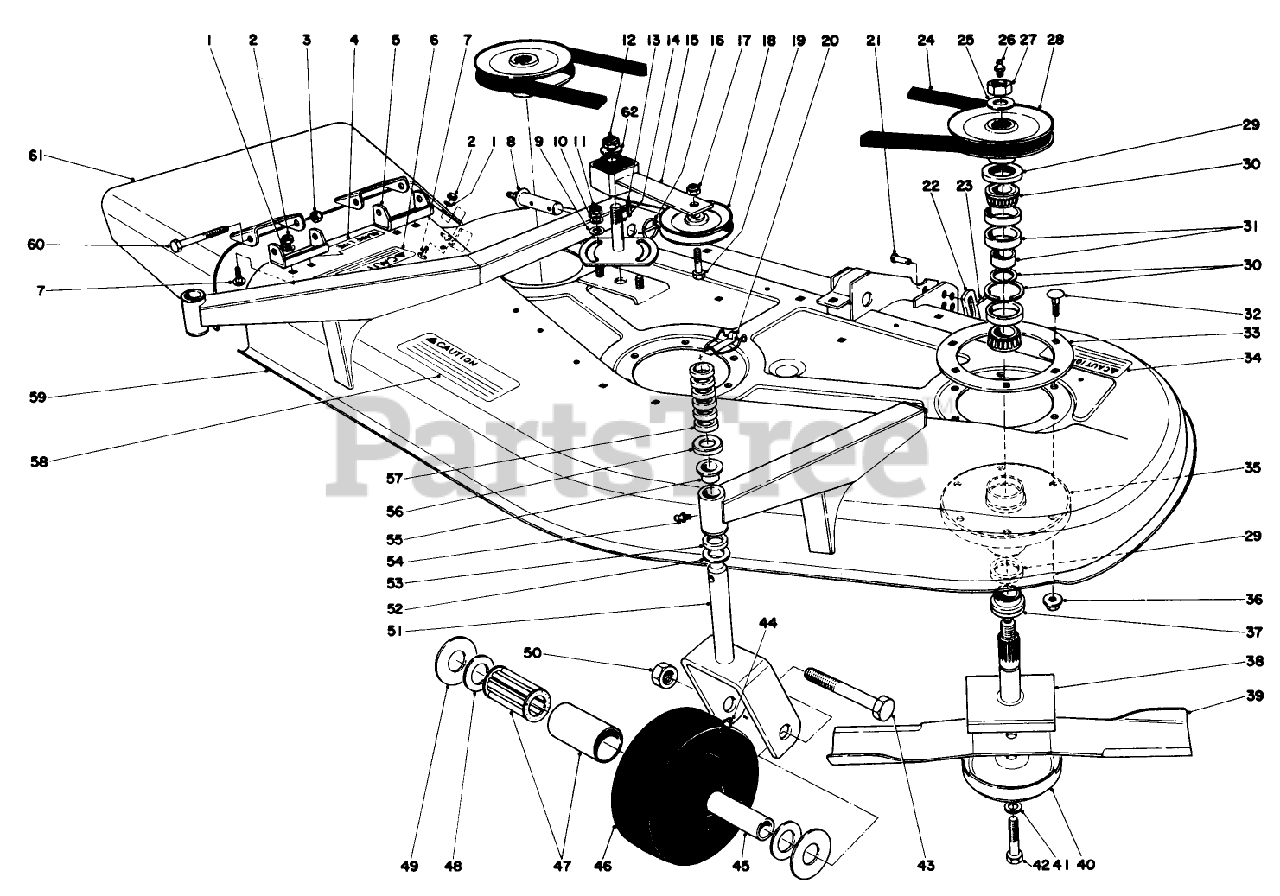

Cutting Unit Assembly Parts Diagram

  • Title

1

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

2

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

3

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

4

Toro 26-7120

DISCONTINUED

$

$

Not available

5

Toro 29-5590

See Supercession: 29-5590-03
(Superseded to 29-5590-03)

$

$

Not available

6

Toro 26-7980

DISCONTINUED

$

$

Not available

7

Toro 3230-20

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

8

Toro 27-0730

PIVOT PIN WA *RO

$50.99

$

Usually ships in 3-6 days

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

11

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

13

Toro 5-1077

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

14

Toro 28-9060

PLATE-IDLER

$170.99

$

Usually ships in 3-6 days

0

15

Toro 27-8580

See Supercession: 99-1297
(Superseded to 99-1297)

$134.99

$

In Stock, only 1 left!

0

16

Toro 3290-243

PIN-LYNCH

$28.99

$

Usually ships in 3-6 days

0

17

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

18

Toro 27-1080

DISCONTINUED X-REF

$

$

Not available

19

Toro 3211-6

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

20

Toro 3290-384

PIN-LYNCH

$21.99

$

Usually ships in 3-6 days

0

21

Toro 283-8

PIN-CLEVIS
(Superseded to HY4486)

$1.49

$

In Stock, Qty 5

0

22

Toro 27-0750

DISCONTINUED

$

$

Not available

23

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

24

Toro 27-1160

V-BELT

$55.99

$

In Stock, Qty 13

0

25

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

26

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 6

0

27

Toro 32146-20

NUT-HEX

$3.49

$

In Stock, Qty 17

0

28

Toro 27-0970

See Supercession: 27-0970-03
(Superseded to 27-0970-03)

$54.99

$

Usually ships in 3-6 days

0

29

Toro 253-139

SEAL-OIL

$12.99

$

In Stock, Qty 20+

0

30

Toro 27-0960

BEARING ASM

$60.99

$

In Stock, only 2 left!

0

31

Toro 27-5970

SPACER-SET, MATCHED

$62.99

$

In Stock, only 1 left!

0

32

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

33

Toro 27-7680

See Supercession: 27-7680-03
(Superseded to 27-7680-03)

$85.99

$

Usually ships in 3-6 days

0

34

Toro 26-7970

CAUTION DECAL (BLADE)

$16.99

$

Usually ships in 3-6 days

0

35

Toro 27-0880

See Supercession: 61-4160
(Superseded to 61-4160)

$131.99

$

In Stock, only 3 left!

0

36

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

37

Toro 27-0950

SPACER

$31.99

$

In Stock, only 1 left!

0

38

Toro 27-0920

SHAFT

$159.99

$

In Stock, only 1 left!

0

39

Toro 27-0990

See Supercession: 27-0990-03
(Superseded to 27-0990-03)

$20.99

$

In Stock, Qty 20+

0

40

Toro 27-1000

See Supercession: 72-9361
(Superseded to 72-9361)

$40.99

$

In Stock, only 3 left!

0

41

Toro 3253-27

WASHER-LOCK

$2.99

$

In Stock, Qty 6

0

42

Toro 3213-22

See Supercession: 44-2200
(Superseded to 44-2200)

$4.49

$

In Stock, Qty 12

0

43

Toro 328-9

SCREW-HH

$20.99

$

In Stock, only 1 left!

0

44

Toro 302-49

GREASE FITTING

$3.49

$

Usually ships in 3-6 days

0

45

Toro 27-1200

SPANNER BUSHING

$15.99

$

In Stock, only 4 left!

0

46

Toro 27-1190

WHEEL

$91.99

$

In Stock, only 2 left!

0

47

Toro 27-1210

ROLLER BEARING

$

$

Not available

48

Toro 27-1180

BEARING RETAINER

$

$

Not available

49

Toro 27-1170

THRUST WASHER

$4.99

$

Usually ships in 3-6 days

0

50

Toro 32153-6

NUT-LOCK

$4.49

$

Usually ships in 3-6 days

0

51

Toro 27-1010

See Supercession: 27-1010-01
(Superseded to 27-1010-01)

$

$

Not available

52

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 20+

0

53

Toro 27-1040

SPACER

$13.99

$

Usually ships in 3-6 days

0

54

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

55

Toro 28-9290

See Supercession: 94-1291
(Superseded to 94-1291)

$10.99

$

In Stock, only 4 left!

0

56

Toro 3-6782

CASTOR SLINGER

$

$

Not available

57

Toro 26-1580

SPACER 1/2 IN

$

$

Not available

58

Toro 26-7960

See Supercession: 68-7280
(Superseded to 68-7280)

$13.99

$

Usually ships in 3-6 days

0

59

Toro 27-0560

52 IN DECK ASM

$3487.99

$

Usually ships in 3-6 days

0

60

Toro 3211-15

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

61

Toro 27-1090

DISCONTINUED

$

$

Not available

62

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0
