30545 - Toro 52" Walk-Behind Mower (SN: 090000001 - 099999999) (1979) Deluxe Seat Kit Model No. 30766 Parts Diagram

52" Walk-Behind Mower

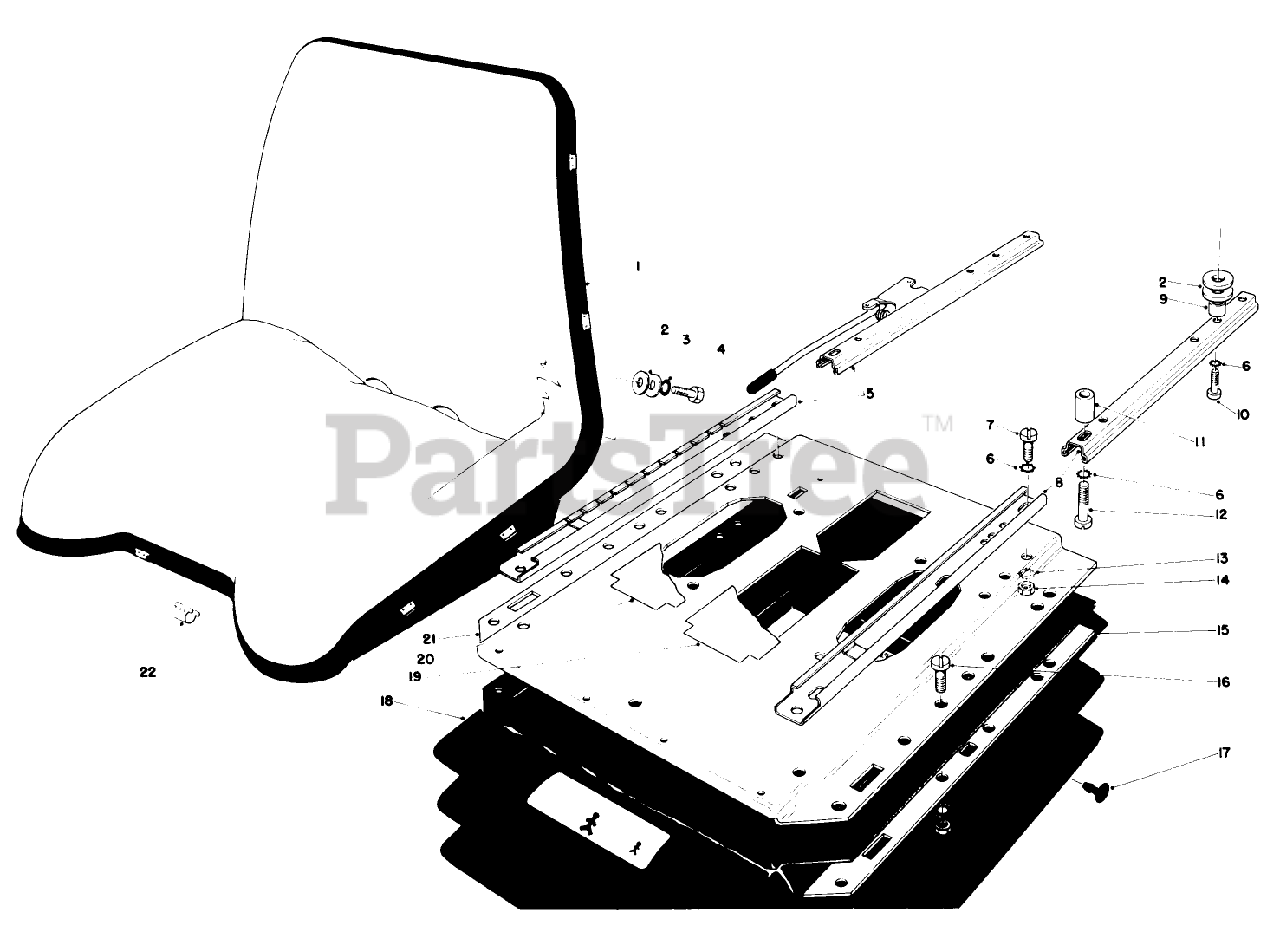

Deluxe Seat Kit Model No. 30766 Parts Diagram

  • Title

1

Toro 111558

Seat Bucket Complete

$

$

Currently unavailable

2

Toro 111557

Washer 13 MM

$

$

Currently unavailable

3

Toro 900198

Serrated Washer

$

$

Currently unavailable

4

Toro 900216

Capscrew 7/16-20 U.N.F.

$

$

Currently unavailable

5

Toro 107796

See Supercession: 99-5369
(Superseded to 99-5369)

$

$

Not available

6

Toro 101650

Serrated Washer

$

$

Currently unavailable

7

Toro 102185

KNOB-THROTTLE

$15.99

$

In Stock, only 2 left!

0

8

Toro 107797

Adjustment Track

$

$

Currently unavailable

9

Toro 109390

DISCONTINUED

$

$

Not available

10

Toro 108910

DISCONTINUED

$

$

Not available

11

Toro 110190

DISCONTINUED

$

$

Not available

12

Toro 107931

Cylinder Bolt

$

$

Currently unavailable

13

Toro 200050

Spring Washer

$

$

Currently unavailable

14

Toro 200060

Nut M8

$

$

Currently unavailable

15

Toro 109808

DISCONTINUED

$

$

Not available

16

Toro 200304

Capscrew

$

$

Currently unavailable

17

Toro 105840

DISCONTINUED

$

$

Not available

18

Toro 107683

Rubber Bellows

$

$

Currently unavailable

19

Toro 107985

DISCONTINUED

$

$

Not available

20

Toro 110296

DISCONTINUED

$

$

Not available

21

Toro 111556

Upper Suspension Plate Complete

$

$

Currently unavailable

22

Toro 106299

Clamps Outside

$

$

Currently unavailable

Toro 37-9630

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 11830

Replacement Seat Cover

Note: Not illustrated

$

$

Currently unavailable
