30546 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 200000001 - 200999999) (2000) Deck And Spindle Assembly Parts Diagram

44" Mower Deck for Groundsmaster 120

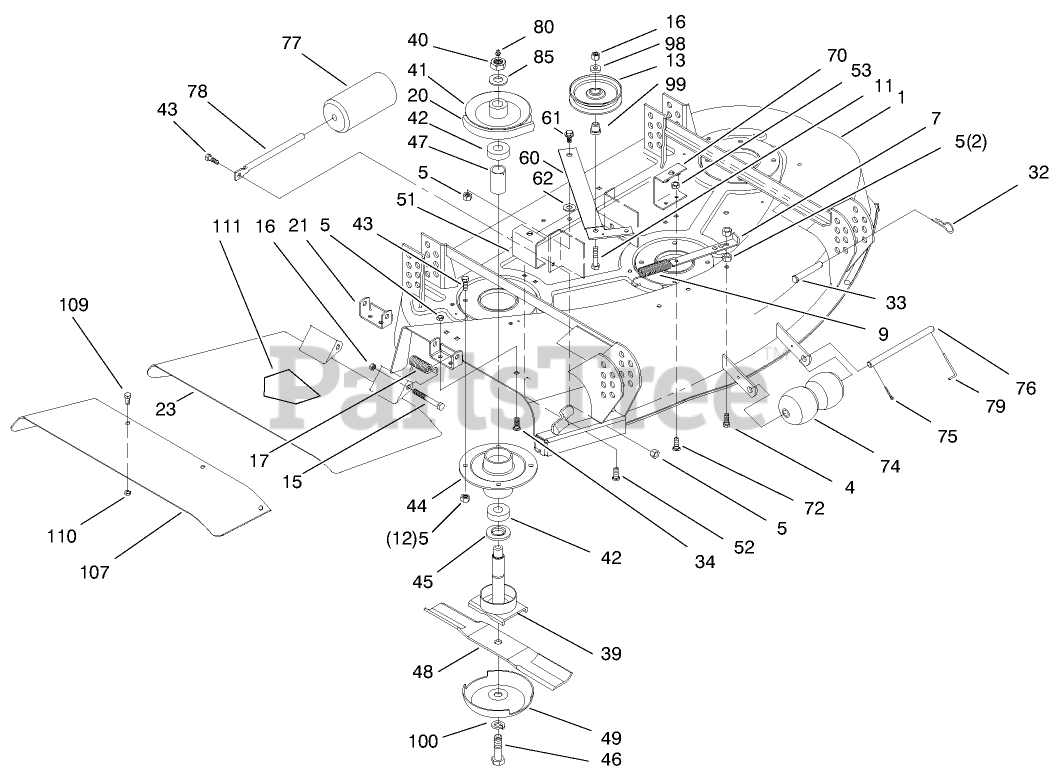

Deck And Spindle Assembly Parts Diagram

  • Title

1

Toro 94-6024

DISCONTINUED

$

$

Not available

4

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

7

Toro 54-1180

See Supercession: 54-1180-01
(Superseded to 54-1180-01)

$21.99

$

Usually ships in 3-6 days

0

9

Toro 54-1160

SPRING-EXTENSION, DECK

$59.99

$

In Stock, only 2 left!

0

11

Toro 321-18

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 65-5940

PULLEY-IDLER

$40.99

$

In Stock, only 3 left!

0

15

Toro 3211-15

SCREW-HH

$9.99

$

Usually ships in 3-6 days

0

16

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

17

Toro 40-6230

SPRING

$42.99

$

Usually ships in 3-6 days

0

20

Toro 54-1370

V-BELT-DECK

$142.99

$

In Stock, only 1 left!

0

21

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

23

Toro 99-3902

See Supercession: 13-3899
(Superseded to 13-3899)

$

$

Not available

32

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0

33

Toro 283-55

PIN-CLEVIS

$12.99

$

In Stock, only 3 left!

0

34

Toro 3230-20

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

39

Toro 71-2780

See Supercession: 71-2780-03
(Superseded to 71-2780-03)

$

$

Not available

40

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

41

Toro 67-7690

PULLEY-DECK

$95.99

$

Usually ships in 3-6 days

0

42

Toro 251-257

BEARING-BALL

$14.99

$

In Stock, Qty 10

0

43

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

44

Toro 67-7590

HOUSING-SPINDLE

$350.99

$

Usually ships in 3-6 days

0

45

Toro 67-7570

SPACER-SPINDLE

$14.99

$

In Stock, only 2 left!

0

46

Toro 51-4060

SCREW-BLADE

$8.49

$

In Stock, Qty 20+

0

47

Toro 67-7580

SPACER-BEARING

$

$

Not available

48

Toro 54-0010

See Supercession: 54-0010-03
(Superseded to 54-0010-03)

$31.99

$

In Stock, Qty 16

0

49

Toro 67-7560

See Supercession: 67-7561
(Superseded to 67-7561)

$45.99

$

In Stock, only 2 left!

0

51

Toro 55-7050

See Supercession: 55-7050-03
(Superseded to 55-7050-03)

$

$

Not available

52

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

53

Toro 3296-16

NUT-LOCK, NI

$1.99

$

In Stock, Qty 5

0

60

Toro 55-7430

See Supercession: 55-7430-01
(Superseded to 55-7430-01)

$

$

Not available

61

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

62

Toro 23-1120

WASHER

$21.99

$

Usually ships in 3-6 days

0

70

Toro 55-7060

See Supercession: 55-7060-03
(Superseded to 55-7060-03)

$

$

Not available

72

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

74

Toro 29-4820

ROLLER

$16.99

$

In Stock, Qty 10

0

75

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

76

Toro 40-6400

SHAFT-ROLLER

$42.99

$

In Stock, Qty 5

0

77

Toro 36-1740

ROLLER-DECK

$42.99

$

In Stock, only 3 left!

0

78

Toro 62-4480

ROD-ROLLER

$20.99

$

Usually ships in 3-6 days

0

79

Toro 57-0690

PIN-SPECIAL

$5.49

$

In Stock, only 4 left!

0

80

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 17

0

85

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

98

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 10

0

99

Toro 65-5950

BUSHING-PULLEY

$5.99

$

In Stock, Qty 19

0

100

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

107

Toro 93-9484

DISCONTINUED
(Superseded to 93-9484-01)

$

$

Not available

109

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

110

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

111

Toro 93-7316

DECAL-DANGER

$10.99

$

In Stock, Qty 20+

0
