30546 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 210000001 - 210999999) (2001)

44" Mower Deck for Groundsmaster 120

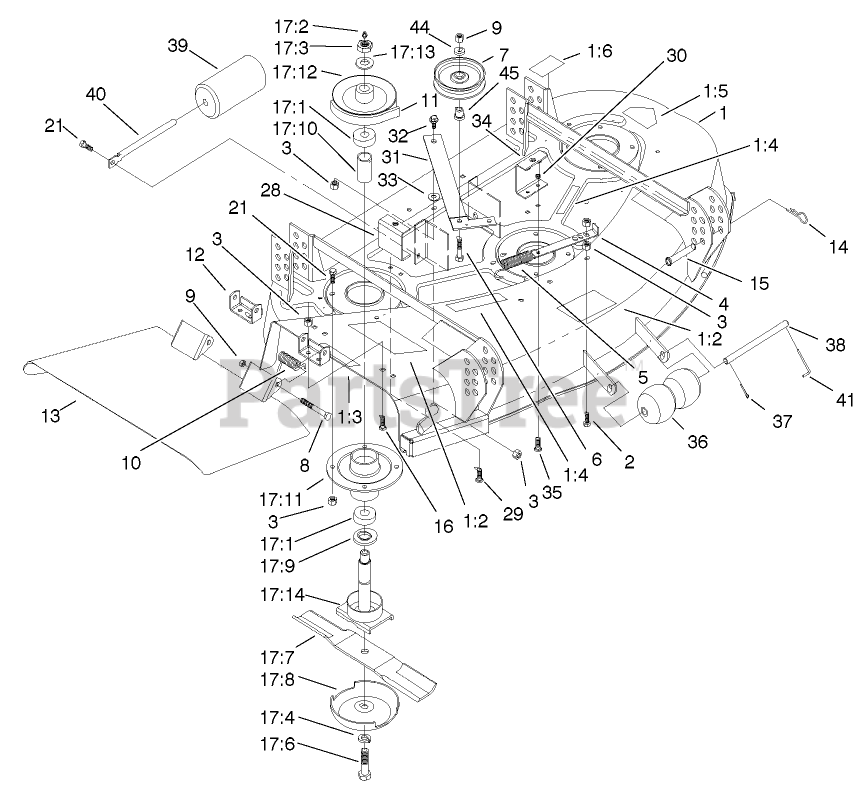

30546 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 210000001 - 210999999) (2001) > Parts Diagrams (4) > Deck And Spindle Assembly

  • Title
94-6024

1

DISCONTINUED

Part# 94-6024

OEM Warranty Repair Part for Toro

Not available

66-1340

1:2

DECAL-DANGER, THROWN OBJECT

Part# 66-1340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.49

66-6380

1:3

DECAL-DANGER

Part# 66-6380

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.88

67-5360

1:4

DECAL-DANGER

Part# 67-5360

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.14

43-8480

1:5

DECAL-DANGER

Part# 43-8480

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.66

68-8340

1:6

DECAL-TORQUE

Part# 68-8340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $14.20

322-5

2

SCREW-HH

Part# 322-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.45

32152-1

3

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.48

54-1180-01

4

ANCHOR-SPRING, DECK

Part# 54-1180-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.03

54-1160

5

SPRING-EXTENSION, DECK

Part# 54-1160

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.08

321-18

6

SCREW-HH

Part# 321-18

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.74

65-5940

7

PULLEY-IDLER

Part# 65-5940

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $29.64

3211-15

8

SCREW-HH

Part# 3211-15

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.64

3296-5

9

NUT-HEX

Part# 3296-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.87

40-6230

10

SPRING

Part# 40-6230

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $28.77

54-1370

11

V-BELT-DECK

Part# 54-1370

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $87.70

29-5590-01

12

BRACKET-PIVOT

Part# 29-5590-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.48

98-5049

13

DEFLECTOR ASM

Part# 98-5049

OEM Warranty Repair Part for Toro

Not available

3290-355

14

PIN-HAIR

Part# 3290-355

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.53

283-55

15

PIN-CLEVIS

Part# 283-55

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.19

3230-20

16

See Supercession: 3230-1

Part# 3230-20 (Superseded to 3230-1)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.36

67-7660

17

SPINDLE HOUSING ASM

Part# 67-7660

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $598.25

251-257

17:1

BEARING-BALL

Part# 251-257

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.22

302-2

17:2

FITTING-GREASE

Part# 302-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.74

32146-20

17:3

NUT-HEX

Part# 32146-20

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.50

3253-8

17:4

WASHER-LOCK

Part# 3253-8

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.54

51-4060

17:6

SCREW-BLADE

Part# 51-4060

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.24

54-0010

17:7

See Supercession: 54-0010-03

Part# 54-0010 (Superseded to 54-0010-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $25.68

67-7561

17:8

CUP-SCALP, ANTI

Part# 67-7561

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $38.68

67-7570

17:9

SPACER-SPINDLE

Part# 67-7570

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.34

67-7580

17:10

SPACER-BEARING

Part# 67-7580

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $22.73

67-7590

17:11

HOUSING-SPINDLE

Part# 67-7590

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $210.41

67-7690-03

17:12

See Supercession: 67-7690

Part# 67-7690-03 (Superseded to 67-7690)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $58.58

7-4150

17:13

WASHER

Part# 7-4150

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.23

71-2780

17:14

See Supercession: 71-2780-03

Part# 71-2780 (Superseded to 71-2780-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $219.02

322-4

21

SCREW-HH

Part# 322-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.60

55-7050-03

28

BRACKET-COVER, RH ASM

Part# 55-7050-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $75.08

3229-11

29

SCREW-CARR

Part# 3229-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.00

3296-16

30

NUT-LOCK, NI

Part# 3296-16

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.23

55-7430-01

31

LEVER-DECK ASM

Part# 55-7430-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $60.83

19-1470

32

SCREW-SHOULDER

Part# 19-1470

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.35

23-1120

33

WASHER

Part# 23-1120

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.03

55-7060-03

34

BRACKET-COVER, LH ASM

Part# 55-7060-03

OEM Warranty Repair Part for Toro

Not available

3229-3

35

SCREW-CARR

Part# 3229-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.67

29-4820

36

ROLLER

Part# 29-4820

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $13.29

3272-11

37

PIN-COTTER

Part# 3272-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.00

40-6400

38

SHAFT-ROLLER

Part# 40-6400

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $29.36

36-1740

39

ROLLER-DECK

Part# 36-1740

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $33.07

62-4480

40

ROD-ROLLER

Part# 62-4480

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.26

57-0690

41

PIN-SPECIAL

Part# 57-0690

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.70

7-0081

44

WASHER-FLAT

Part# 7-0081

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.11

65-5950

45

BUSHING-PULLEY

Part# 65-5950

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.55
