30550 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 070000001 - 079999999) (1977) TRANSMISSION AND FAN ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

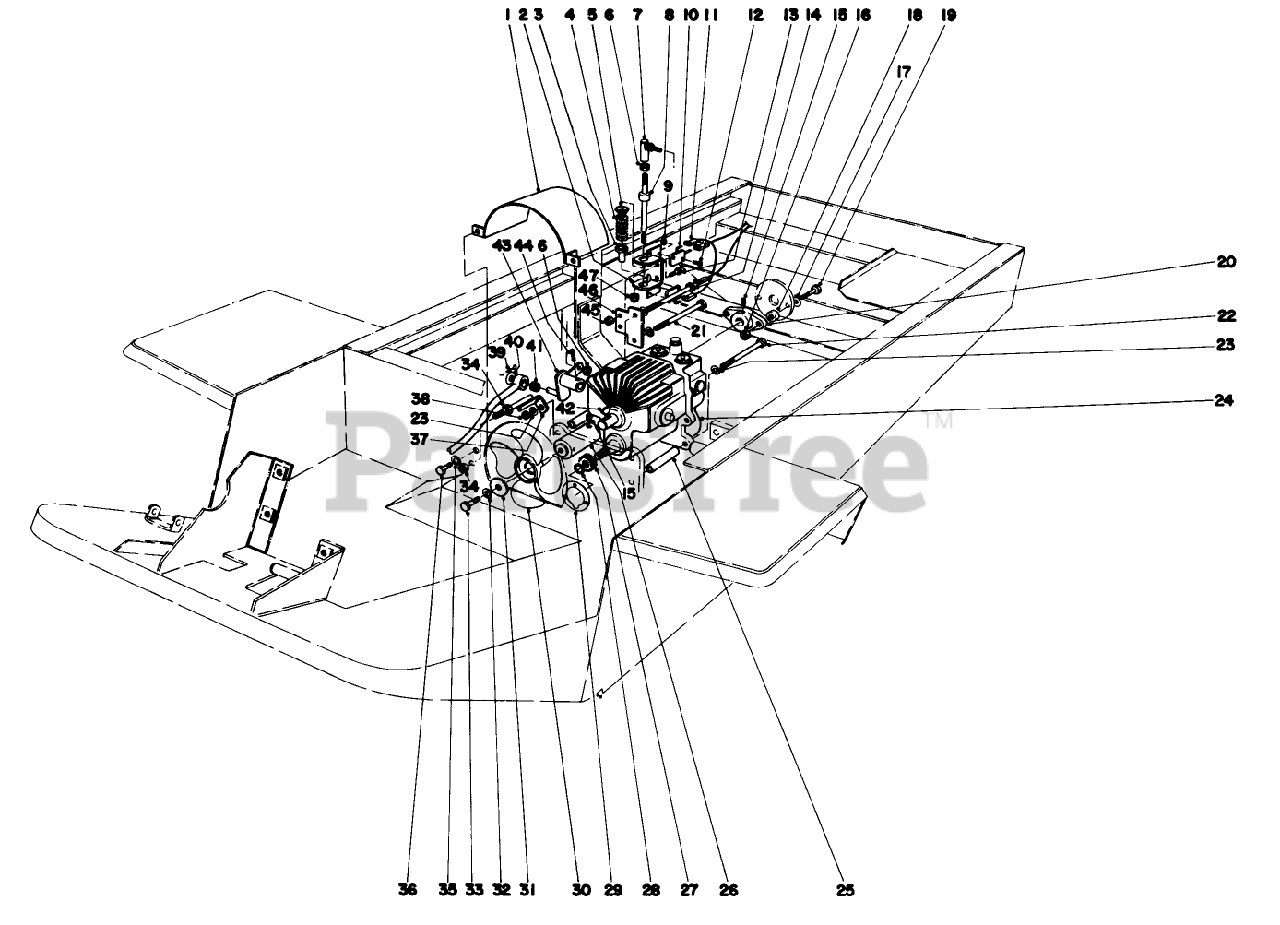

TRANSMISSION AND FAN ASSEMBLY Parts Diagram

  • Title

1

Toro 27-3270

Fan Shroud
(Superseded to 27-3270-03)

$

$

Not available

2

Toro 27-9290

EQUALIZER BRKT WA

$

$

Currently unavailable

3

Toro 27-9320

Retain-Spring Bottom

$

$

Currently unavailable

4

Toro 27-9330

COMPRESSION SPRING

$

$

Currently unavailable

5

Toro 27-9340

SPRING TOP RETAINER

$

$

Currently unavailable

6

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

7

Toro 27-9370

BALL JOINT

$

$

Currently unavailable

8

Toro 27-9350

EQUALIZER BAR WA

$

$

Currently unavailable

9

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

10

Toro 27-9380

MICRO SWITCH

$

$

Currently unavailable

11

Toro 27-9500

TRAC SWITCH WIRE

$

$

Currently unavailable

12

Toro 3290-404

4-40 X 3/4 MS

$

$

Currently unavailable

13

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 27-9620

SCREW-HH

$21.99

$

Usually ships in 3-6 days

0

15

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, Qty 5

0

16

Toro 32152-5

NUT-HEX

$3.49

$

In Stock, only 2 left!

0

17

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 27-6590

SPACER-COUPLING, RUBBER

$15.99

$

Usually ships in 3-6 days

0

19

Toro 3210-9

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

20

Toro 27-4370

HUB-PUMP

$80.99

$

Usually ships in 3-6 days

0

21

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

22

Toro 323-38

SCREW-HH

$11.99

$

In Stock, only 2 left!

0

23

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

24

Toro 27-3670

Transmission

$

$

Not available

25

Toro 27-3680

SPACER-MOUNTING

$8.49

$

Usually ships in 3-6 days

0

26

Toro 27-4340

Hub & Plug
(Superseded to 27-4340-03)

$

$

Not available

27

Toro 23-4810

Gear
(Superseded to 86-7220)

$104.99

$

Usually ships in 3-6 days

0

28

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, Qty 13

0

29

Toro 27-3690

GASKET-TRANSMISSION

$8.99

$

Usually ships in 3-6 days

0

30

Toro 27-3740

FAN

$

$

Not available

31

Toro 27-4360

WASHER

$

$

Not available

32

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

33

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 9

0

35

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

36

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

37

Toro 27-5310

Axle Support
(Superseded to 27-5310-03)

$

$

Not available

38

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 13

0

39

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

40

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

41

Toro 23-2270

BUSHING-RUBBER

$19.99

$

Usually ships in 3-6 days

0

42

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 20+

0

43

Toro 27-9460

PUMP LEVER WA

$

$

Not available

44

Toro 32121-24

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0

45

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

46

Toro 27-9360

Support Equalizer

$

$

Not available

47

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+
