30560 - Toro 52" Rear-Discharge Mower Deck (SN: 003000001 - 003999999) (1983) ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4051C STARTER MOTOR Parts Diagram

52" Rear-Discharge Mower Deck

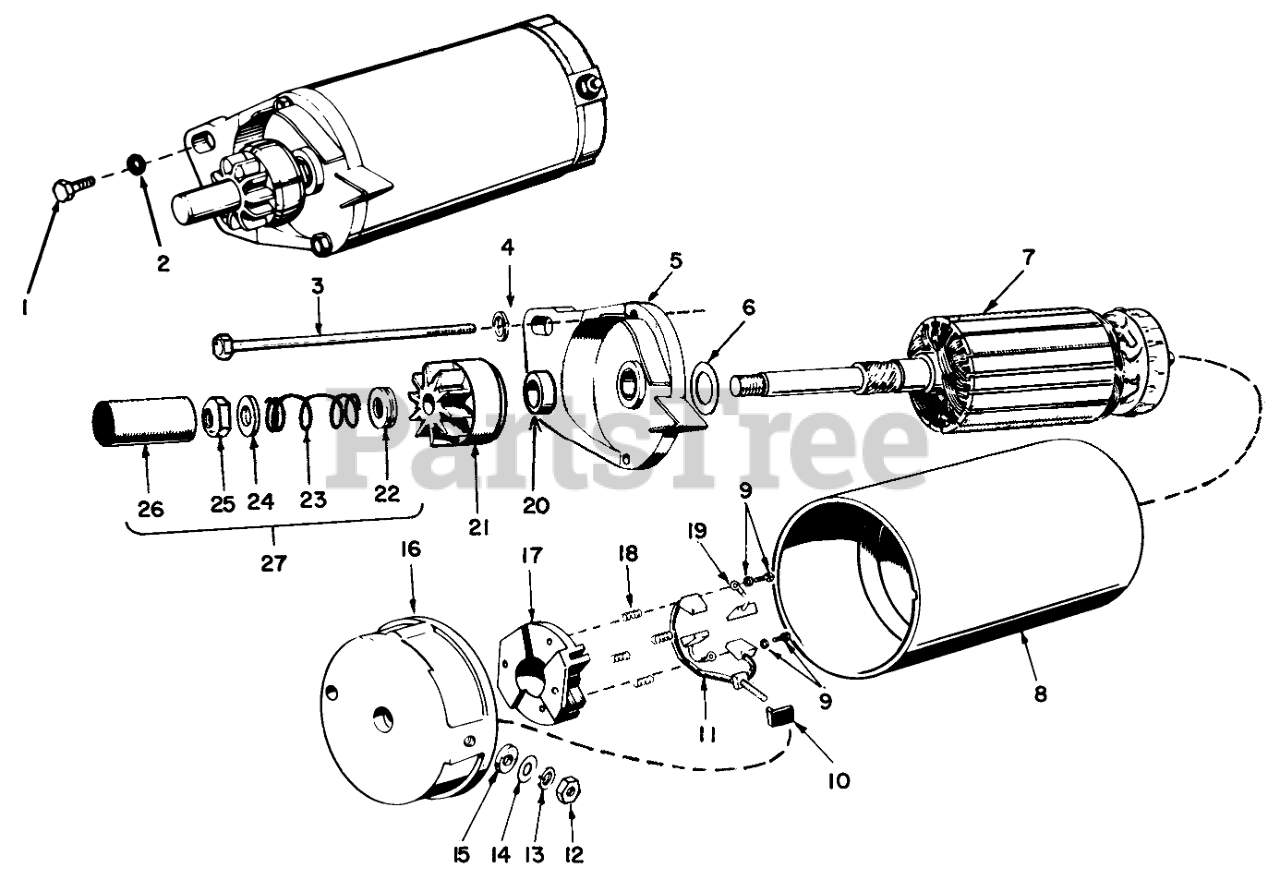

ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4051C STARTER MOTOR Parts Diagram

  • Title

1

Toro 800-0552

Screw-Cap, Hex Hd.

$

$

Currently unavailable

2

Toro 526-0122

Washer, Flat

$

$

Currently unavailable

3

Toro 191-1048

Screw-Hex Hd.

$

$

Currently unavailable

4

Toro 850-0040

Washer, Lock

$

$

Currently unavailable

5

Toro 191-1287

Cap Assembly, Drive End

$

$

Currently unavailable

6

Toro 191-1038

Washer, Armature Thrust

$

$

Currently unavailable

7

Toro 191-1039

Armature

$

$

Currently unavailable

8

Housing, Starter Motor

Note: Not Sold Separately

$

$

Not available

9

Screw and Lockwasher

Note: Not Sold Separately

$

$

Not available

10

Bushing Insulation-Input Stud

Note: Not Sold Separately

$

$

Not available

11

Stud and Brush Assembly Input

Note: Not Sold Separately

$

$

Not available

12

Nut, Securing-Input Stud

Note: Not Sold Separately

$

$

Not available

13

Washer, Lock-Input Stud

Note: Not Sold Separately

$

$

Not available

14

Washer, Flat-Input Stud

Note: Not Sold Separately

$

$

Not available

15

Washer, Insulation-Input Stud

Note: Not Sold Separately

$

$

Not available

16

Toro 191-1040

Cap Assembly, Commatator (Incl. Ref. #10-15 & 17-19 & 21)

$

$

Currently unavailable

17

Brush Holder

Note: Not Sold Separately

$

$

Not available

18

Spring, Brush

Note: Not Sold Separately

$

$

Not available

19

Brush, Ground

Note: Not Sold Separately

$

$

Not available

20

Toro 191-1534

Cap, Dust

$

$

Currently unavailable

21

Toro 191-1036

Drive Assembly

$

$

Currently unavailable

22

Spacer, Dust Cover

Note: Not Sold Separately

$

$

Not available

23

Spring, Anti-Drift

Note: Not Sold Separately

$

$

Not available

24

Washer, Stop Nut

Note: Not Sold Separately

$

$

Not available

25

Nut, Stop

Note: Not Sold Separately

$

$

Not available

26

Cover, Dust

Note: Not Sold Separately

$

$

Not available

27

Toro 191-1359

Dust Cover Assembly (Incl. Ref. #22-26)

$

$

Currently unavailable

Toro 191-1041

Repair Kit, Brush, Spring and Stud (Incl. Ref. #11, 18-19)

Note: Not illustrated

$

$

Currently unavailable

Toro 191-1527

Motor Starter Complete

Note: Not illustrated

$

$

Currently unavailable
