30560 - Toro 52" Rear-Discharge Mower Deck (SN: 003000001 - 003999999) (1983) SEAT KIT NO. 30764 Parts Diagram

52" Rear-Discharge Mower Deck

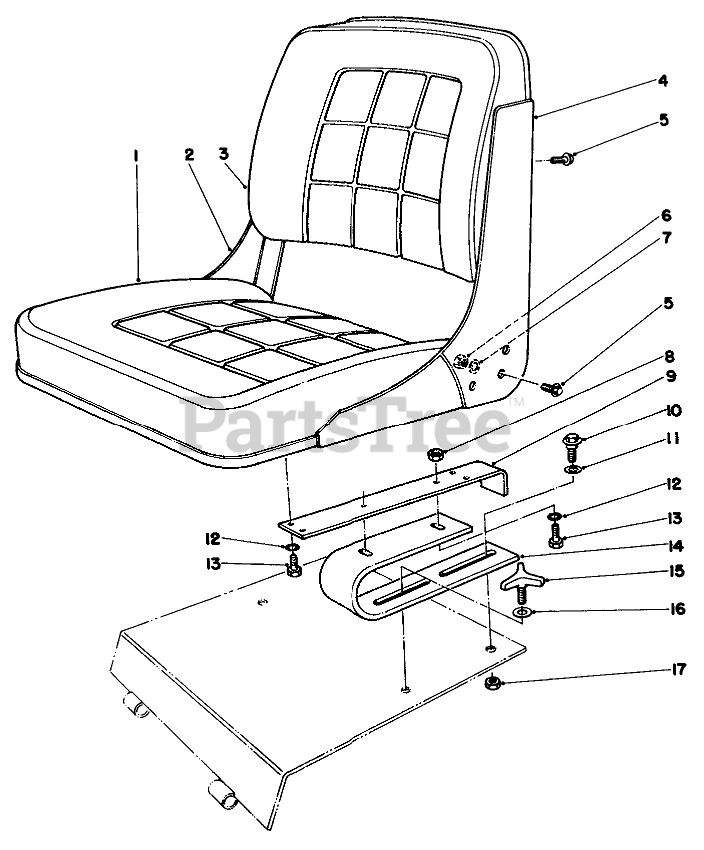

SEAT KIT NO. 30764 Parts Diagram

  • Title

1

Toro 351-59

Seat Cushion
(Superseded to 104-4620)

$

$

Not available

2

Toro 351-64

RH RAIL

$

$

Not available

3

Toro 351-60

Backrest

$

$

Not available

4

Toro 351-65

LH RAIL

$

$

Not available

5

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

6

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

7

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

9

Toro 46-9120

Mount-Seat
(Superseded to 46-9120-03)

$

$

Not available

10

Toro 27-5240

BOLT-SHOULDER

$22.99

$

Usually ships in 3-6 days

0

11

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 32534

Lockwasher

$

$

Currently unavailable

13

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 46-9110

Spring-Seat
(Superseded to 46-9110-03)

$153.99

$

Usually ships in 3-6 days

0

15

Toro 27-4570

KNOB-SEAT

$28.99

$

Usually ships in 3-6 days

0

16

Toro 36-8020

WASHER

$2.49

$

Usually ships in 3-6 days

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

Toro 46-9070

Seat Assy. (Incl. Ref. #1-7)

Note: Not illustrated

$

$

Not available
