30560 - Toro 52" Rear-Discharge Mower Deck (SN: 005000001 - 005999999) (1985) ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4139F ENGINE AIR HOUSING Parts Diagram

52" Rear-Discharge Mower Deck

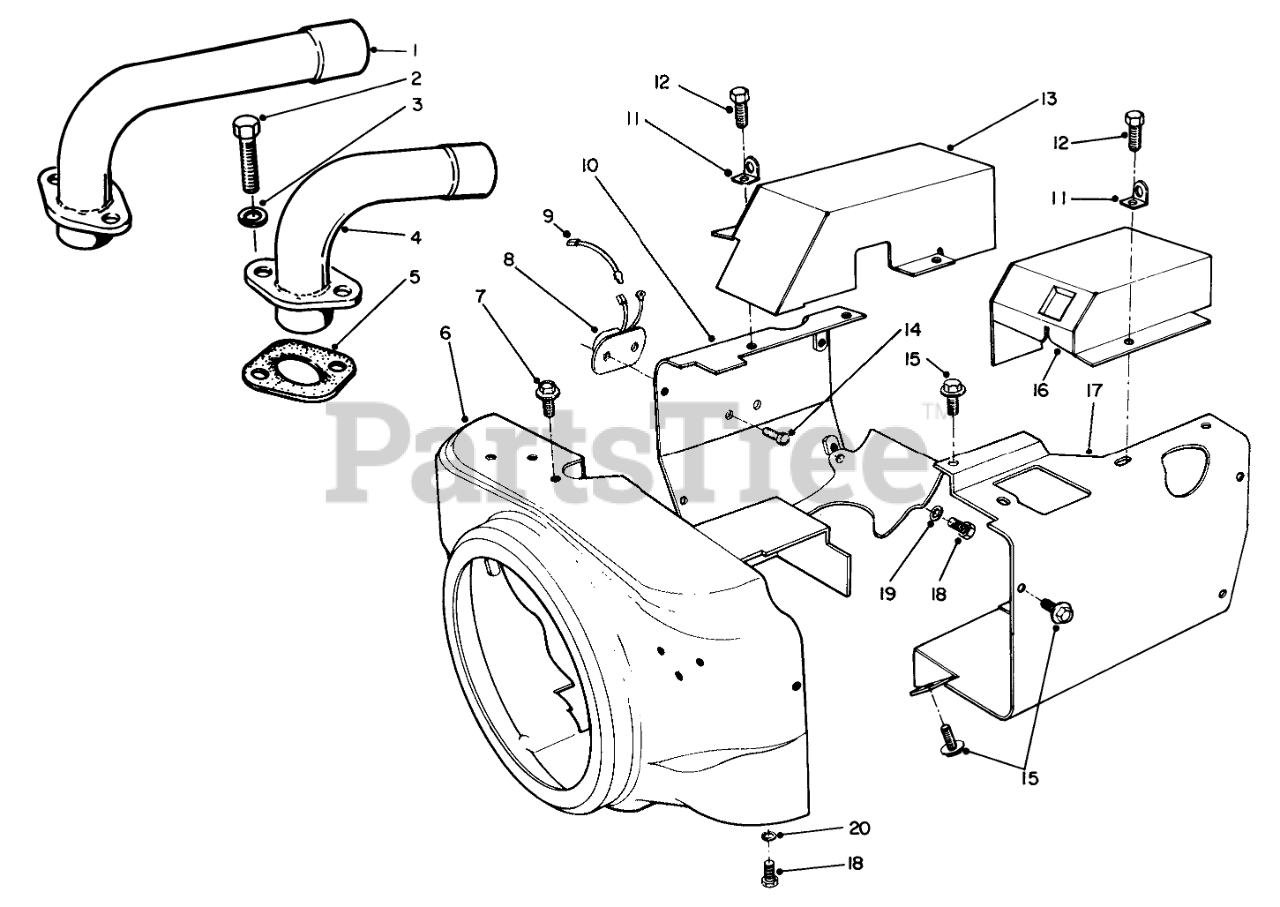

ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4139F ENGINE AIR HOUSING Parts Diagram

  • Title
1

Toro 154-2129

Adapter, Exhaust-Left

$

$

Currently unavailable

2

Toro 800-0026

Screw, Cap-Hex Hd.

$

$

Currently unavailable

3

Toro 850-0045

Washer, Lock-Spring

$

$

Currently unavailable

4

Toro 154-2128

Adapter, Exhaust-Right

$

$

Currently unavailable

5

Toro 154-1725

Gasket, Exhaust

$

$

Currently unavailable

6

Toro 1344285

Housing, Blower

$

$

Currently unavailable

7

Toro 815-0261

Screw, Cap-Hex. Hd.

$

$

Currently unavailable

8

Toro 309-0497

Switch, High Air Temp. Cut Off

$

$

Currently unavailable

9

$

$

Currently unavailable

10

Toro 134-4265

Housing, Cylinder Air-Left Side

$

$

Currently unavailable

11

Toro 403-1523

Bracket, Lifting

$

$

Currently unavailable

12

Toro 815-0508

Screw, Tapping-Hex Hd.

$

$

Currently unavailable

13

Toro 134-4028

Cover, Exhaust-Left

$

$

Currently unavailable

14

Toro 818-0076

Rivet, High Air Temp. Cut Off

$

$

Currently unavailable

15

Toro 821-0008

Screw, Cup Hex Washer Hd.

$

$

Currently unavailable

16

Toro 134-4341

Cover, Exhaust-Right

$

$

Currently unavailable

17

Toro 134-4280

Housing, Cylinder Air-Right Side

$

$

Currently unavailable

18

Toro 815-0290

Screw, Cap-Hex Hd.

$

$

Currently unavailable

19

Toro 526-0021

Washer, Flat

$

$

Currently unavailable

20

Toro 526-0018

Washer, Flat

$

$

Currently unavailable
